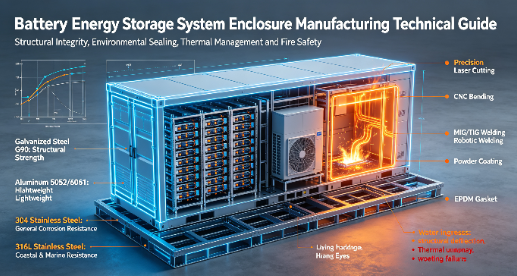

The rapid deployment of Battery Energy Storage Systems (BESS) relies heavily on the physical infrastructure protecting the cells—specifically, the engineered metal enclosures. Hardware engineers and procurement teams must balance strict thermal dynamics, fire safety regulations, and environmental protection requirements with the realities of scalable manufacturing and supply chain reliability. Selecting the right approach to Sheet Metal Fabrication dictates not only the upfront unit production efficiency but the long-term viability, compliance, and field lifespan of energy storage cabinets. A poorly designed enclosure risks thermal events, water ingress, or structural failure under heavy battery loads. By optimizing material selection, joining methods, and surface treatments, manufacturers achieve stringent NEMA ratings while keeping production scalable. This guide explores the engineering fundamentals, material trade-offs, and manufacturing processes required to build robust energy storage enclosures.
Material selection (e.g., Galvanized steel vs. 5052 Aluminum) fundamentally dictates cabinet weight, corrosion resistance, and total production cost in sheet metal fabrication.
Precision in fabrication processes directly impacts the ability to achieve and maintain stringent NEMA/IP ratings, EMI/RFI shielding, and thermal management efficiency.
Engaging in Design for Manufacturing (DFM) during the prototyping phase reduces production bottlenecks, minimizes unnecessary welds, and lowers unit costs at scale.
Partnering with a sheet metal fabrication vendor experienced in UL, IEC, and seismic standards mitigates certification risks and ensures structural integrity under heavy battery loads.
Table of Contents
Battery modules possess incredible mass density. A standard commercial rack often weighs several tons, placing immense static stress on the base frame and vertical supports. The enclosure must support this load without structural deflection. Base frames typically require heavy 10-gauge or 7-gauge steel to prevent warping during lifting and installation. Uprights need strategic bends, such as C-channels or Z-purlins, to maximize column strength without adding excessive weight. Any deflection in the frame compromises door seals and internal racking alignment. Engineers calculate load paths carefully to ensure the cabinet remains rigid under full capacity, utilizing finite element analysis (FEA) to identify potential stress concentrations before the first sheet is cut.
Stationary applications face strict regional building codes. Standards like IEEE 693 and the International Building Code dictate seismic performance for energy infrastructure. Enclosures undergo rigorous shake-table testing to validate these designs. Fabrication must account for dynamic shear forces. Gussets and reinforced weld joints prevent structural shear during transit and earthquakes. Transit vibration also stresses joints, making continuous welding superior to spot welding for structural nodes. Fabricators often integrate heavy-duty shock mounts and vibration isolators directly into the base frame assembly to dampen kinetic energy before it reaches the sensitive battery cells.
Outdoor deployments demand NEMA 3R, 4, or 4X ratings. IP54 or IP65 standards apply globally for dust and water resistance. Water ingress destroys sensitive power electronics instantly. Fabrication tolerances dictate seam gaps and gasket compression ratios. Continuous welding prevents moisture penetration through structural joints. Fabricators integrate rain gutters, drip edges, and specialized labyrinth door channels to direct standing water away from sensitive sealing areas. The application of closed-cell EPDM or silicone gaskets requires precise CNC dispensing to ensure a continuous, watertight seal without weak seams.
Lithium-ion cells generate substantial heat during charge and discharge cycles. Enclosures must integrate active HVAC units, liquid cooling manifolds, or passive ventilation systems. Cutouts for fans, compressors, and ducting must align perfectly with internal components. Structural integrity cannot suffer from large ventilation openings. Louvers require precise punch tooling to maintain ingress protection while maximizing airflow. Thermal management dictates the internal layout and external footprint of the cabinet. Fabricators often weld heavy-duty mounting studs directly to the exterior walls to support the cantilevered weight of side-mounted air conditioning units.
Standards like UL 9540 and UL 9540A govern thermal runaway containment. Enclosures act as the primary physical fire barrier. Designs incorporate blast relief panels on the roof or rear walls. These panels utilize calibrated shear pins or specialized latches to vent explosive gases safely away from personnel at a specific pressure threshold. Internal compartmentalization isolates individual battery strings. Fire-resistant materials, intumescent coatings, and specialized exhaust routing prevent catastrophic spread between adjacent cabinets. The metal gauge must be thick enough to withstand intense localized heat without melting or collapsing.
Remote sites often lack continuous monitoring. Vandalism and theft pose severe risks to distributed energy assets. Cabinets utilize pry-resistant door flanges to deter crowbars and leverage tools. Concealed piano hinges prevent tampering from the exterior. Multi-point locking mechanisms secure the perimeter tightly against the frame, engaging at the top, bottom, and center simultaneously. Heavy-gauge metal deters unauthorized access to high-voltage components, protecting both the equipment and the public. Padlockable handles with integrated security covers provide an additional layer of physical deterrence.
G90 galvanization provides excellent baseline corrosion resistance for outdoor environments. The zinc coating acts as a sacrificial anode, protecting the underlying steel even if the paint scratches. Carbon steel offers exceptionally high tensile strength. It remains highly cost-effective for large-scale, utility-grade deployments. Weight remains the primary trade-off. Heavy steel cabinets complicate site installation and increase freight loads. For stationary applications where weight is secondary to structural rigidity, galvanized steel is the industry standard. Fabricators must manage the zinc fumes during welding, requiring specialized extraction systems and skilled operators.
Aluminum alloys like 5052-H32 and 6061-T6 reduce cabinet weight significantly. Aluminum naturally resists corrosion by forming a protective oxide layer. It performs exceptionally well in standard outdoor environments without heavy coatings. Raw material costs run higher than carbon steel. Welding aluminum requires specialized AC TIG processes or pulse MIG systems, demanding highly skilled operators. This increases labor expenses during assembly. 5052 offers excellent bendability for complex formed parts, while 6061 provides superior machining characteristics for structural extrusions and heavy mounting plates.
Stainless steel serves extreme environments. Coastal, marine, and heavy industrial sites demand maximum durability against salt spray and harsh chemicals. 304 stainless offers good general resistance. 316L contains molybdenum for enhanced pitting resistance in marine settings. The premium material cost restricts its use to highly specialized deployments. Machining and bending stainless steel require higher tonnage press brakes due to its high yield strength and tendency to work-harden. Fabricators must also perform chemical passivation after welding to restore the protective chromium oxide layer at the heat-affected zones.
Powder coating delivers robust UV resistance and physical durability. TGIC polyester powders are standard for outdoor enclosures. E-coating provides uniform coverage in complex geometries and internal channels, often serving as a primer beneath a powder topcoat. Wet paint systems offer specialized chemical resistance for industrial sites. Precision masking remains critical during any finishing process. Grounding paths and EMI/RFI shielding require bare metal contact. Masking errors lead to failed continuity tests and require expensive manual rework. Fabricators use custom high-temperature silicone plugs and die-cut masking tapes to protect these critical zones during the baking process.
Material Type | Tensile Strength | Corrosion Resistance | Weight Profile | Ideal Application |
|---|---|---|---|---|
Galvanized Steel (G90) | High | Moderate to High | Heavy | Standard outdoor utility-scale BESS |
Aluminum (5052/6061) | Moderate | High | Lightweight | Rooftop deployments, weight-restricted sites |
Stainless Steel (304) | High | Very High | Heavy | Industrial facilities, high-humidity zones |
Stainless Steel (316L) | High | Extreme | Heavy | Coastal, marine, and offshore environments |
Component | Typical Gauge (Steel) | Thickness (Inches) | Fabrication Notes |
|---|---|---|---|
Base Frame / Skids | 7 Gauge to 1/4" Plate | 0.179" - 0.250" | Requires heavy tonnage press brakes and multi-pass structural welding. |
Main Structural Uprights | 10 Gauge to 12 Gauge | 0.135" - 0.105" | Formed into C-channels for maximum column strength. |
Exterior Doors & Panels | 14 Gauge to 16 Gauge | 0.075" - 0.060" | Requires stiffener ribs to prevent oil-canning and warping. |
Internal Brackets & Shields | 16 Gauge to 18 Gauge | 0.060" - 0.048" | Easily punched and formed; used for non-load-bearing isolation. |

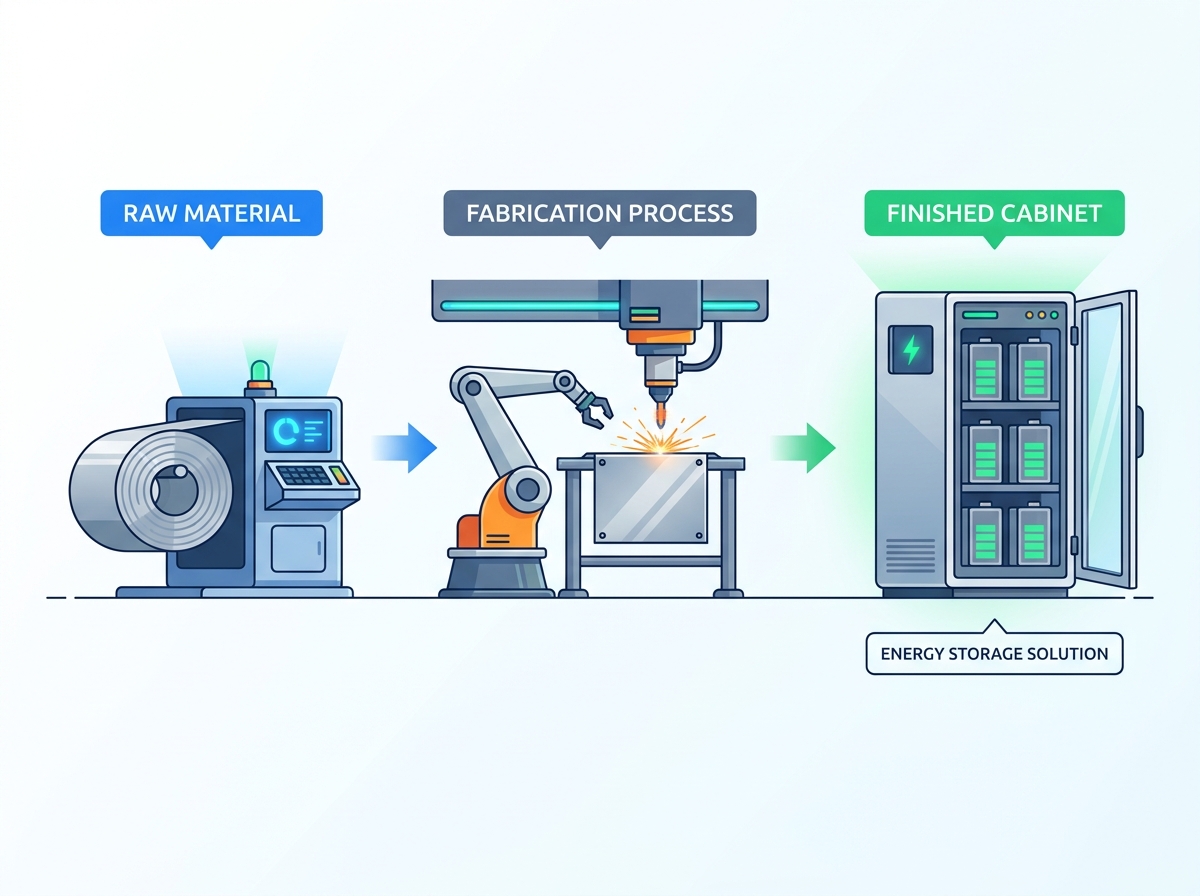

High-wattage fiber lasers cut complex ventilation patterns rapidly and accurately. They slice through thick steel plates with minimal heat distortion. CNC punch presses handle repetitive louvers, standard knockouts, and extruded tapped holes efficiently. Tight tolerances ensure I/O ports align perfectly with internal electronics. Clean cuts reduce secondary deburring operations, speeding up the production line. Modern laser systems utilize nitrogen assist gas to prevent edge oxidation, ensuring paint adheres properly without requiring secondary edge grinding. Micro-joints keep small parts attached to the main sheet during cutting, preventing them from falling through the laser bed and causing machine crashes.
Advanced press brakes form intricate profiles from flat sheets. Strategic bending reduces the total number of individual parts required for an enclosure. Fewer parts mean fewer welds. Eliminating welds increases overall structural rigidity. It also removes potential points of water ingress. Precision forming ensures doors sit flush against frames, allowing gaskets to compress evenly across the entire perimeter. Operators must account for material springback and calculate the exact K-factor to achieve precise bend deductions. Multi-axis CNC backgauges allow operators to form complex, asymmetrical parts in a single handling step, drastically reducing labor time.
MIG welding handles heavy structural base frames efficiently, providing deep penetration on thick plates. TIG welding provides precise, clean joints for aluminum and stainless steel components, offering superior aesthetic finishes on visible exterior corners. Robotic welding cells deliver consistent, continuous seams for high-volume production runs, eliminating human fatigue and ensuring repeatable penetration. Leak-proof welds remain non-negotiable for NEMA 4 and IP65 enclosures. Welders must grind exterior seams flush to ensure powder coating adheres smoothly without pinholes. Dye penetrant testing is frequently used to verify the integrity of critical watertight seams before the cabinet moves to the paint line.
Fully populated cabinets require heavy machinery for site placement. Fabricators integrate structural forklift pockets directly into the base frame, using heavy-wall rectangular tubing. Crane lifting eyes attach to reinforced roof channels or corner posts. These rigging points must withstand dynamic lifting loads without deforming the main cabinet structure. Engineers specify full-penetration welds for all lifting nodes to prevent catastrophic failure during installation. Non-destructive testing (NDT), such as magnetic particle inspection or ultrasonic testing, is often mandated for these critical welds to ensure no subsurface cracks exist.
Enclosures require extensive hardware integration before shipping. Fabricators install continuous piano hinges to support heavy doors over decades of use. Multi-point locking rods require precise alignment to engage smoothly without binding. EMI/RFI shielding gaskets sit in engineered channels to prevent electromagnetic interference from escaping the cabinet. High-voltage grounding studs are welded directly to the frame, ensuring safe electrical bonding across all panels. Operators use specialized pneumatic presses to insert self-clinching PEM nuts and standoffs, providing robust threaded connections in thin sheet metal without the need for tapping.
Bespoke designs fit specific battery form factors perfectly. They require significant upfront engineering and unique tooling setups. Modular architectures offer superior scalability. Standardized frames accept different panel configurations and internal racking systems. Modular systems adapt faster to changing battery dimensions. They allow manufacturers to scale production without redesigning the entire enclosure for every new product generation. Baying kits allow multiple modular cabinets to bolt together in the field, creating continuous lineups that share common busbars and communication routing.
CAD/CAM software nests flat patterns on raw sheets before cutting. High nesting efficiency reduces scrap metal. Optimizing sheet utilization directly lowers raw material expenses. Minor design tweaks, such as adjusting a flange length by a few millimeters, often yield massive improvements in material efficiency. DFM engineers analyze these patterns to ensure maximum yield per sheet. They also consider grain direction constraints for materials like stainless steel or aluminum, ensuring bends run perpendicular to the grain to prevent cracking during the forming process.
Low-volume production relies on soft tooling. Lasers and press brakes require minimal physical setup. High-volume runs justify hard tooling investments. Stamping dies process parts in seconds rather than minutes. Engineers analyze projected annual production volumes to choose the right tooling strategy. Premature investment in hard tooling traps capital if the cabinet design changes. For mid-volume runs, fabricators might invest in custom press brake dies to form complex geometries in a single hit, bridging the gap between slow manual bending and expensive progressive stamping dies.
Over-engineering drives up manufacturing expenses rapidly. Specifying unnecessarily tight tolerances on non-critical dimensions slows down production. It increases scrap rates when parts fail inspection for arbitrary reasons. Standard sheet metal tolerances typically hover around +/- 0.010 inches for punched features and +/- 0.030 inches for bent dimensions. Engineers should apply tight tolerances only where components interface, seal, or mount. Relaxing tolerances on cosmetic or non-functional dimensions lowers fabrication costs and shortens lead times. Performing a thorough tolerance stack-up analysis ensures that individual part variations do not prevent final assembly.
Initial CAD Review: Fabricator engineers analyze the 3D models to identify impossible bends, tool collisions, or inaccessible weld joints.
Material Optimization: Flat patterns are generated and nested to check sheet yield. Flange lengths may be adjusted to fit standard sheet sizes (e.g., 48" x 96").
Hardware Standardization: Custom fasteners are replaced with standard self-clinching hardware to reduce supply chain lead times.
Weld Reduction: Engineers look for opportunities to replace welded corners with bent flanges, reducing labor and improving structural integrity.
Prototyping: A single first-article unit is built to validate the DFM changes before locking in the final production prints.
New Product Introduction (NPI) requires manufacturing agility. Beta units must reach testing facilities quickly. UL and ETL certifications demand physical prototypes for thermal and structural evaluation. Fast turnaround prevents project delays. Engineers lock in production tooling only after successful certification. A partner capable of rapid prototyping accelerates the entire product development lifecycle. Look for fabricators with dedicated NPI cells that operate independently from the main production line, ensuring prototype builds do not disrupt high-volume manufacturing schedules.
A vendor must scale seamlessly from prototypes to full production. Rapid prototyping skills do not always translate to volume manufacturing. Assess the facility footprint. Check the number of active press brakes, laser cutters, and robotic welding stations. Repeatable production runs require dedicated floor space. Sheet Metal Fabrication partners must demonstrate the bandwidth to handle sudden spikes in order volume. Automated material handling towers connected to laser cutters allow for lights-out manufacturing, significantly increasing throughput without adding labor shifts.
ISO 9001 certification establishes baseline quality management. First Article Inspection (FAI) verifies initial parts meet all print specifications before the full run begins. The Production Part Approval Process (PPAP) ensures batch-to-batch consistency over years of manufacturing. Traceability tracks raw material lots to specific serial numbers via Material Test Reports (MTRs). This data proves invaluable during field investigations or warranty claims. Advanced fabricators use digital traveler systems and coordinate measuring machines (CMM) to document dimensional accuracy at every step of the routing.
Raw metal markets experience high price volatility. Evaluate the fabricator's sourcing networks. Inventory management systems like Kanban or Just-In-Time prevent stockouts. Strong mill relationships mitigate sudden material shortages. A fabricator with diverse supply chains shields your production line from regional disruptions and unexpected tariff impacts. Dual-sourcing strategies for critical hardware and powder coat powders ensure that a single supplier failure does not halt the entire assembly line.
Bare metal enclosures require further assembly. Select partners capable of electromechanical integration. Advanced vendors install HVAC units, cooling fans, and thermal insulation directly on the fabrication floor. They mount DIN rails, wire harnesses, and copper busbars. Direct-to-site logistics simplify the final deployment phase, allowing fully assembled cabinets to ship directly to the solar field or substation. Fabricators with in-house UL508A panel shops can even wire the low-voltage control systems, providing a true turnkey solution.
Initiate a Non-Disclosure Agreement (NDA) with shortlisted fabricators to protect intellectual property before sharing CAD files.
Request a comprehensive DFM review of existing enclosure models to identify manufacturing bottlenecks and material yield improvements.
Schedule a facility audit to verify quality control processes, physical production capacity, and equipment modernization.
Order a first-article prototype to validate structural integrity, gasket compression, and thermal management performance.
A: Powder-coated galvanized steel remains the standard for structural strength. G90 galvanization provides excellent baseline protection. Aluminum or stainless steel serve best in corrosive, coastal, or marine environments where natural rust resistance outweighs the higher raw material expense.
A: Precision bending reduces the number of separate panels, minimizing seams. Continuous welding seals the remaining joints. Accurate CNC punching ensures gaskets seat perfectly around doors and I/O ports. Together, these processes prevent water and dust ingress, securing high NEMA and IP ratings.
A: Prototyping typically requires 3 to 6 weeks, depending on design complexity and material availability. Transitioning to full production takes an additional 8 to 12 weeks. This allows time for UL testing, finalizing production tooling, and establishing quality control fixtures.
A: Design for Manufacturing standardizes bend radii, allowing operators to use a single press brake setup. It reduces total weld inches by utilizing smart folding techniques. DFM also optimizes CAD nesting to maximize material yield and simplifies hardware assembly.
A: Fabricators typically follow AWS D1.1 for structural steel and AWS D1.2 for aluminum. Using certified welders ensures that load-bearing joints, base frames, and critical lifting points can safely support the extreme weight of lithium-ion battery racks.
A: Fabricators weld dedicated high-voltage grounding studs directly to the main structural frame. During the powder coating phase, operators apply precision masking to these studs and specific contact points. This ensures bare metal-to-metal contact for safe electrical bonding.
A: Yes. Advanced fabricators offer turnkey electromechanical assembly. They install active HVAC units, passive ventilation fans, ducting, and thermal insulation prior to shipment. This value-added service reduces final assembly time and ensures cooling components integrate seamlessly.
