Wall-Mounted vs Floor-Standing Enclosures

Space Optimization and Installation Guide for Battery Storage

DINGPRECISION | Dingyi Industrial Technology | May 2026

1. Introduction

When planning a battery energy storage installation, one of the first decisions is the physical enclosure format: wall-mounted or floor-standing. This choice affects everything from space utilization and structural loading to installation complexity, maintenance access, and compliance with local building codes. Making the wrong choice can lead to costly retrofits or underutilized space.

Wall-mounted enclosures offer compact, vertical space utilization ideal for residential garages, commercial utility rooms, and space-constrained urban installations. Floor-standing enclosures provide higher capacity, modular scalability, and easier service access, making them the preferred choice for commercial and utility-scale systems. Each format has distinct engineering requirements for structural support, ventilation, cable routing, and seismic safety.

At DINGPRECISION, we manufacture both wall-mounted and floor-standing battery enclosures for installations ranging from 5kWh residential systems to 1MWh+ commercial configurations. Our vertically integrated sheet metal fabrication capability allows us to optimize each design for its intended installation environment while maintaining consistent quality across formats.

In this guide, we compare wall-mounted and floor-standing battery enclosures across every relevant dimension — space requirements, installation complexity, load capacity, ventilation, maintenance, and cost — providing clear criteria for selecting the right format for your project.

2. Wall-Mounted Battery Enclosures

Wall-mounted enclosures are designed to be attached directly to load-bearing walls or structural frames. They offer the advantage of keeping the battery system off the floor, freeing valuable floor space and providing a clean, organized installation appearance.

2.1 Key Design Characteristics

Compact footprint: Typical depth of 200-400mm, width 600-1200mm, height 800-1800mm

Capacity range: 5-30kWh typical (residential to small commercial)

Weight distribution: Must be supported by wall structure (typically 50-200 kg mounted weight)

Ventilation: Front/side intake, top exhaust — natural convection sufficient for most residential systems

Cable routing: Conduit connections typically enter from bottom or rear

Access: Front-opening door for module access and maintenance

2.2 Advantages

Space efficiency: Zero floor footprint, maximizes usable floor space

Natural airflow: Elevated position promotes better natural convection cooling

Flood safety: Off-ground design protects against minor flooding events

Aesthetic integration: Slim profile blends with wall surfaces

Simpler permitting: Lighter weight and smaller footprint often reduce structural permit requirements

2.3 Limitations

Weight limit: Wall structure must support mounted weight

Capacity ceiling: ~30kWh practical max

Installation complexity: Requires wall anchoring into studs or structural reinforcement

Vibration sensitivity: Wall mounting transmits building vibrations to battery modules

Service access: Working at height may require platforms for taller units

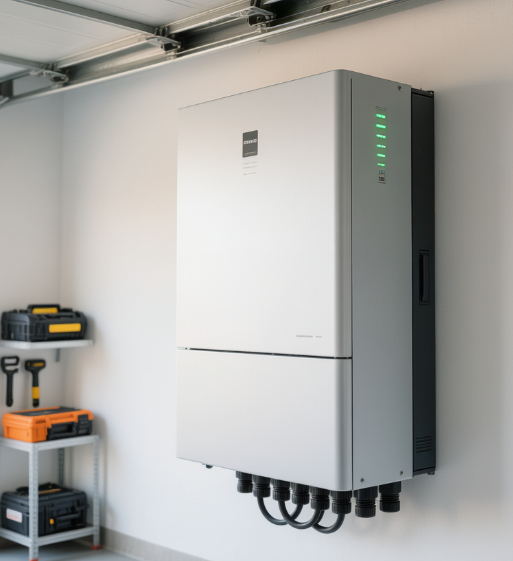

Figure 1: DINGPRECISION wall-mounted battery enclosure — compact slim design for residential and commercial indoor installations

For a comprehensive overview of enclosure design principles, see our complete energy storage enclosure design guide (Article #1).

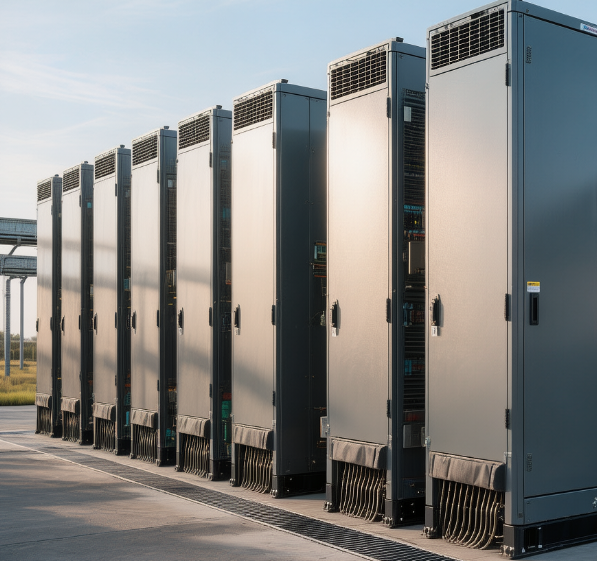

3. Floor-Standing Battery Enclosures

Floor-standing enclosures are self-supporting cabinets that rest directly on the floor or a raised base. They offer larger internal volume, higher weight capacity, and modular expandability compared to wall-mounted designs.

3.1 Key Design Characteristics

Substantial footprint: Typical depth 600-1000mm, width 600-2400mm, height 1800-2200mm

Capacity range: 30-500kWh per cabinet, scalable to MWh+ through paralleling

Weight distribution: Directly floor-bearing, typically 500-2000 kg per cabinet

Ventilation: Multiple configurations — front/rear intake, roof exhaust, or forced air

Cable routing: Bottom-entry cable trench or overhead cable tray options

Access: Front and rear doors for full module access

3.2 Advantages

Higher capacity: Larger internal volume supports more battery modules

Modular scalability: Multiple cabinets side-by-side without wall constraints

Heavy load support: Floor bearing capacity exceeds wall mounting limits

Better service access: Full front/rear door access at ground level

Seismic stability: Optimal for earthquake-prone regions with proper anchoring

Easier cable management: Under-floor cable trench integration

3.3 Limitations

Floor space consumption: Significant floor area for multi-cabinet configs

Higher installation cost: May require reinforced flooring

Less flexible relocation: Heavy cabinets need specialized equipment

Flood risk: Floor-level electronics vulnerable to water ingress

Larger thermal mass: Greater internal volume needs more air circulation

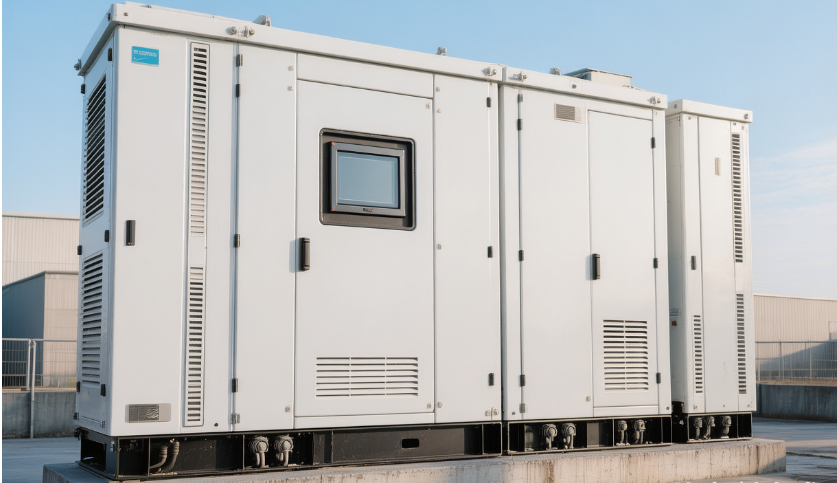

Figure 2: Floor-standing charging pile enclosure — heavy-duty design for outdoor commercial applications with cable trench integration

Proper ventilation design is critical for both enclosure formats. Learn more about battery cabinet thermal management and ventilation design best practices (Article #2).

4. Head-to-Head Comparison

The IP protection rating you choose significantly impacts both enclosure formats. Compare IP54 vs IP55 protection ratings for battery enclosures (Article #3) to make an informed decision.

5. Application-Specific Recommendations

Selecting the right enclosure format depends on the installation environment, capacity requirements, and local regulations.

5.1 Key Decision Factors

Available floor space: If floor space is the constraint, choose wall-mounted

Total capacity required: Above 30kWh, floor-standing is usually more practical

Structural capability: Verify wall load capacity before specifying wall-mounted

Future expansion: If capacity will grow, start with modular floor-standing

Local building codes: Some jurisdictions restrict wall-mounted battery weight to <100 kg

Seismic zone: Floor-standing with proper anchoring outperforms wall-mounted

Flood risk: Wall-mounted provides inherent flood protection

Surface finish selection also affects enclosure longevity. Explore powder coating vs liquid painting for battery enclosures (Article #4).

6. Structural Design Considerations

Both enclosure formats require careful structural engineering to ensure safety, durability, and compliance with relevant building codes.

6.1 Wall-Mounted Structural Design

Mounting Bracket: Heavy-duty steel mounting brackets with 4-6 anchor points. Designed for wood studs (16/24-inch centers) or concrete/masonry walls.

Load Distribution: Internal battery module shelves direct load paths to the wall-mounted bracket rather than the enclosure shell.

Safety Factor: All designs incorporate a 5:1 safety factor on mounting hardware.

6.2 Floor-Standing Structural Design

Base Frame: Reinforced steel base frame with integrated leveling feet and fork-lift access.

Floor Anchoring: M12 or M16 expansion bolts at 4-6 points. Additional corner brackets for seismic zones.

Side-by-Side Linking: Inter-cabinet linking brackets create rigid structural assembly for multi-cabinet installations.

7. Manufacturing Both Formats at DINGPRECISION

Manufacturing wall-mounted and floor-standing enclosures requires different production approaches. Our 15,000 sqm facility handles the full range of enclosure sizes and structural requirements.

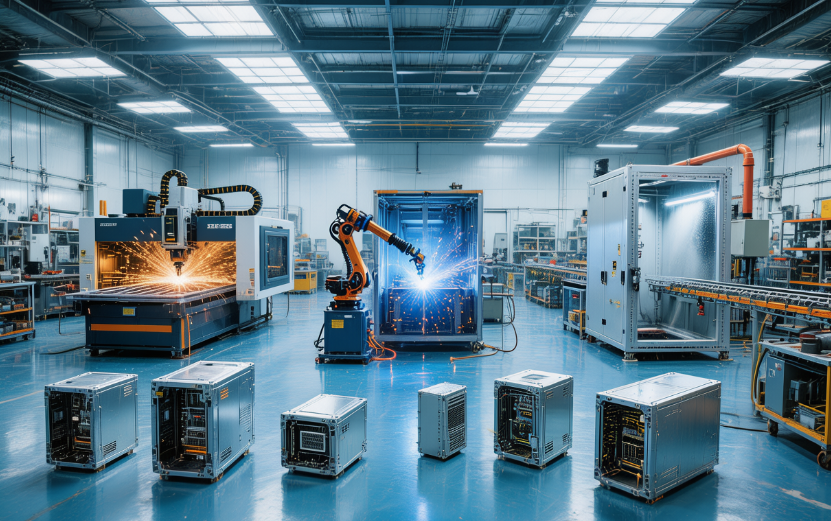

Figure 3: DINGPRECISION comprehensive precision manufacturing capabilities — from compact wall-mounted to large floor-standing enclosures

Laser Cutting: 15 machines at 6000W, 0.8mm to 6mm sheet metal, +/- 0.1mm precision. Wall-mounted uses 1.2-2.0mm; floor-standing uses 2.0-3.0mm.

CNC Bending: 20 machines including 8.4m capacity. Wall-mounted benefits from tighter bend radii (+/- 0.5 deg).

Welding: 4 robotic welding stations. All structural welds undergo visual and dye penetrant inspection.

Surface Finishing: 3 electrostatic powder coating lines. Delta-E <= 1.0 color control.

Figure 4: Custom sheet metal enclosure — demonstrating DINGPRECISION ability to manufacture precise wall-mounted enclosure designs

To understand our full production workflow, explore the complete sheet metal fabrication process (Article #6).

8. Conclusion

The choice between wall-mounted and floor-standing battery enclosures is fundamentally driven by the application requirements: capacity, available space, structural constraints, and installation environment. Wall-mounted enclosures excel in residential and space-constrained installations up to 30kWh. Floor-standing enclosures are the preferred choice for commercial and utility-scale systems above 30kWh.

At DINGPRECISION, we manufacture both formats with the same commitment to precision, quality, and compliance. With our vertically integrated manufacturing, ISO9001/ISO14001/ISO45001 certified quality systems, and experience across hundreds of battery storage installations, we deliver enclosures that are built to perform — regardless of which format you choose.
