Battery Enclosure Buyer Guide

How to Select and Specify the Right Enclosure for Your Project

DINGPRECISION | Dingyi Industrial Technology | May 2026

1. Introduction

Selecting the right battery enclosure is one of the most consequential decisions in any energy storage project. The enclosure protects the battery from environmental hazards, provides thermal management, ensures electrical safety, and determines the physical footprint of the installation. A well-specified enclosure extends system life, simplifies maintenance, and supports regulatory compliance.

This buyer guide distills DINGPRECISION experience manufacturing over 15,000 custom enclosures into a practical framework for specification and selection. Whether you are a system integrator, equipment OEM, or end-user, this guide helps you ask the right questions and make informed decisions.

For a comprehensive overview of enclosure design principles, see our .

2. Step 1: Define Your Requirements

Before evaluating enclosure options, establish clear requirements across these dimensions:

3. Step 2: Choose Enclosure Format

Refer to Article 5 of this series for detailed comparison. Quick decision matrix:

For the complete wall-mounted vs. floor-standing comparison, see our .

4. Step 3: Select Material and Finish

Material selection affects weight, corrosion resistance, cost, and structural performance.

Standard indoor: SGCC + powder coating, 60-120 microns, standard RAL colors

Outdoor: SGCC + powder coating with UV-resistant clear coat

Coastal/harsh: Stainless steel 304 or SGCC with upgraded zinc-rich primer

Portable: Aluminum 5052 with powder coating

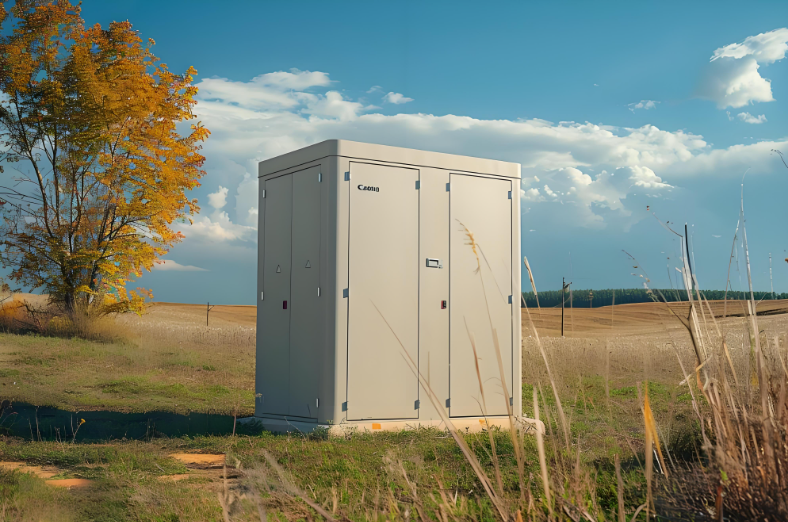

Figure 1: Standard SGCC enclosure with white powder coating

For a detailed comparison of surface finishing options, see our .

5. Step 4: Determine IP Rating

IP rating is determined by the installation environment:

IP65/IP66 enclosures require careful design of ventilation pathways to maintain protection while allowing adequate airflow. Baffled ventilation systems and pressure-equalization valves are essential for achieving both high IP ratings and effective thermal management.

For IP54 protection ratings explained in detail, see our .

6. Step 5: Thermal Management

Thermal management is the single most critical enclosure subsystem for battery safety and longevity. Inadequate cooling leads to accelerated degradation, increased warranty risk, and in extreme cases, thermal runaway propagation.

Key thermal management considerations:

• Battery heat generation: Typically 2-5W per kWh at rest, up to 20-50W per kWh during charge/discharge cycles

• Maximum operating temperature: Most lithium-ion cells require enclosure internal temperature below 40-45°C

• Temperature uniformity: Maintain cell-to-cell temperature differential below 5°C

• Ventilation sizing: Minimum 2-3 air changes per hour for natural convection; forced air systems sized for 5-10 ACH

• Fire containment: Compartmentalized designs with fire-rated barriers between battery modules

• Monitoring: Temperature sensors at multiple points within the enclosure

For detailed battery cabinet thermal management best practices, see our .

7. Step 6: Specify Manufacturing

When engaging a manufacturer, the following specifications ensure accurate quotation and production:

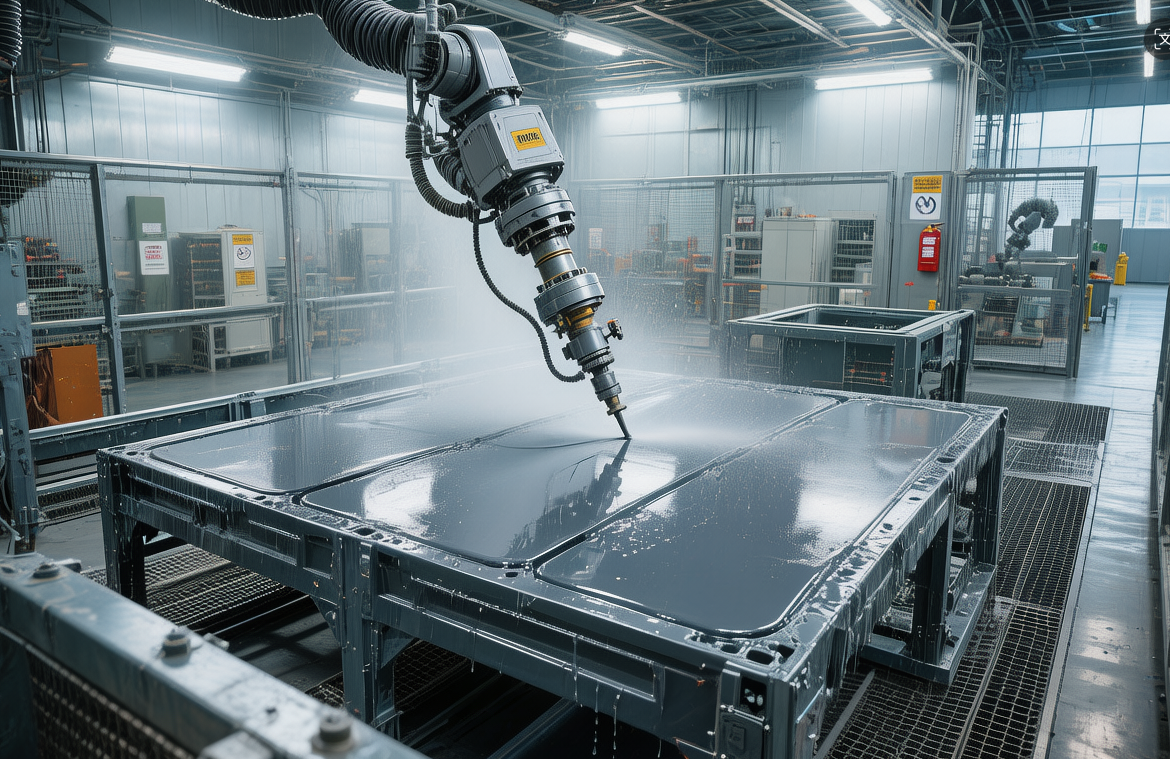

Figure 2: CNC precision manufacturing process

For the complete 7-step manufacturing process, see our .

8. Step 7: Verify Compliance

Energy storage enclosures must comply with multiple safety standards depending on the target market and application:

Your manufacturer should provide test reports and certificates for all applicable standards. Request certificates at the RFQ stage to avoid delays during production.

Figure 3: Safety testing and quality verification

For detailed safety standards compliance requirements, see our .

9. Conclusion

Selecting the right battery enclosure requires systematic evaluation across seven dimensions: requirements definition, format selection, material specification, IP rating, thermal management, manufacturing specification, and compliance verification. Each decision influences the others, and trade-offs are inevitable.

The most successful projects start with clear requirements documents, engage manufacturers early in the design process, and maintain open communication throughout production. DINGPRECISION engineering team is available to support specification development, design optimization, and prototype validation.

Frequently Asked Questions

Q: How to choose between wall-mounted and floor-standing?

A: Wall-mounted for under 30kWh in space-constrained locations like garages. Floor-standing for over 30kWh or when modular expansion is planned. Key factors: capacity, floor space, structural load, and future expansion needs.

Q: What to include in an enclosure RFQ?

A: 3D model (STEP/IGES) or 2D drawing, material specs (grade and thickness), quantity, IP rating requirement, RAL color code, target delivery date, shipping destination, and any special requirements like custom packaging or certification needs.

Q: What is typical enclosure lead time?

A: 15-25 working days from design approval. Simple enclosures with standard finishes: 10-15 days. Complex multi-compartment designs: 20-30 days. Prototypes (1-5 units) can often be expedited.

Q: How much does a custom enclosure cost?

A: Simple residential enclosures (wall-mounted, 5-15 kWh): $200-800/unit at production volume. Commercial floor-standing enclosures (50-200 kWh): $1,000-5,000/unit. Request a detailed quote with your specifications for accurate pricing.

Q: What certifications should I look for in a manufacturer?

A: Look for ISO9001 (quality), ISO14001 (environmental), and ISO45001 (safety) certification. Verify laser precision (+/-0.1mm), bending accuracy (+/-0.5 deg), in-house surface finishing with color control (Delta-E<=1.0), and salt spray testing to 1,000+ hours.
