A Supplier-Readiness Reference for IEC 62933-5-2:2026 and EU 2026/1482
White Paper · Foshan DINGPRECISION Technology Co., Ltd. · September 2026
The EU market-access rules for liquid-cooled battery energy storage systems (BESS) are tightening sharply. From 1 October 2026, Commission Implementing Regulation (EU) 2026/1482 requires IEC 62933-5-2 type certification for imported liquid-cooled BESS, replacing the previous CE + EN 62619 framework.
This shift moves compliance from the battery cell alone to the whole system — including the sheet metal enclosure and the liquid-cooling piping. For integrators, the practical question is no longer "is the cell certified," but "can my enclosure and piping suppliers prove the new requirements."
This guide maps the new obligations to the enclosure and piping supply chain, and sets out what a qualified supplier must demonstrate.
Instrument | What It Changes | Effective |
|---|---|---|
IEC 62933-5-2:2026 | Safety requirements for liquid-cooled EESS. Adds 7 mandatory clauses: thermal-runaway propagation blocking, coolant conductivity limits, multi-point leakage pressure-decay verification, and more. | Published 2026 |
(EU) 2026/1482 | Requires IEC 62933-5-2 type certification for imported liquid-cooled BESS; replaces CE + EN 62619. | 1 Oct 2026 |
UL 9540A | Referenced for single-cluster thermal-runaway isolation. | In force |
EU Battery Regulation (EU) 2023/1542 | Baseline durability and safety obligations across the value chain. | Phased |
The consistent theme: liquid cooling is no longer a thermal-optimization option — it is a safety-critical subsystem with verifiable, quantified controls.
IEC 62933-5-2:2026 introduces maximum electrical-conductivity limits for coolants. This pushes galvanized steel pipe and PVC out of liquid/gas circuits — both bring corrosion and contamination risks. 304 stainless steel and aluminum tubing are the preferred materials: stable conductivity, corrosion resistance, and compatibility with modern coolant formulations.
The standard requires multi-point leakage pressure-decay verification. A credible supplier validates every tube-to-tube and tube-to-plate joint with helium-based leak detection, not just a visual inspection. Leak paths in a cooling circuit are a thermal-runaway enabler, not a maintenance inconvenience.
Cooling-circuit joints are typically TIG-welded. The critical control points are:
Pre-weld inner-wall cleaning — residual oils or particulates cause porosity and leak points
Post-weld purification — removes weld oxides and debris from the fluid path
Consistent heat input — limits distortion and stress concentration at the joint
Liquid-cooling components are safety-critical. Laser marking for part-level identification supports the traceability the new framework expects across the product lifecycle.
Structural integrity — the enclosure carries battery modules, coolant manifolds, and fire-containment loads. Dimensional accuracy (laser cutting ±0.1 mm, CNC bending ±0.5°; equipment-rated) reduces fit-up gaps that stress welds.
Corrosion protection — outdoor BESS enclosures face humidity, temperature cycling, and salt air. Pretreatment (degreasing + zirconium conversion coating) before powder or liquid coating, validated by neutral salt spray testing per GB/T 1771, is the baseline. (See companion white paper: Outdoor BESS Enclosure Corrosion-Protection Guide.)
Thermal-management support — enclosure design must accommodate coolant routing, leak containment, and airflow without compromising the fire-containment boundary.
New Requirement | What DINGPRECISION Demonstrates |
|---|---|
Coolant conductivity limits | 304 stainless steel / aluminum tubing expertise; material selection aligned with coolant chemistry |
Multi-point leak verification | In-house helium-based leak-detection setup (self-built), applied to tube-to-tube and tube-to-plate joints |
Welding quality | TIG welding with pre-weld cleaning and post-weld purification |
Traceability | Laser marking for part-level identification |
Enclosure structural accuracy | Laser cutting ±0.1 mm, CNC bending ±0.5° (equipment-rated) |
Corrosion protection | Degreasing + zirconium conversion coating, neutral salt spray per GB/T 1771 |
Note: DINGPRECISION is a sheet metal and piping fabrication partner; IEC 62933-5-2 type certification is held by the BESS integrator. The supplier's role is to provide the fabrication evidence the certification route requires.
The IEC 62933-5-2 / EU 2026/1482 transition rewards integrators whose enclosure and piping suppliers can already produce leak-tight, traceable, corrosion-resistant hardware. The certification route is long; supplier evidence should be gathered early.
Download this guide and contact our engineering team to review your liquid-cooled BESS enclosure and piping requirements against the new obligations.
Contact: niewenhui@dingprecision.com · +86-757-26630312 · http://www.dingprecision.com
IEC 62933-5-2:2026 — Electrical energy storage systems, safety requirements for liquid-cooled systems
Commission Implementing Regulation (EU) 2026/1482
UL 9540A — Test method for evaluating thermal runaway fire propagation
Regulation (EU) 2023/1542 — concerning batteries and waste batteries
GB/T 1771 — Paints and varnishes, determination of resistance to neutral salt spray
For web publishing, the following on-page SEO elements are recommended:
Meta Title (≈55 chars):
Liquid-Cooled BESS Compliance Guide | IEC 62933-5-2 | DINGPRECISION
Meta Description (≈155 chars):
EU 2026/1482 requires IEC 62933-5-2 certification for liquid-cooled BESS from Oct 2026. Learn what enclosure & piping suppliers must prove. Free white paper.
Primary Keywords: IEC 62933-5-2 compliance, liquid-cooled BESS enclosure, EU 2026/1482, BESS piping certification, sheet metal BESS enclosure, helium leak detection BESS, thermal runaway prevention
Schema Markup (JSON-LD) recommended:
Article with datePublished, author (DINGPRECISION), publisher
FAQPage for Q&A sections on piping compliance
Organization with sameAs links to company profiles
BreadcrumbList for site hierarchy
Image Alt Text Example:

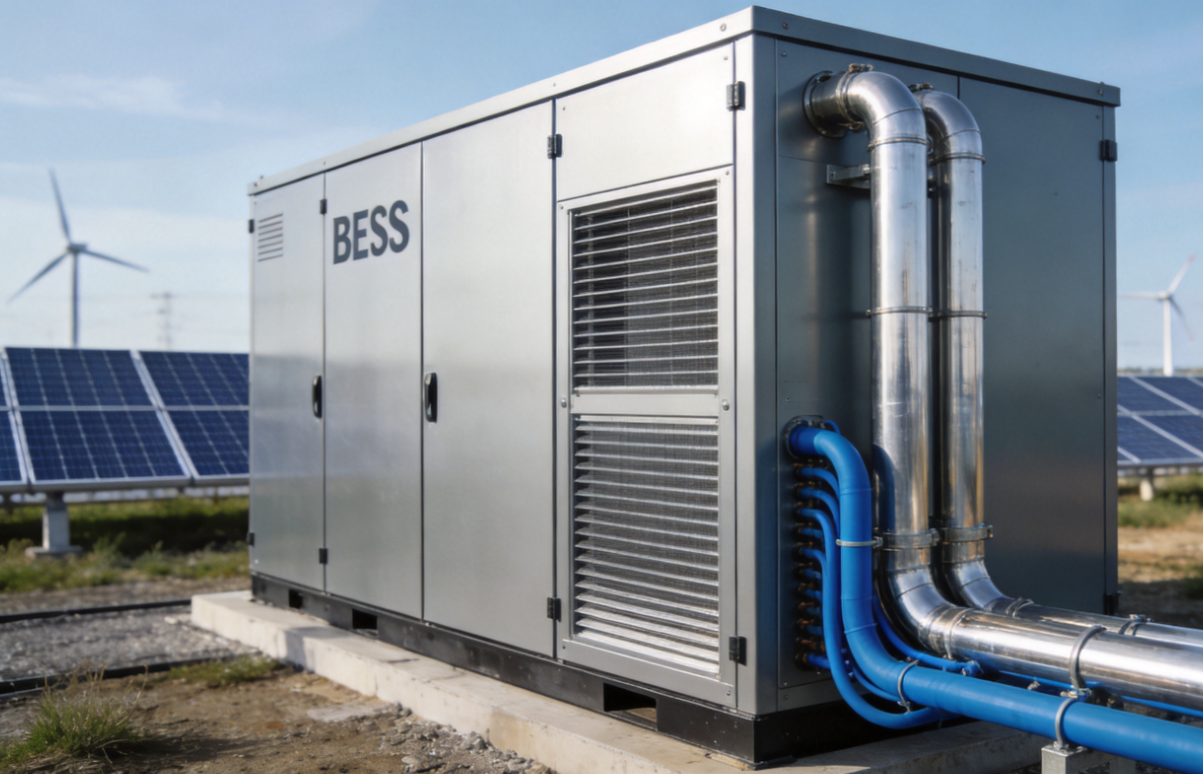

Liquid-cooled BESS sheet metal enclosure with stainless steel piping — precision engineering for IEC 62933-5-2 compliance in outdoor energy storage applications.
