Safety Standards for Energy Storage Enclosures

IEC, UL, NFPA, and GB/T Compliance Guide

DINGPRECISION | Dingyi Industrial Technology | May 2026

1. Introduction

Safety standards are the backbone of reliable energy storage system design. For battery enclosures, compliance with international standards is not optional — it directly affects certification, insurance coverage, regulatory approval, and liability protection. Navigating the complex landscape of IEC, UL, NFPA, and GB/T standards can be challenging, but understanding key requirements for enclosure design is essential for any energy storage project.

Different markets require different certifications. North America demands UL compliance, Europe follows IEC standards, Australia and New Zealand use AS/NZS protocols, and China mandates GB/T compliance. An enclosure designed for one market may not meet another market's requirements.

At DINGPRECISION, we manufacture enclosures complying with the full spectrum of safety standards. Our ISO9001/ISO14001/ISO45001 certified facilit

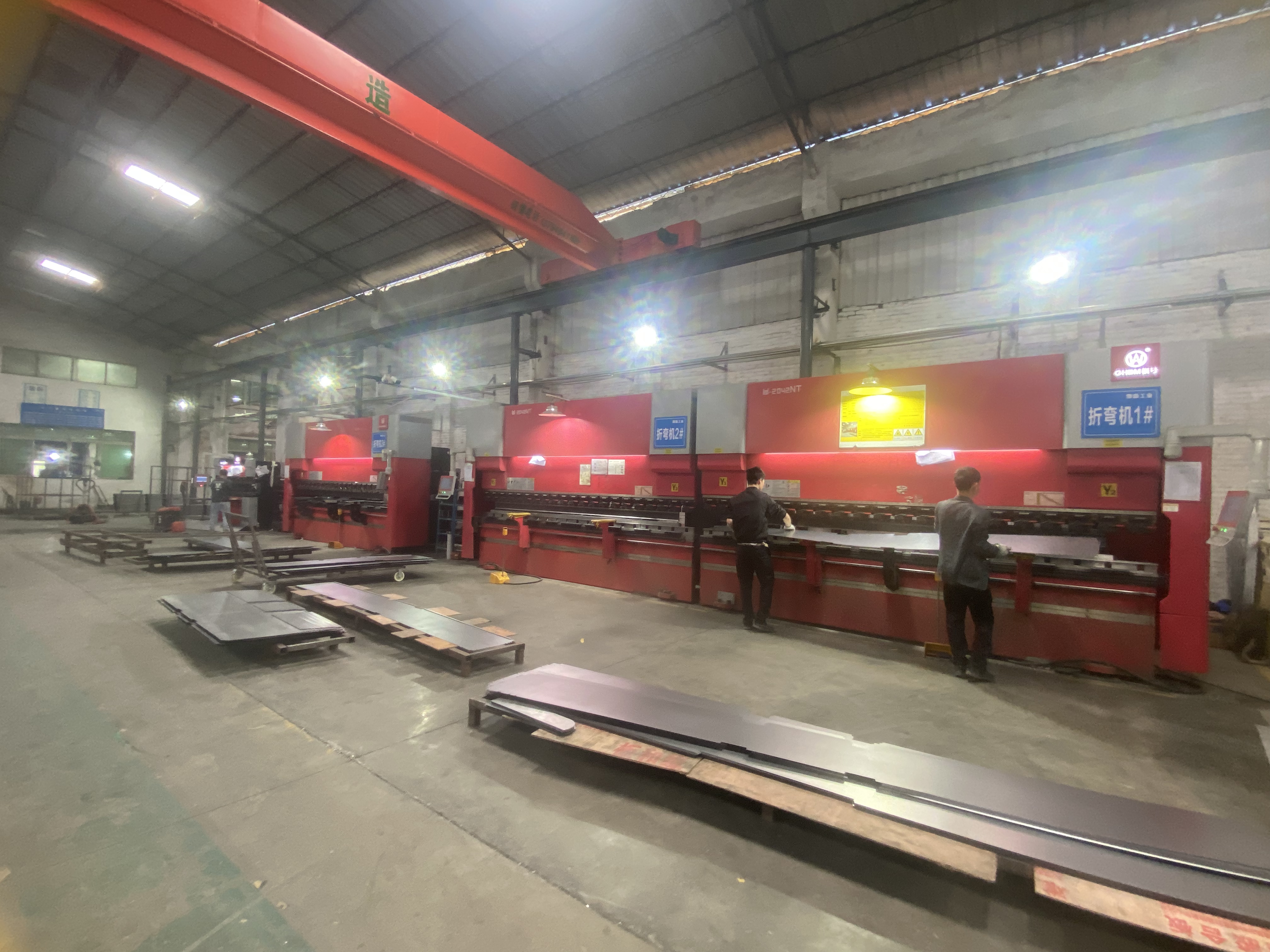

Figure 1: DINGPRECISION ISO-certified manufacturing facility for safety-compliant enclosures

2. IEC Standards (International)

The International Electrotechnical Commission publishes the most widely adopted standards for battery energy storage systems.

2.1 IEC 62619 — Industrial Li-ion Battery Safety

The primary safety standard for industrial lithium-ion batteries covering stationary and motive applications. Key enclosure-related requirements include thermal propagation prevention (enclosure must contain cell-to-cell runaway for at least 30 minutes), pressure relief venting to prevent enclosure rupture during gas release, mechanical integrity to withstand specified vibration and shock loads, and minimum electrical clearance distances between live parts and enclosure walls.

2.2 IEC 60529 — Ingress Protection

Defines the IP rating system. For battery enclosures, IP54 (indoor) and IP55 (outdoor) are the most commonly specified ratings.

For a comprehensive guide to selecting the right IP rating for your enclosure, see our

Figure 2: IEC 62619 thermal propagation testing setup with instrumented enclosure

3. UL Standards (North America)

Underwriters Laboratories standards are mandatory for energy storage systems deployed in North American markets. UL certification is often required by local building codes, fire marshals, and insurance underwriters.

3.1 UL 1973 — Batteries for Stationary Applications

Covers safety requirements for stationary battery systems including enclosure integrity under abuse conditions. Enclosures must pass drop tests, crush tests, and fire exposure tests while maintaining structural integrity and preventing electrolyte leakage.

3.2 UL 9540A — Thermal Runaway Fire Testing

The most critical test standard for battery enclosure fire safety. UL 9540A evaluates thermal runaway fire propagation at four levels: cell level, module level, unit level (inside enclosure), and installation level. Compliance is increasingly required by fire marshals and insurance providers for commercial BESS installations.

For detailed information on thermal management design that supports UL 9540A compliance, see our

4. NFPA Standards (US Installation Codes)

The National Fire Protection Association publishes installation and operational codes for energy storage systems in the United States.

4.1 NFPA 855 — Stationary Energy Storage Systems

The primary installation code for BESS in the US. Key enclosure-related provisions include minimum spacing requirements between battery units (typically 3 feet / 0.9m), ventilation requirements to prevent gas accumulation, fire detection and suppression system integration, and emergency shutdown accessibility requirements.

4.2 NFPA 70 (NEC) — National Electrical Code

Addresses electrical installation requirements including wiring methods within enclosures, overcurrent protection, grounding and bonding requirements, and equipment labeling requirements.

4.3 NFPA 69 — Explosion Prevention Systems

Applies when battery enclosures may contain flammable gases from vented cells. Requirements include deflagration venting, explosion-resistant construction, and gas detection systems with automatic ventilation activation.

Figure 3: NFPA 855 compliant BESS installation with required spacing and ventilation

5. Design Implications for Enclosure Manufacturers

Safety standards directly influence enclosure design decisions across multiple dimensions:

5.1 Material Selection

Standards require specific material properties for enclosures: minimum steel thickness (typically 1.2mm for structural panels, 1.5mm+ for load-bearing members), flame-retardant properties for non-metallic components, corrosion resistance for outdoor installations (minimum 720-hour salt spray per ASTM B117), and electrical insulation properties for busbar covers and terminal shields.

5.2 Ventilation and Pressure Relief

UL 9540A and IEC 62619 require enclosures to manage internal pressure during thermal events. This demands engineered pressure relief vents with calibrated opening pressures, ventilation paths that prevent gas accumulation in dead zones, and intake/exhaust configurations that support natural convection during normal operation and forced venting during emergency events.

5.3 Fire Protection Features

NFPA 855 and UL 9540 increasingly require passive fire protection features within enclosures: fire-resistant insulation between battery compartments (minimum 30-minute rating), thermal barriers to prevent fire spread between modules, and integrated fire suppression nozzles or connection points.

For surface finishing options that meet corrosion and fire safety requirements, see our

6. Certification Process

Obtaining safety certification for energy storage enclosures involves a structured process:

6.1 Pre-Certification Testing (In-House)

Before submitting to accredited labs, manufacturers perform in-house testing including IP rating verification (dust chamber and water spray tests), dimensional inspection (CMM measurement of critical features), material testing (tensile strength, salt spray, adhesion), and thermal management validation (thermal imaging under load).

6.2 Third-Party Certification

Final certification requires accredited third-party laboratories such as UL Solutions, TÜV Rheinland, SGS, or Intertek. The process typically involves design document review (drawings, BOM, material certificates), sample testing against applicable standards, factory audit (production process verification), and ongoing surveillance (annual or semi-annual inspections).

6.3 DINGPRECISION Quality System

Our certified quality management system supports the certification process with complete traceability from raw material to finished product, in-process inspection at every manufacturing stage, comprehensive documentation packages for certification submission, and experienced quality engineering team familiar with IEC/UL/NFPA/GB/T requirements.

For details on our manufacturing quality processes, see the

Figure 4: Quality inspection and testing at DINGPRECISION certified facility

7. GB/T Standards (China)

China's mandatory standards for energy storage systems have evolved significantly in recent years, with specific requirements that differ from IEC and UL frameworks.

7.1 GB/T 36276 — Lithium-Ion Battery for Energy Storage

The primary Chinese standard covering safety requirements, testing methods, and performance criteria for lithium-ion batteries used in stationary energy storage applications. Enclosure requirements include specific thermal management provisions for high-temperature environments, mandatory fire detection sensor integration, and enhanced vibration testing for seismic zone installations.

7.2 GB/T 42288 — Safety Code for Electrochemical Energy Storage Stations

Published in 2022, this comprehensive safety code addresses station-level requirements including fire wall construction between battery clusters, automatic fire suppression system requirements, explosion prevention measures for enclosed battery rooms, and emergency ventilation system specifications.

8. Standards Comparison by Market

The following table summarizes key differences in enclosure requirements across major markets:

Conclusion

Navigating safety standards for battery enclosures requires expertise across multiple regulatory frameworks. Early alignment on target market requirements is critical, as standards influence material selection, ventilation design, fire protection features, and testing protocols.

DINGPRECISION's experience manufacturing for international clients means we understand the documentation, quality systems, and design practices needed for compliance with IEC, UL, NFPA, and GB/T standards. Our certified facility provides the foundation for successful product certification.
