UL & ETL Certification for Sheet Metal Enclosures: A Complete Export Guide

DINGPRECISION | Sheet Metal Manufacturing Series — Article #2

UL & ETL Certification for Sheet Metal Enclosures: A Complete Export Guide

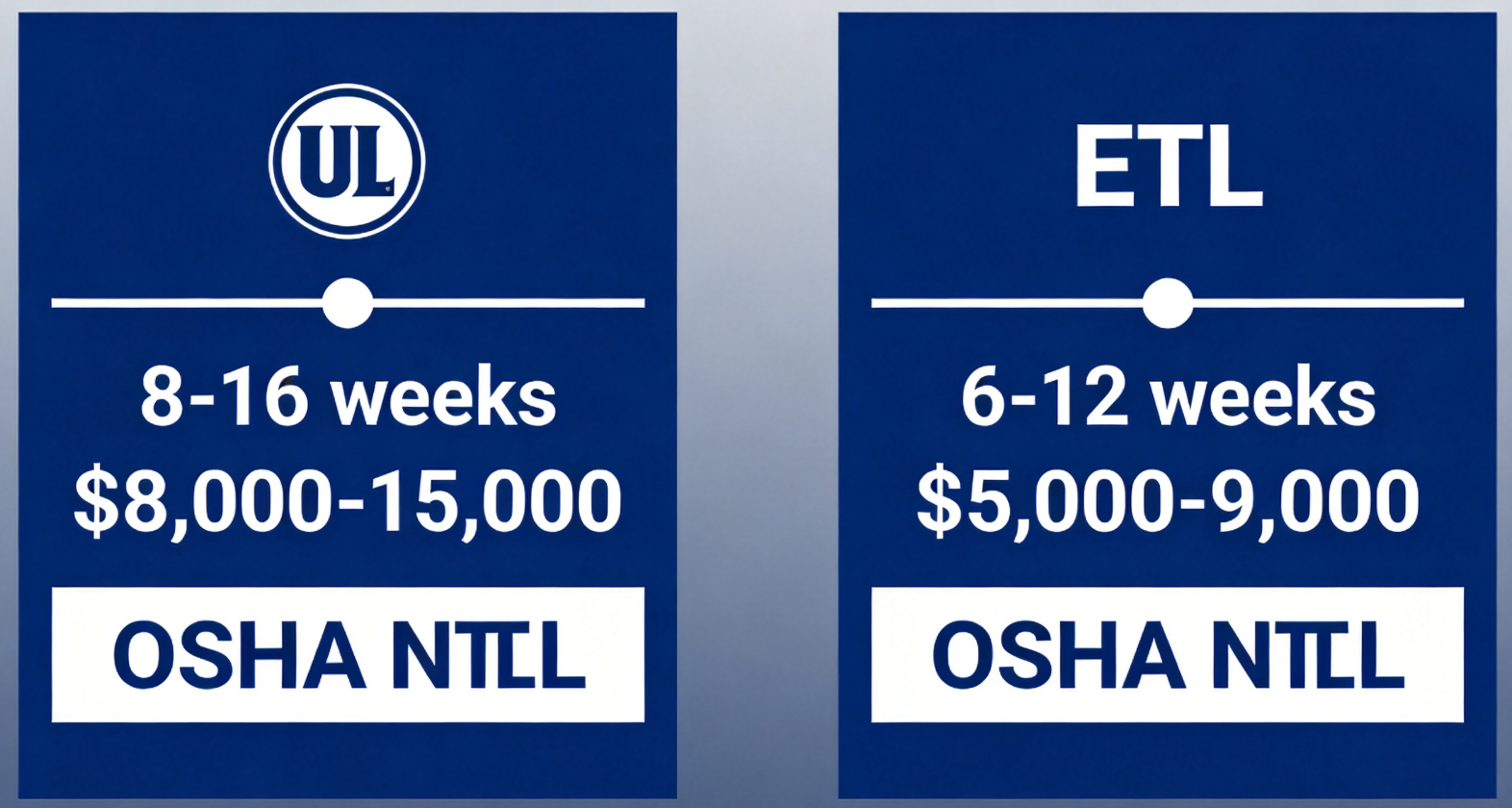

Section 1 — UL vs ETL: Functional Equivalence

The fundamental fact most first-time exporters miss: UL and ETL are functionally equivalent in the eyes of US and Canadian regulatory authorities. Both are OSHA-recognized Nationally Recognized Testing Laboratories (NRTLs) testing to identical UL published standards.

At DINGPRECISION, we have guided dozens of customers through both certification paths. The practical differences are cost and timeline:

ETL can reduce certification costs 20–40% and shorten timelines 4–8 weeks, but UL carries stronger brand recognition in conservative industries like power generation and petrochemicals. Our recommendation: confirm your customer's preference in writing before committing. Some end-users specify UL by name in procurement requirements; in those cases, ETL — however functionally equivalent — will not satisfy the contract.

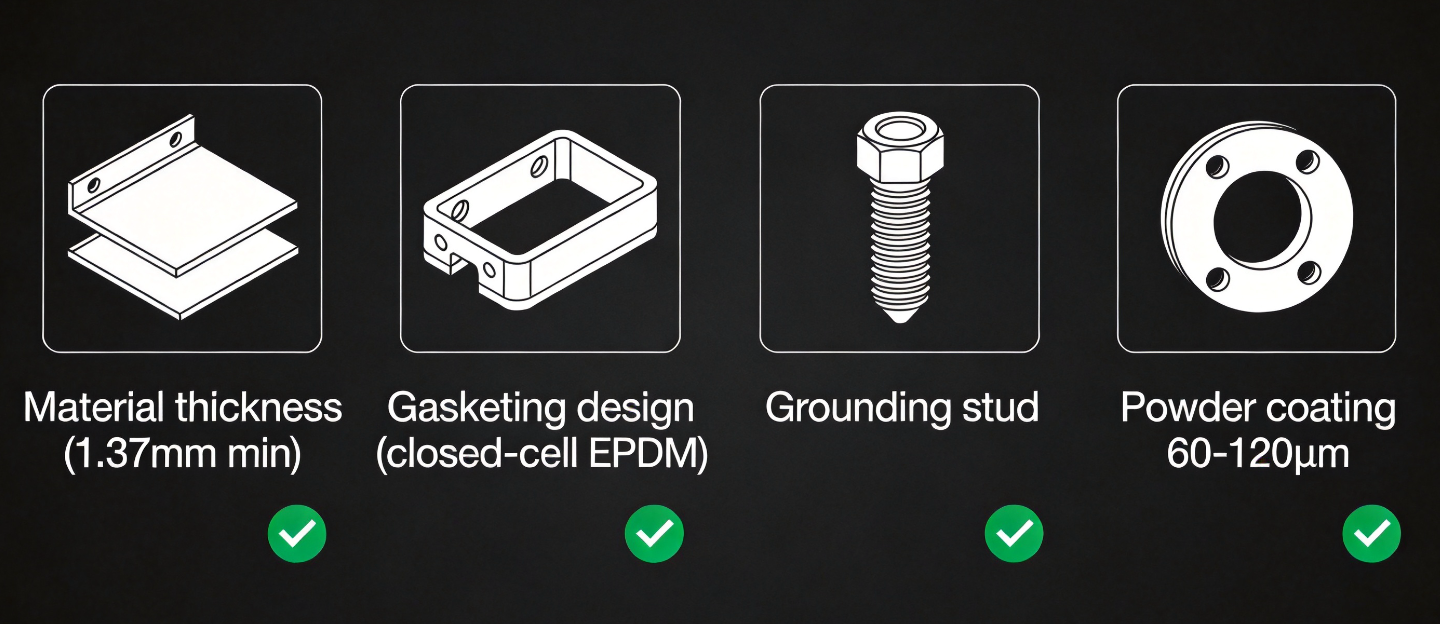

Section 2 — UL 508A Enclosure Requirements

UL 508A is the standard for industrial control panels, and it imposes specific requirements on the sheet metal enclosure fabricator. Key requirements:

(a) Enclosure Type Rating

The Type rating (1/3R/4/4X/12) dictates gasketing design, door overlap dimensions, and hardware material. For example, Type 4X requires stainless steel hinges and latches — plated carbon steel hardware will not pass inspection.

(b) Material Thickness

Minimum 1.37 mm (16 gauge) for steel enclosures up to 1,500 mm in any dimension. Above 1,500 mm, thickness must increase per UL tables. Our standard production uses 1.5 mm (14 gauge) for most NEMA enclosures, providing a margin above the minimum.

(c) Finish

Powder coating 60–120 μm with documented salt spray performance per ASTM B117. Minimum 500 hours for Type 3R, 1,000 hours for Type 4X with no red rust or blistering.

(d) Grounding

Dedicated grounding stud or terminal with permanent connection. The ground path must be verified by a low-resistance test during factory inspection.

Critical note: UL 508A applies to the complete panel assembly — not just the empty enclosure. The enclosure fabricator must coordinate closely with the panel assembler to ensure the final built panel complies. We provide pre-drilled mounting patterns and grounding points to simplify this coordination.

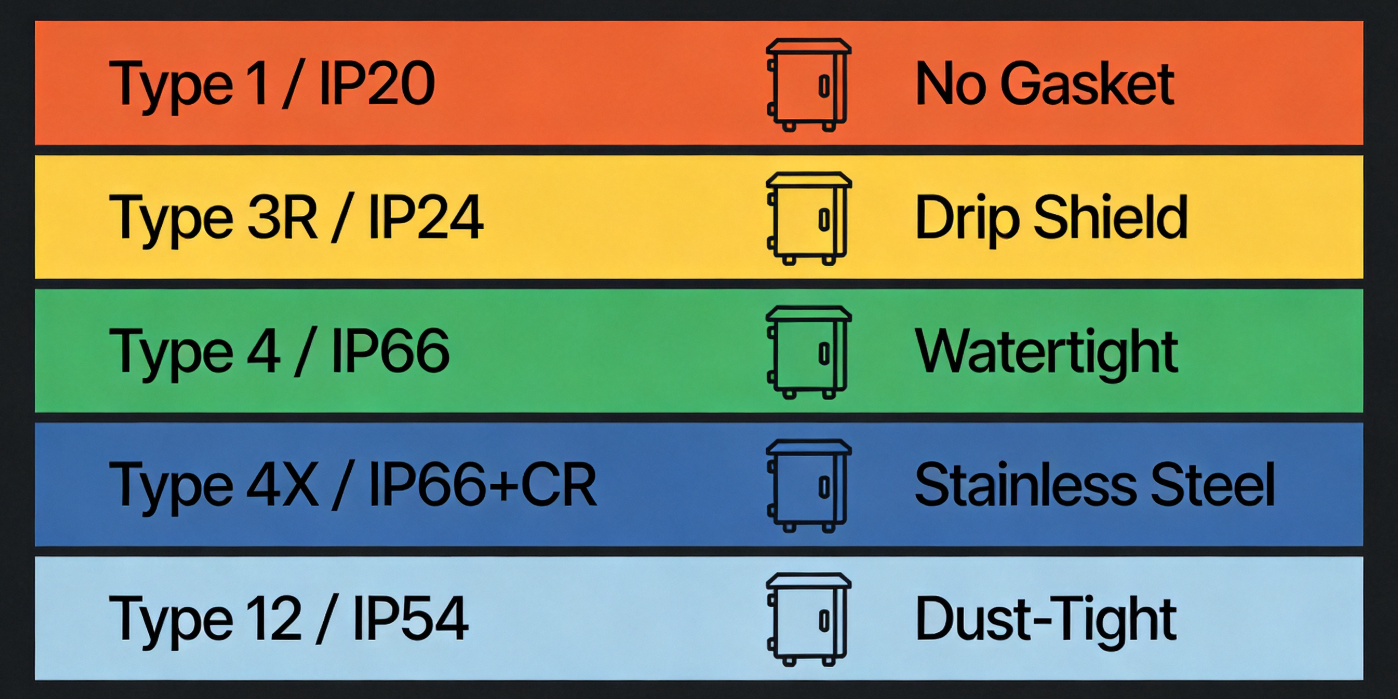

Section 3 — NEMA/IP Rating Mapping

Understanding the relationship between NEMA Type ratings and IEC IP codes is essential for international projects:

Design implication: higher NEMA/IP ratings require continuous-weld seams (no skip welding), full-perimeter closed-cell gasketing, and stainless steel hardware throughout. The step from Type 4 to Type 4X is significant — it requires a complete material change from carbon steel to stainless steel, which roughly doubles the raw material cost.

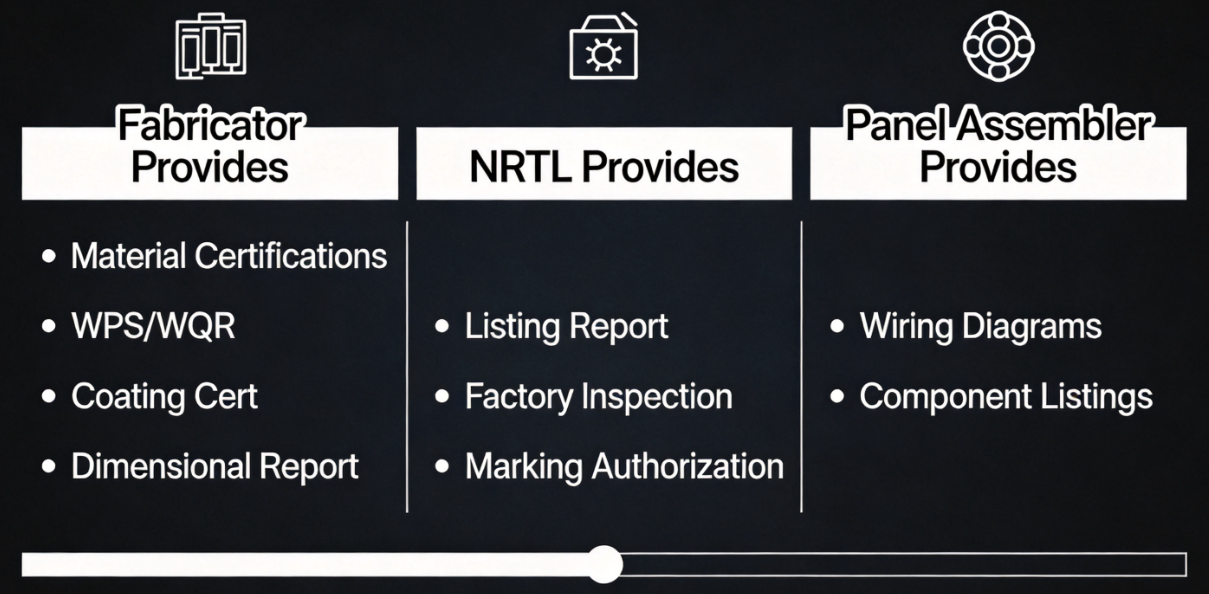

Section 4 — Documentation Package + Timeline

Fabricator Provides

Material certificates (mill test reports)

Welding Procedure Specifications (WPS) + Welder Qualification Records (WQR)

Coating certificate with salt spray test results

Dimensional inspection report

NRTL Provides

Listing report with all test data

Factory inspection report

Marking authorization (permission to apply the UL/ETL mark)

Panel Assembler Provides

Complete UL 508A panel documentation including wiring diagrams, component listings, and short-circuit current ratings

Timeline & Cost Summary

Timeline: 8–16 weeks (UL) or 6–12 weeks (ETL) for first-time certification

Cost: $5,000–15,000 per enclosure family depending on Type rating and complexity

Pro tip: perform in-house pre-compliance testing before NRTL submission. At DINGPRECISION, we conduct dimensional verification, grounding continuity testing, and gasket compression checks on every prototype before it ships to the NRTL lab. Our experience shows this catches approximately 80% of potential failures and saves weeks of delay and thousands in re-testing fees.

Frequently Asked Questions

Q: Is ETL certification accepted as equivalent to UL in the United States?

Yes. ETL is an OSHA-recognized NRTL and tests to the same UL published standards. Both certifications carry equal regulatory weight. However, some end-users specify UL by name in procurement contracts, so always confirm customer preference in writing.

Q: What is the minimum steel thickness for a UL 508A enclosure?

UL 508A requires a minimum of 1.37 mm (16 gauge) for steel enclosures up to 1,500 mm. Above 1,500 mm, thickness must increase per UL tables. DINGPRECISION uses 1.5 mm (14 gauge) as standard for most NEMA enclosures.

Q: How long does UL certification take for a sheet metal enclosure?

First-time UL certification typically takes 8–16 weeks. ETL certification is faster at 6–12 weeks. Performing in-house pre-compliance testing before submission can significantly reduce the risk of delays.

Q: What is the difference between NEMA Type 4 and Type 4X?

Type 4 is watertight (IP66) and can use painted carbon steel. Type 4X adds corrosion resistance, requiring stainless steel (304 or 316) construction throughout — including hardware, hinges, and latches. This roughly doubles the material cost.
