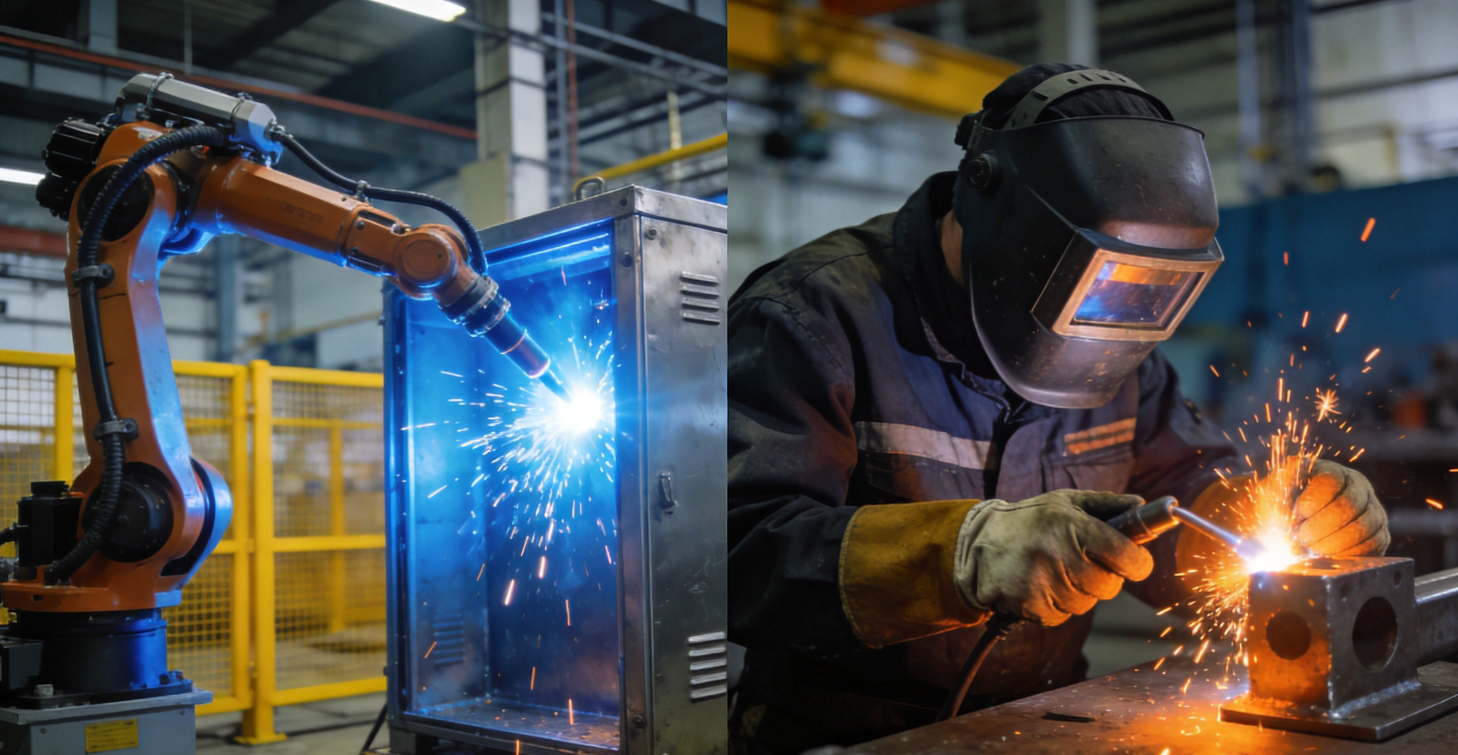

Robotic vs Manual Welding in Sheet Metal:
Quality, Cost & Consistency Compared
Manual welding's visible cost is labor ($25-45/hour in developed markets, $8-15/hour in manufacturing hubs). The invisible costs are far larger: rework (typically 3-8% of manual welds require grinding and re-welding), scrap (1-3% of parts are scrapped entirely due to weld defects beyond repair), and the hidden cost of inconsistency — manual weld quality varies 15-25% between operators and up to 10% for the same operator across an 8-hour shift due to fatigue. When you add these together, the true cost per meter of manual welding is typically 40-60% higher than the labor rate alone suggests.
At DINGPRECISION, our 4 robotic welding stations operate at 99.5% first-pass yield — meaning only 5 out of every 1,000 welds require rework. This is achieved through: programmed weld parameters (voltage, wire feed speed, travel speed) that never deviate from the qualified WPS, real-time arc monitoring that detects deviations before they become defects, and consistent torch angle and stick-out that eliminate the #1 cause of manual weld defects — operator inconsistency. Cross-section analysis shows robotic weld bead geometry varies <5% vs >25% for manual.
Robotic welding is not always the answer. Manual welding is superior for: one-off prototypes where programming time exceeds welding time, extremely complex 3D geometries with limited torch access, very thick sections (>25mm) requiring multi-pass with inter-pass temperature control, and repair welding where the defect location and geometry are unpredictable. The decision rule: if annual volume exceeds 500 identical weldments and joint accessibility is rated "good" on a DFM checklist, robotic welding will deliver superior quality and lower total cost.
