Liquid Cooling Sheet Metal Welding: The Complete Guide to Hermetic Sealing


Section 1 — Why Standard Welding Fails in Liquid Cooling

Liquid cooling systems present a unique challenge that standard sheet metal welding techniques were never designed to solve. Unlike structural welding — where the primary concerns are mechanical strength and dimensional accuracy — fluid-channel welding must achieve hermetic sealing under sustained thermal cycling conditions.

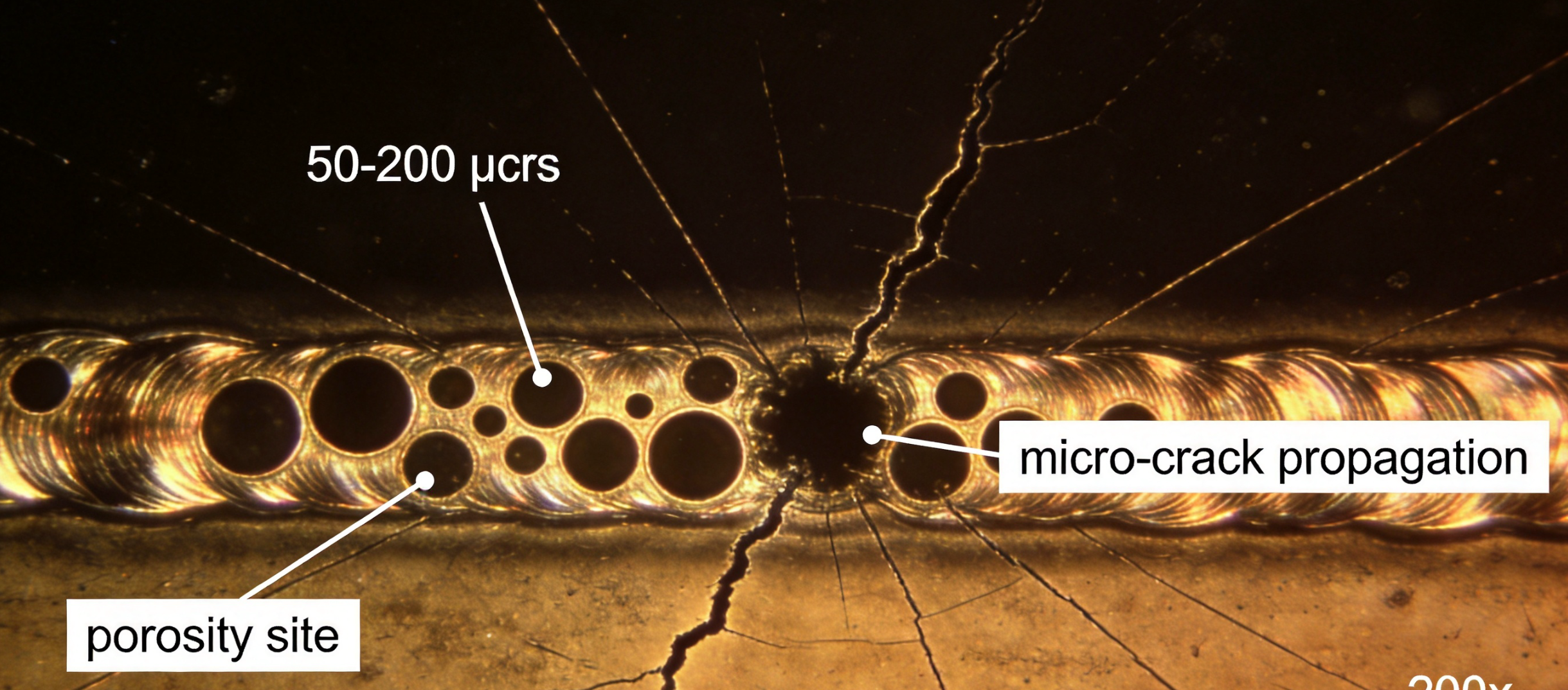

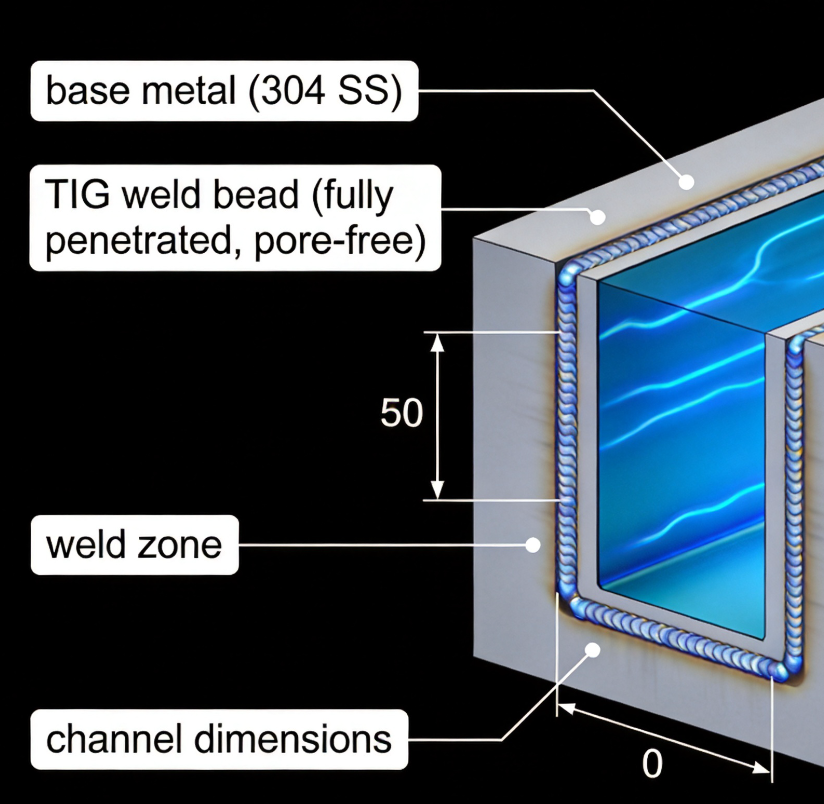

The core problem is porosity. Standard MIG welding inherently produces microscopic gas inclusions — typically 50–200 microns in diameter — that form when atmospheric gases become trapped in the molten weld pool. In a liquid cooling channel operating at 2–4 bar with temperature swings from 20 °C to 65 °C repeated thousands of times, each pore becomes a potential leak initiation site.

Thermal cycling amplifies the problem: differential expansion between weld metal and base metal creates micro-cracks that propagate from pore sites with each cycle. At DINGPRECISION, we have observed this failure mode firsthand — assemblies that passed initial pressure testing developed seepage after as few as 200 thermal cycles when MIG-welded on fluid-contact joints.


Section 2 — TIG vs MIG vs Laser: Test Data Comparison

We conducted a controlled test on 2 mm 304 stainless steel fluid channel assemblies at our facility. Each method produced 50 test coupons subjected to helium leak testing, cross-section metallography, and 1,000 thermal cycles between 20 °C and 65 °C.

Parameter

TIG

MIG

Laser

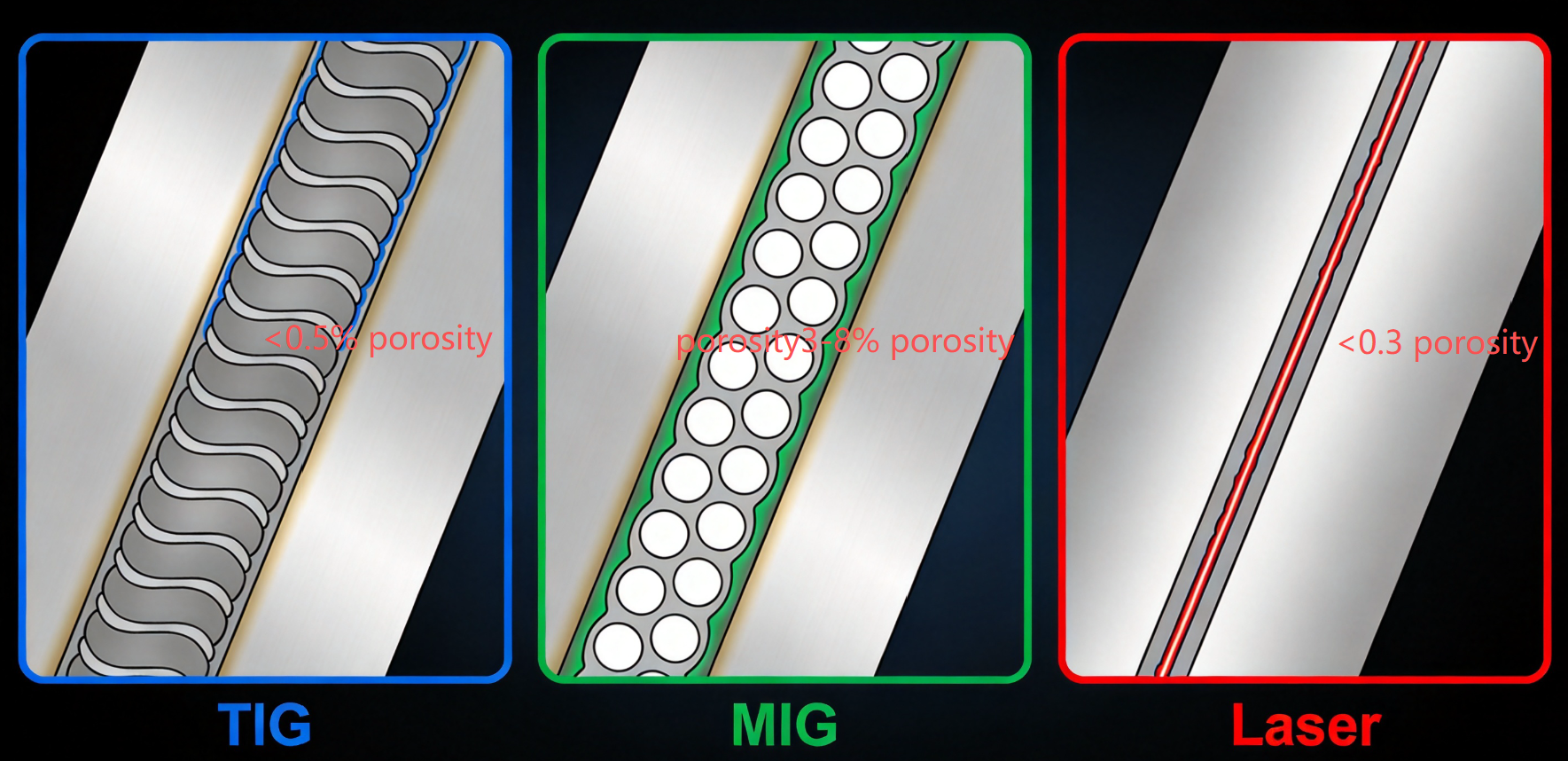

Internal Porosity

<0.5%

3–8%

<0.3%

Helium Leak Pass (Initial)

100%

89%

100%

Post-Cycle Pass Rate

98%

52%

94%

Relative Cost per Meter

1.0×

0.6×

2.5×

Our production recommendation: 100% TIG on all fluid-contact welds, pulsed MIG on structural-only joints where hermetic sealing is not required. Laser welding is reserved for high-value assemblies where the 2–3× cost premium is justified by the <0.3% porosity and minimal heat-affected zone.


Section 3 — Helium Leak Testing Protocol

At DINGPRECISION, every liquid-cooling assembly undergoes our three-stage helium leak testing procedure before shipment:

Stage 1: Evacuation

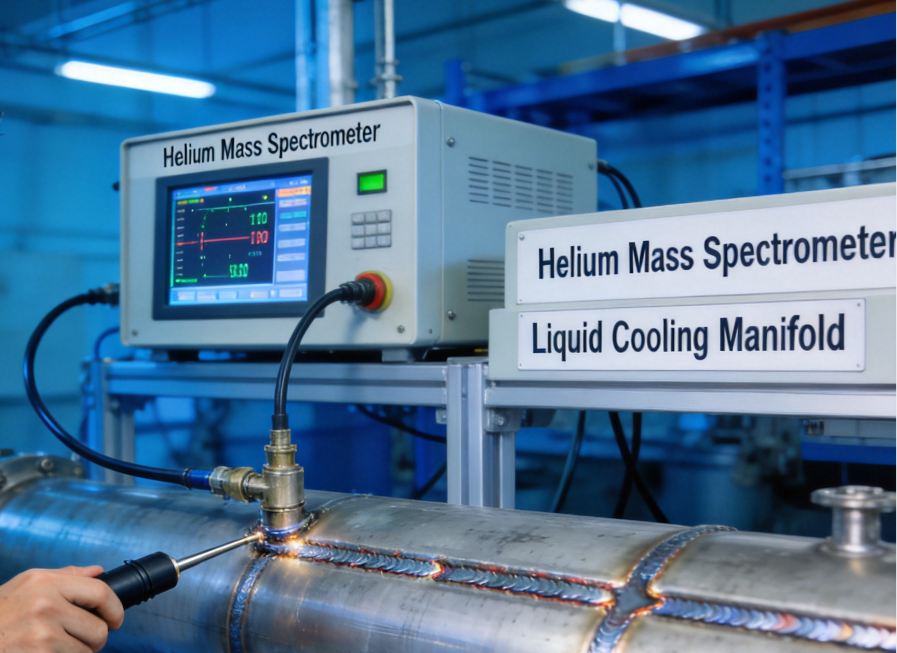

Connect the assembly to a helium mass spectrometer calibrated to 1×10⁻⁸ mbar·L/s sensitivity. Evacuate the internal volume to <10⁻² mbar and hold for a minimum of 5 minutes to confirm basic integrity.

Stage 2: Tracer Scan

Apply helium tracer gas via sniffer probe at 2–3 mm distance from all weld seams, scanning at 25 mm/s. Every centimeter of every fluid-contact weld seam is scanned — no sampling.

Stage 3: Acceptance Classification

Flag any detection above 1×10⁻⁷ mbar·L/s for rework. Our acceptance thresholds:

Commercial: <1×10⁻⁶ mbar·L/s — Commercial grade

High-Reliability: <1×10⁻⁸ mbar·L/s — High-reliability grade (per ISO 15848)


Section 4 — DFM Rules + RFQ Specification Guide

Joint Design

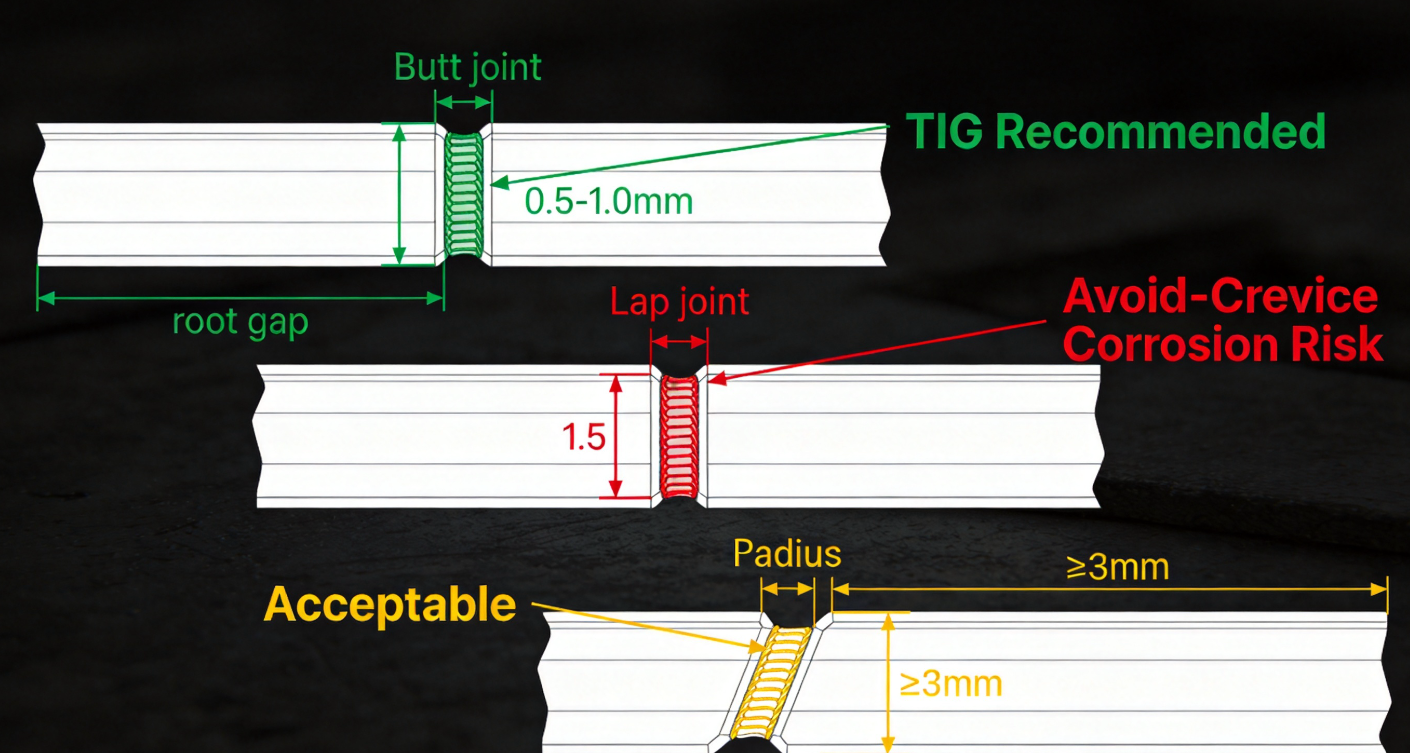

Butt joints with 0.5–1.0 mm root gap for TIG penetration

Avoid lap joints on fluid-contact seams — crevice corrosion risk under thermal cycling

Corner joints: outside radius ≥ 3 mm to reduce stress concentration

Material Selection

Stainless steel: 304 or 316L preferred for corrosion resistance and weldability

Aluminum: 6061-T6 with 4043 filler wire; requires 30–50% more welding passes for equivalent seal integrity

Wall Thickness

Minimum 1.5 mm for TIG fluid channels (2.0 mm preferred for production efficiency)

Below 1.5 mm, burn-through risk increases exponentially — reject in DFM review

Test Port Requirement

Every assembly must include a dedicated helium test port — typically a 1/4″ NPT or G1/4″ threaded port with a sealing cap. This port also serves as the system fill/drain connection in final installation.

Post-Weld Treatment

Pickling and passivation per ASTM A380 for all stainless steel fluid-contact surfaces. This removes heat tint and restores the chromium oxide passive layer critical for long-term corrosion resistance.

RFQ Checklist

Specify welding method by zone (e.g., TIG on fluid-contact, MIG on structural)

State acceptance criteria as a numeric leak rate — never just 'leak-free'

Require 100% testing (not statistical sampling) for all fluid-contact assemblies

Require documentation package: WPS + WQR for each assembly serial number


Frequently Asked Questions

Q: What leak rate is acceptable for liquid cooling sheet metal assemblies?

For commercial-grade liquid cooling systems, an acceptable leak rate is below 1×10⁻⁶ mbar·L/s. For high-reliability applications (data center cooling, medical devices), the threshold is below 1×10⁻⁸ mbar·L/s per ISO 15848.

Q: Why is TIG welding preferred over MIG for fluid-contact seams?

TIG welding produces internal porosity below 0.5%, compared to 3–8% for MIG. After 1,000 thermal cycles, TIG assemblies maintain a 98% pass rate versus only 52% for MIG. The lower porosity directly translates to fewer leak initiation sites.

Q: How does helium leak testing compare to pressure testing?

Pressure testing detects gross leaks (typically >10⁻³ mbar·L/s) but misses the micro-leaks that cause field failures. Helium mass spectrometer leak testing detects leaks as small as 10⁻⁹ mbar·L/s — six orders of magnitude more sensitive than pressure decay testing.

Q: What is the minimum wall thickness for TIG-welded liquid cooling channels?

The absolute minimum is 1.5 mm, but 2.0 mm is preferred for production. Below 1.5 mm, the risk of burn-through increases exponentially, and the root pass becomes difficult to control consistently.

Q: Does aluminum require different welding specifications than stainless steel for hermetic sealing?

Yes. Aluminum (6061-T6) requires 4043 filler wire and typically 30–50% more welding passes to achieve equivalent seal integrity. Aluminum's higher thermal conductivity means heat dissipates faster from the weld zone, requiring higher amperage and slower travel speed — both of which increase porosity risk if not precisely controlled.
