Energy Storage Enclosure Design Guide
Material Selection, Thermal Management & Safety Compliance
DINGPRECISION | 鼎壹工业科技 | May 2026
1. Introduction
The global energy storage market is experiencing unprecedented growth, with a compound annual growth rate (CAGR) exceeding 15%. As battery energy storage systems (BESS) scale from residential units to utility-grade installations, the design and manufacturing of their enclosures have become a critical factor in system safety, thermal performance, and long-term reliability.
At DINGPRECISION, we specialize in custom sheet metal enclosure manufacturing with over 260 skilled professionals, 15,000 sqm of production space, and a 17M+ CNY equipment investment. This guide covers the essential design considerations for energy storage enclosures, drawing from our experience serving Fortune 500 clients including Midea, Huawei, and State Grid.
To view similar enclosure projects, visit our product catalog.
2. Material Selection for Energy Storage Enclosures
Choosing the right base material is the foundation of any durable enclosure design. Each material offers distinct trade-offs among cost, weight, corrosion resistance, and structural strength.
Material | Strength | Corrosion Resistance | Cost Factor | Best For |
Cold Rolled Steel (SPCC) | ★★★★★ | ★★★☆☆ | Low | Indoor BESS |
Galvanized Steel (SGCC) | ★★★★☆ | ★★★★☆ | Low-Med | Outdoor IP54 |
Aluminum 5052 | ★★★☆☆ | ★★★★★ | Medium | Portable ESS |
Stainless Steel 304 | ★★★★★ | ★★★★★ | High | Marine/Coastal |
DINGPRECISION Recommendation: For most residential and commercial energy storage applications, galvanized steel (SGCC) with electrostatic powder coating provides the optimal balance of cost, durability, and corrosion protection. Our standard enclosures use 1.5mm–2.0mm SGCC with a minimum salt spray resistance of 1,000 hours (ASTM B117).
3. Thermal Management Design
Effective thermal management is crucial for battery safety, performance, and lifespan. The enclosure design directly influences heat dissipation and must accommodate both normal operation heat loads and emergency scenarios.
3.1 Heat Generation Sources in Battery Systems
Lithium-ion battery cells generate heat during charge/discharge cycles. A typical 10kWh residential system can generate 200–500W of waste heat at full load. Without proper ventilation, internal temperatures can exceed 60°C, triggering thermal derating or, in extreme cases, thermal runaway.
3.2 Ventilation Design Principles

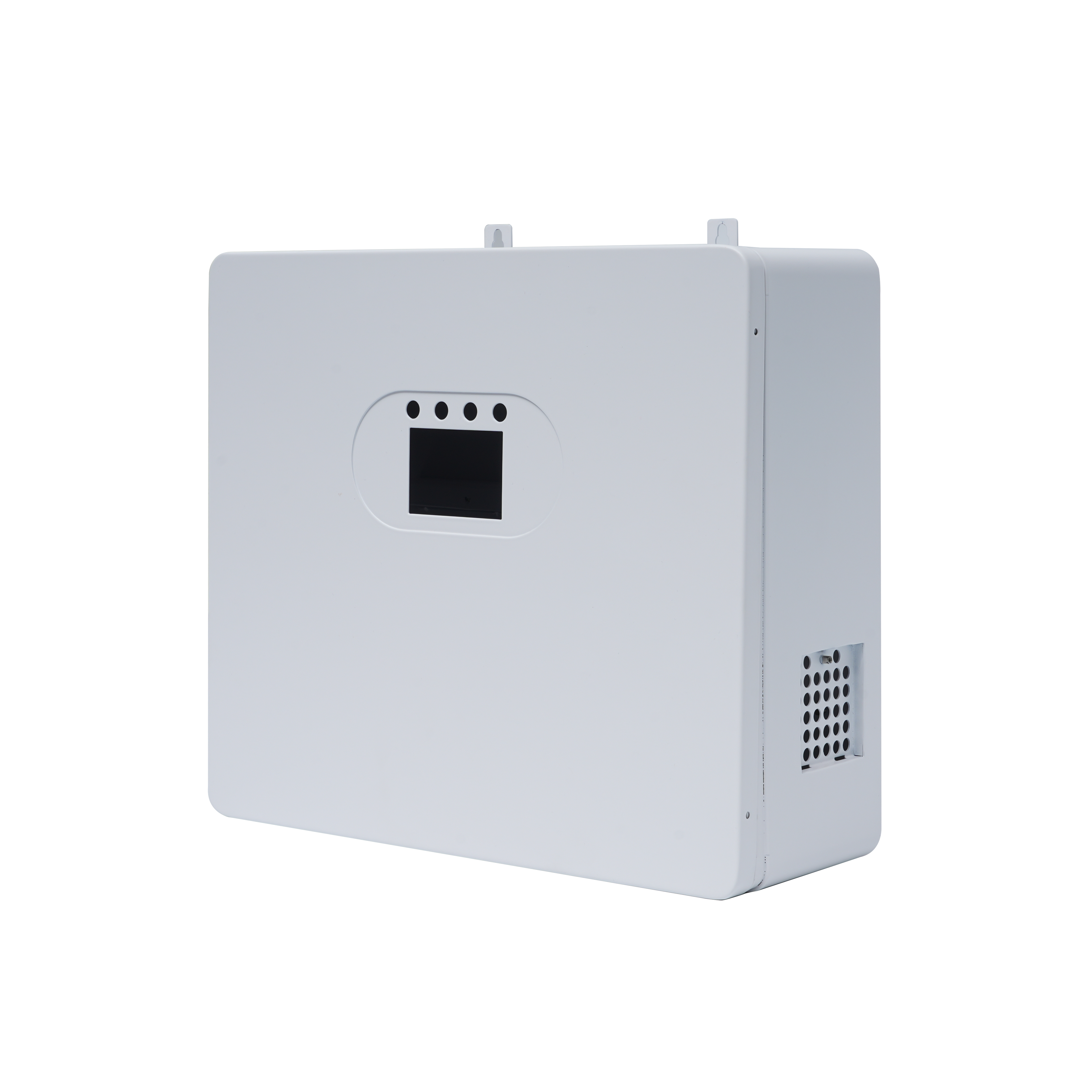

Our enclosure design incorporates engineered ventilation slots (as shown in Figure 1) that optimize natural convection airflow. Key design parameters include:
Parameter | Specification / Guideline |
Total ventilation area | Minimum 5% of enclosure surface area for natural convection |
Intake-outlet ratio | 1:1.2 (outlet larger to promote chimney effect) |
Slot width | 3–5mm to prevent foreign object entry while maximizing airflow |
IP rating impact | Ventilation reduces IP rating; use baffled or filtered vents for IP54+ |
CFD simulation | Recommended for systems > 50kWh to validate airflow patterns |
For detailed thermal management best practices, see our dedicated guide on battery cabinet cooling design.

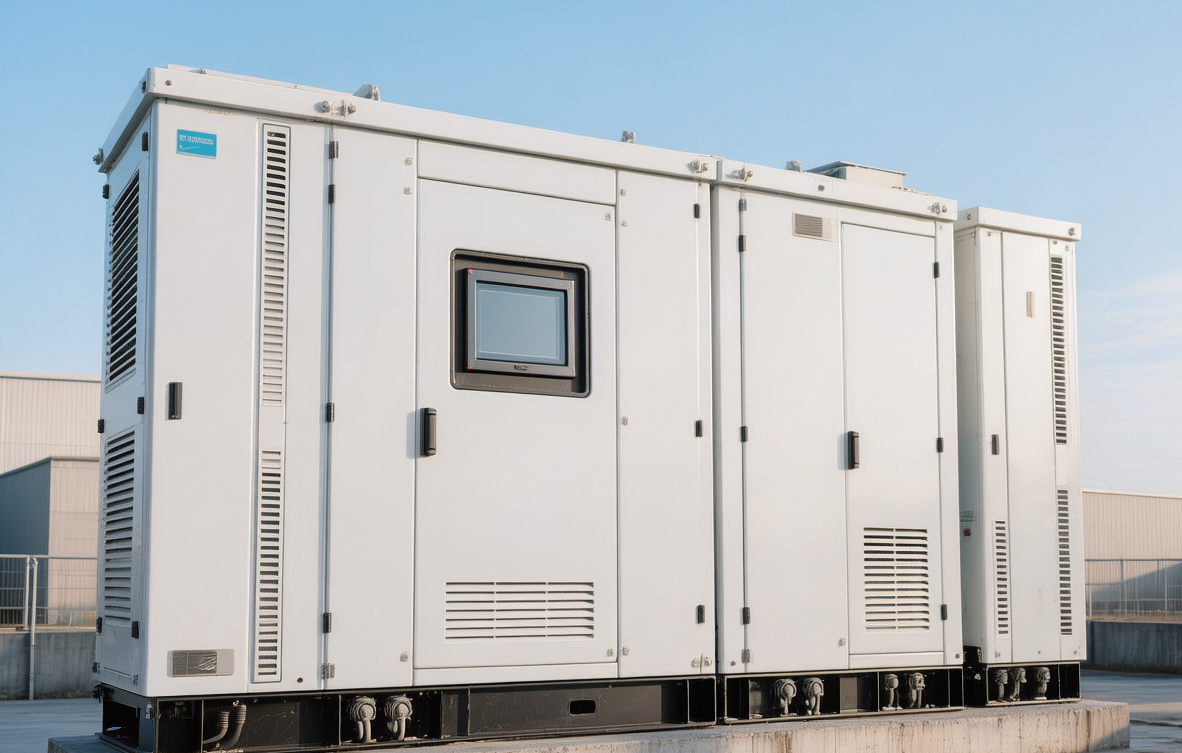

Figure 2: Energy storage and charging station enclosure with thermal management design
4. Safety Compliance & Standards
Energy storage enclosures must comply with a complex matrix of international safety standards. Non-compliance can result in failed certification, insurance voids, and liability exposure.
Standard | Scope | Region | Key Enclosure Requirement |
IEC 62619 | Industrial Li-ion safety | International | Thermal propagation prevention |
UL 1973 | Stationary storage safety | North America | Venting, fire resistance, grounding |
IEC 60529 | Ingress protection | International | IP54/IP55 for outdoor enclosures |
UN 38.3 | Transport safety | Global | Mechanical integrity testing |
Learn more about IP54 vs IP65 protection ratings and how to choose the right level for your installation environment.
5. Customization Options
DINGPRECISION offers extensive customization capabilities based on customer-specific requirements. Our design-for-manufacturing (DFM) engineering team works closely with clients to optimize enclosure designs for cost, performance, and producibility.
5.1 Cutouts & Interface Design
As shown in the product image (Figure 1), our enclosures can be customized with:
Display/interface windows with precision-cut openings for HMI panels
LED indicator holes with optional light pipe integration
Cable entry glands with IP68-rated sealing
Ventilation slot arrays engineered for specific thermal loads
Custom mounting brackets for wall, pole, or floor installation
Explore our powder coating capabilities and surface finish options for custom enclosure orders.
Figure 3: DINGPRECISION precision sheet metal fabrication facility
6. Quality Assurance Process
Every DINGPRECISION enclosure undergoes a rigorous quality control process:
Step | Process | Quality Check |
1 | Incoming Material Inspection | Supplier certification, surface quality, thickness verification |
2 | Laser Cutting (±0.1mm) | Automated edge inspection, burr-free processing |
3 | CNC Bending (±0.5°) | Angle verification with CMM for first-article inspection |
4 | Welding (MIG/MAG/TIG) | 4 robot welding stations, visual + dye penetrant testing |
5 | Surface Treatment | Degreasing, zirconium conversion coating, powder coating |
6 | Final Assembly | Dimensional check, fitment test, IP rating validation |
7 | Packing & Shipping | Industrial-grade packaging, shock/vibration protection |
Discover our complete 7-step manufacturing process from raw material to finished product delivery.
Figure 4: Electrostatic powder coating line — 3 lines with color consistency ΔE ≤ 1.0
7. Conclusion
Energy storage enclosure design requires a holistic approach balancing material selection, thermal management, safety compliance, and cost optimization. Partnering with an experienced manufacturer like DINGPRECISION ensures your enclosure meets all technical requirements while maintaining competitive pricing and rapid time-to-market.
With our integrated sheet metal fabrication, electrostatic powder coating, and assembly capabilities under one roof, DINGPRECISION offers a truly one-stop solution for energy storage enclosure manufacturing.
