Battery Enclosure Thermal Management:
How Sheet Metal Design Affects Cooling Efficiency

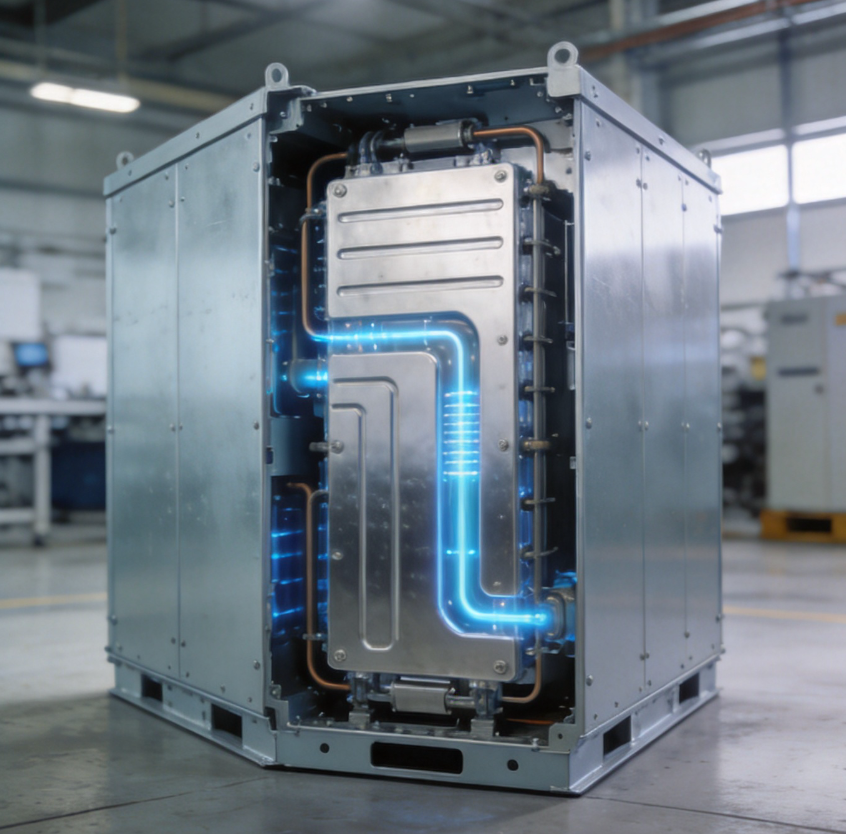

The first decision in any battery enclosure thermal design is passive vs active cooling, and this choice fundamentally shapes sheet metal requirements. Passive cooling relies on natural convection and radiation — the enclosure itself is the primary heat dissipation path, demanding large surface areas, optimized ventilation, and high-emissivity coatings. Active cooling (liquid cold plates or forced air) shifts the thermal load away from the enclosure, allowing smaller form factors but requiring precise internal mounting interfaces and sealed penetrations. The trend is toward active cooling as pack energy densities exceed 200 Wh/kg, but passive remains cost-optimal for stationary storage in moderate climates.
Based on CFD simulation and field validation: (a) Louvers — downward-facing, 25mm pitch, 45° angle, ~40% open area while maintaining IP24. (b) Perforations — 6mm holes on 9mm staggered centers for 36% open area, the sweet spot between airflow and structural integrity. (c) For IP54+, all vents require removable MERV 8 filter elements with bolted access panels, not press-fit. Recommendation: for critical designs, invest $500-1,500 in external CFD analysis before finalizing perforation patterns — trivial compared to re-tooling costs after field failures.
The coating matters more than the base metal for radiative cooling. Uncoated aluminum at 0.05 emissivity radiates almost no heat; powder coated at 0.85-0.95, it becomes a highly effective radiator. Our emissivity test results: RAL 9016 White polyester 0.92 (best outdoor), RAL 7035 Grey epoxy-polyester 0.88, RAL 9005 Black 0.94 (best indoor, absorbs solar outdoors). For outdoor enclosures in sunny climates: light-grey or white powder coating. For indoor data centers: black for optimal radiative transfer.
If battery system requires >10kW heat rejection: go active liquid cooling with sealed IP65+ enclosure. Incremental cost $50-150/kW, quickly recovered through eliminated ventilation-related field failures. Active forced air: target IP54 with filtered fans + differential pressure switches for clog detection. Passive natural convection: target IP24 minimum, limited to <5kW thermal load. The design tension between "IP65 peace of mind" and ventilation requirements is resolved by the cooling strategy choice — make this decision early, not as an afterthought.
