Zirconium Pretreatment: The Phosphating Alternative for BPA-free Coating

Zirconium Pretreatment:

The Phosphating Alternative for BPA-free Coating

Zirconium Pretreatment: The Phosphating Alternative for BPA-free Coating Platforms: Website + LinkedIn ~2,500 words Keywords: zirconium conversion, phosphating alternative, BPA-free pretreatment, phosphorus-free > Key takeaway: Zirconium conversion coating (陶化) is the key pretreatment process for BPA-free coating, replacing traditional zinc phosphating. The zirconium film contains no phosphorus or chromium, with film weight 50–80 mg/m², cross-cut adhesion Grade 0, and salt spray resistance 500h+. DINGPRECISION has achieved production-scale zirconium pretreatment compatible with waterborne acrylic and pure polyester BPA-free systems.

1. Why Replace Phosphating?

In BPA-free coating transitions, pretreatment process updates are often overlooked — many companies focus only on coating system replacement while neglecting pretreatment. In reality, traditional zinc phosphating has two issues incompatible with BPA-free coating: 1. Phosphating produces phosphorus-bearing wastewater with high treatment costs — Phosphating wastewater requires specialized treatment (chemical precipitation + biological treatment), making it environmentally expensive. In BPA-free transition cost optimization, eliminating phosphating waste is a significant saving (~8% pretreatment cost reduction). 2. Some phosphating processes include chromium sealing — Chromate sealing after zinc phosphating contains hexavalent chromium, an REACH SVHC (Substance of Very High Concern). While not directly related to BPA, environmental trends demand chromium elimination. Zirconium conversion coating as a phosphating alternative has been widely adopted in the automotive industry for years, but is less common in sheet metal coating. DINGPRECISION has introduced zirconium conversion into its sheet metal coating line and successfully achieved mass production with waterborne acrylic BPA-free systems.

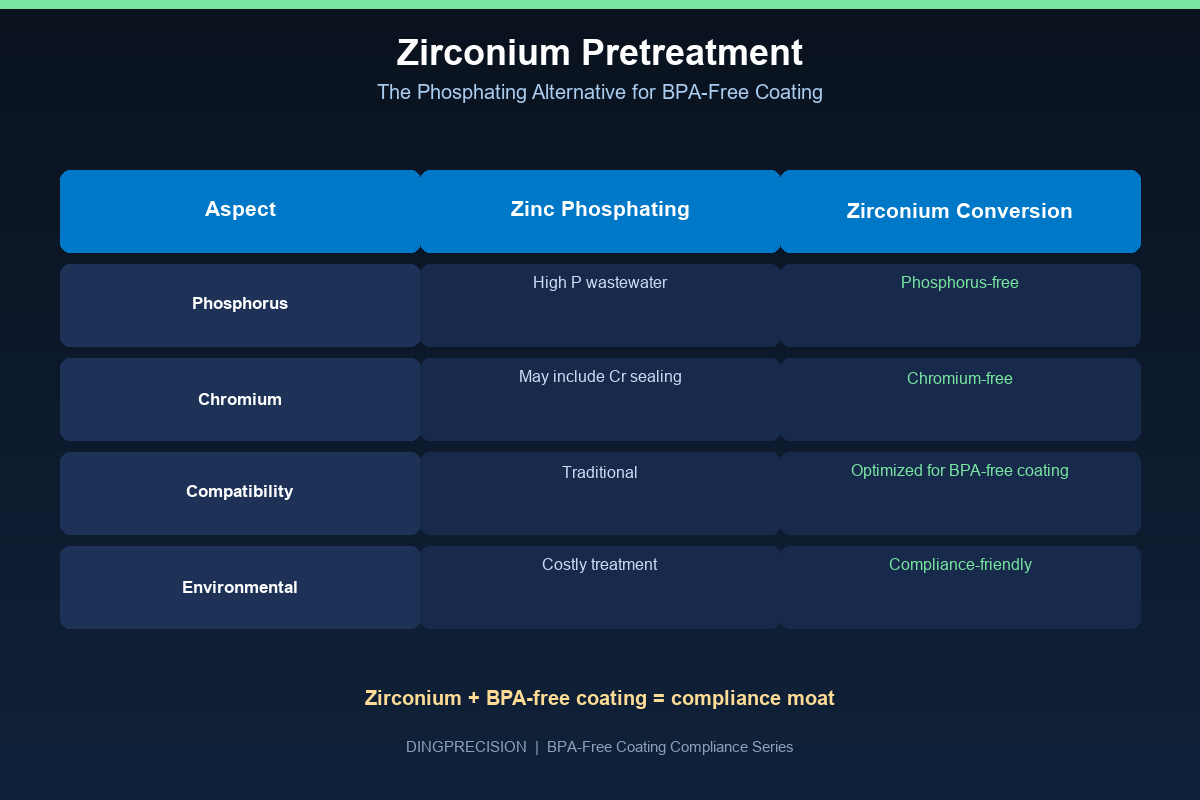

2. Zirconium vs Zinc Phosphating Comparison

3. Zirconium Process Parameters

The following are production-line parameters used at DINGPRECISION:

4. Film Weight Control Essentials

Film weight is the critical success factor. Too low (<50 mg/m²) → poor adhesion; too high (>80 mg/m²) → brittle film, coating cracking. Control essentials: 1. Bath concentration: Zr concentration 0.5–1.0 g/L. Too low → insufficient film; too high → excessive film. Check daily with spectrophotometer. 2. pH control: 4.0–5.0. pH <3.5 → excessive film + substrate etching; pH >5.5 → slow film formation, low film weight. Check twice daily with pH meter. 3. Temperature: Room temperature is sufficient, but in winter below 15°C, heat to 30–40°C to maintain film formation rate. 4. Online monitoring: Equip with XRF film weight gauge. Sample 3–5 parts per batch, control 50–80 mg/m². 5. Bath renewal: Zirconium baths are more stable than phosphating (no phosphate sludge). Change interval: 3–6 months (vs 1–3 months for phosphating).

5. Zirconium + BPA-free Coating System Validation Results

FAQ Q1: How to control zirconium film weight? A: Control through three dimensions: (1) bath concentration (Zr 0.5–1.0 g/L, daily check); (2) pH (4.0–5.0, twice daily); (3) processing time (1.5–3 min). We recommend equipping an XRF film weight gauge for online monitoring — sample 3–5 parts per batch, controlling 50–80 mg/m². Q2: Can zirconium replace all phosphating? A: In sheet metal coating, essentially yes. Zirconium works on cold-rolled steel, galvanized steel, aluminum, and aluminum alloys. For special substrates (e.g., stainless steel), zirconium film formation is less effective and other pretreatment may be needed. We recommend substrate compatibility testing before switching. Q3: Is zirconium more expensive than phosphating? A: Zirconium bath chemicals are slightly more expensive, but overall pretreatment cost is lower. Reasons: (1) low temperature (room temp–40°C vs 40–55°C) → 30% energy savings; (2) no phosphorus waste treatment (major cost item for phosphating); (3) longer bath life (3–6 months vs 1–3 months) → less downtime. Net pretreatment cost reduction: ~8%. Q4: Does zirconium provide the same adhesion as phosphating? A: Yes. Zirconium + waterborne acrylic and phosphating + waterborne acrylic both achieve cross-cut adhesion Grade 0. For salt spray, zirconium + waterborne acrylic achieves 500h (same as phosphating); zirconium + pure polyester powder achieves 1000h+. Q5: Can an existing phosphating line be converted to zirconium? A: Yes, with minimal modification: (1) clean phosphating tank and piping (prevent cross-contamination); (2) replace with zirconium bath; (3) adjust degreasing temperature (+10°C); (4) add online XRF film weight monitoring. Conversion takes 3–5 days. DINGPRECISION completed this in 4 days. About DINGPRECISION: DINGPRECISION has a production-scale zirconium pretreatment line — phosphorus-free, chromium-free, film weight 50–80 mg/m², compatible with waterborne acrylic and pure polyester BPA-free coating systems. For zirconium pretreatment or BPA-free coating solutions, contact DINGPRECISION.
