Have you ever wondered how complex metal parts are made? Sheet metal processing is a crucial method in manufacturing. It allows for the rapid prototyping of functional parts, ensuring designs meet expectations. In this article, we’ll explore the sheet metal prototyping process, its advantages, and key techniques used in the industry.
Prototyping in sheet metal manufacturing is a systematic approach that allows engineers to create functional parts quickly. This process helps verify designs, test functionality, and identify any potential manufacturing issues before full-scale production begins. Let’s break down the key steps involved in the sheet metal prototyping process:
The journey begins with creating a detailed 3D model using computer-aided design (CAD) software. This model serves multiple purposes. It allows for precise visualization of the part and enables engineers to control dimensions and tolerances accurately. CAD modeling also helps identify potential design flaws early, such as interferences or mechanical stresses. Many CAD programs include specific tools for sheet metal design, simplifying the transition from 3D models to flat patterns.
Selecting the right material is crucial. The choice of material directly impacts the strength, durability, and performance of the prototype. Common materials include aluminum, stainless steel, and mild steel. Each material has its own set of properties; for example, aluminum is lightweight and corrosion-resistant, while stainless steel offers high strength and durability. It’s essential to choose a material that closely resembles what will be used in production to ensure accurate functional testing.
Once the design and material are in place, the next step involves cutting the sheet metal into the desired shapes. Various cutting techniques can be employed, such as:
Laser Cutting: Offers high precision and is suitable for intricate designs.
Waterjet Cutting: Ideal for heat-sensitive materials, as it does not generate heat.
CNC Turret Punching: Efficient for producing holes and cutouts quickly.
These methods are often supported by CAD models that generate G-code, minimizing the need for expensive tooling and reducing lead times.
After cutting, the sheet metal is shaped using a press brake or rollers. This step is critical for achieving the desired angles and contours. Accurate shaping from a precisely cut blank ensures high fidelity to the design intent. The forming process helps create complex geometries that are crucial for the part’s functionality.
The final step involves assembling the prototype. Techniques such as welding, riveting, or bolting are commonly used to join components. Surface treatments, like powder coating or anodizing, may be applied to enhance durability and aesthetics. This finishing process ensures the prototype not only meets functional requirements but also aligns with visual expectations.
By following these steps, manufacturers can create high-quality sheet metal prototypes that facilitate effective testing and refinement, ultimately leading to better final products.
Sheet metal processing, particularly through prototyping, offers several significant advantages that can greatly enhance product development efficiency and accuracy. Here are some key benefits:
One of the standout advantages of sheet metal prototyping is the rapid turnaround time for developing new designs. Advanced fabrication techniques, such as laser cutting and automated bending, allow manufacturers to produce prototype parts within days. This quick production cycle enables engineers to identify design flaws early, facilitating prompt adjustments. As a result, the overall product development cycle accelerates, leading to shorter time-to-market.
Sheet metal prototyping can blur the lines between prototyping and small-batch production. By eliminating the need for complex and costly tooling, it becomes a practical option for low-volume production following final design approval. This approach provides high-quality results without the financial burden typically associated with traditional fabrication methods, making it an appealing choice for startups and smaller projects.
Prototyping with materials intended for final production ensures accurate performance testing. By using production-grade materials, manufacturers can better assess the structural, thermal, and mechanical properties of the prototype. This practice reduces the risk of failure during full-scale production, as the prototype closely mimics the final product's performance characteristics.
The precision offered by modern fabrication techniques ensures high accuracy and repeatability, even for complex or custom designs. With tight tolerances achievable through methods like laser cutting and CNC machining, prototypes can closely match the final product specifications. This level of accuracy allows for realistic testing and validation, ensuring that the prototype meets the intended design requirements.
By leveraging these advantages, companies can streamline their product development processes, reduce costs, and improve the quality of their final products. The ability to iterate quickly and test functional designs before full-scale production is invaluable in today’s competitive market.
Sheet metal prototyping employs various techniques to efficiently create high-quality prototypes that meet design specifications. Each method has its unique advantages, making it essential for manufacturers to choose the right approach based on their specific needs. Here’s a closer look at the common techniques used in sheet metal processing:

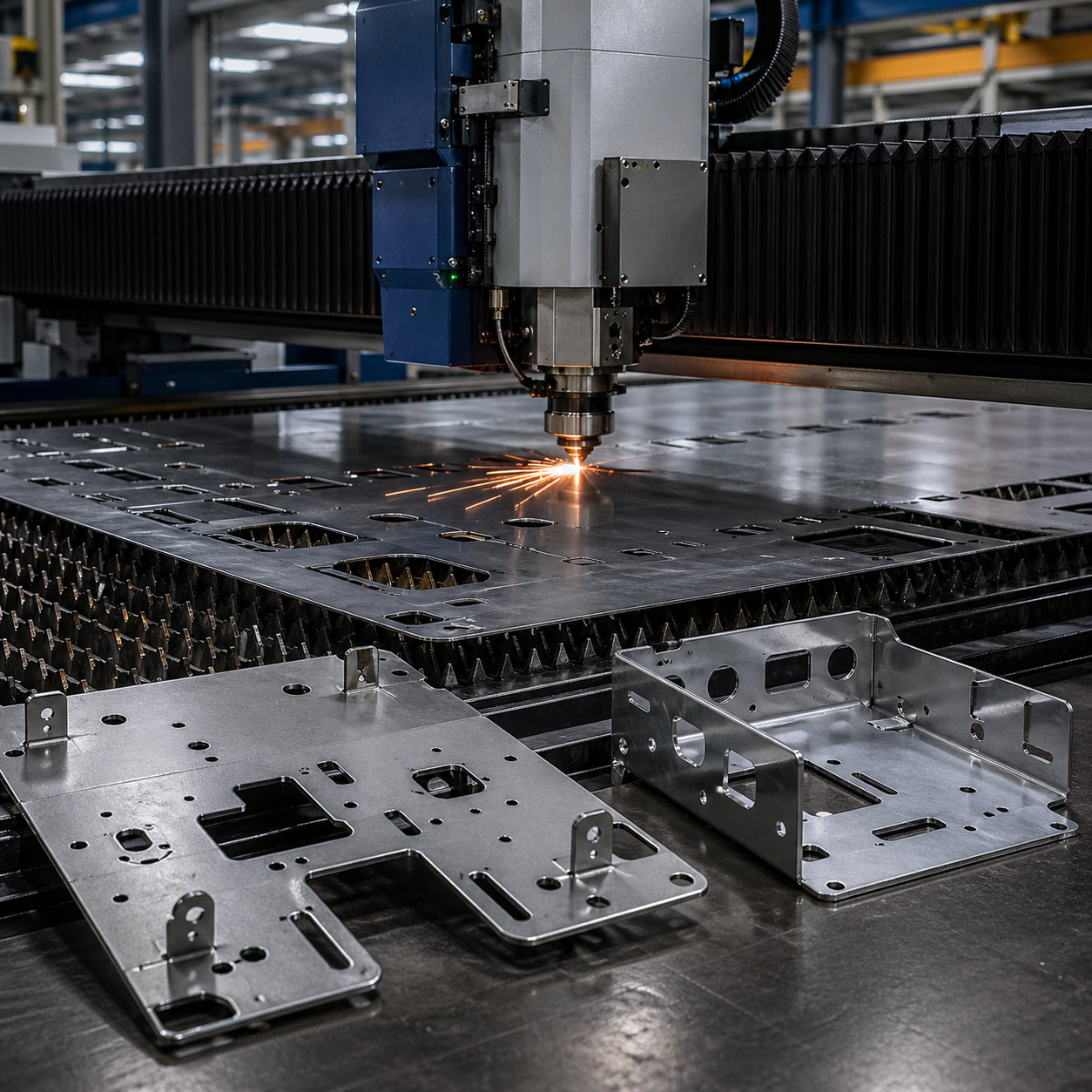

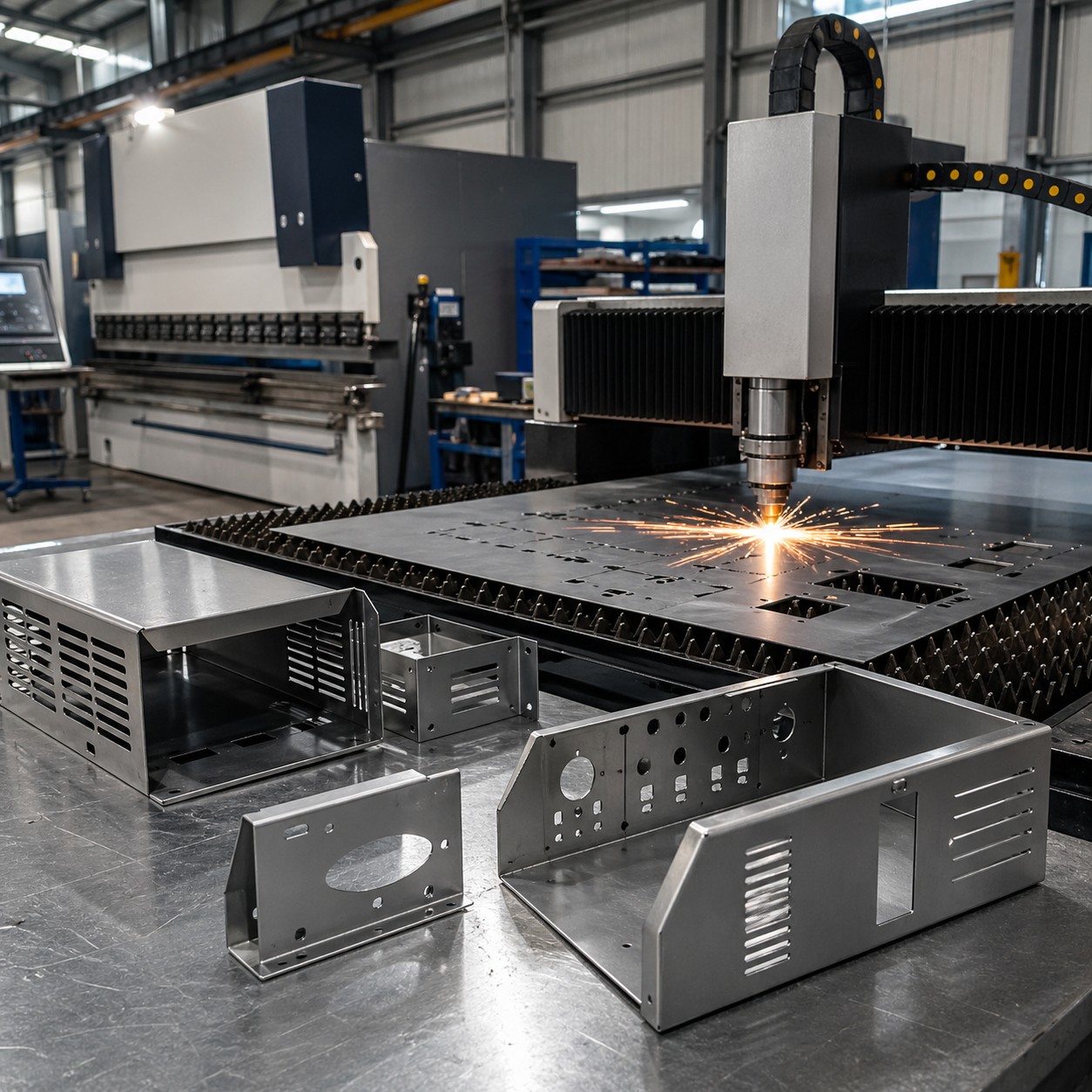

Laser Cutting: This technique utilizes a high-powered laser beam to cut through sheet metal. It’s known for its precision, making it suitable for intricate designs. Laser cutting can achieve tight tolerances, often within ±0.1mm, which is crucial for parts requiring high accuracy. It’s particularly effective for thin materials and complex geometries.
Waterjet Cutting: Waterjet cutting employs a high-pressure stream of water mixed with abrasives to cut through materials. This method is ideal for heat-sensitive metals, as it does not generate heat, preserving the material’s properties. Waterjet cutting is versatile and can handle thicker materials, making it a popular choice for various applications.
CNC turret punching uses computer-controlled machines to create holes, slots, and cutouts in sheet metal. This technique is efficient for producing multiple features quickly and accurately. CNC turret punches can handle complex patterns and integrated features, ensuring high repeatability. The flexibility of CNC technology allows for quick adjustments and modifications during the prototyping phase.
Bending and forming are critical processes in shaping sheet metal into desired geometries. Using tools like press brakes, manufacturers can create complex angles and contours. This method ensures that parts maintain their intended design fidelity. A well-executed bending process can significantly enhance the functionality of the final product.
Welding is a common technique for assembling sheet metal components. Methods such as MIG (Metal Inert Gas), TIG (Tungsten Inert Gas), and spot welding are frequently used. These techniques provide strong, precise joins that are essential for structural integrity. In addition to welding, other joining methods like riveting or bolting are employed, especially when disassembly is required for testing or modifications.
Surface finishing is vital for enhancing the durability and appearance of sheet metal prototypes. Techniques like powder coating, anodizing, and chem film application improve corrosion resistance and provide aesthetic appeal. Proper surface finishing not only protects the metal but also ensures it meets visual and functional expectations.
By leveraging these techniques, manufacturers can create effective sheet metal prototypes that facilitate thorough testing and validation. The choice of method will depend on the specific requirements of the project, including material type, design complexity, and production volume.
Tip: When selecting cutting and forming techniques, consider the material properties and the complexity of your design to ensure optimal results in your sheet metal prototypes.
When it comes to sheet metal prototyping, choosing the right material is crucial. The material not only affects the prototype's strength and durability but also its overall performance in real-world applications. Engineers must consider various factors when selecting materials to ensure the prototype accurately reflects the intended final product.
Aluminum: Lightweight and corrosion-resistant, aluminum is a popular choice for prototypes. Grades like 5052 and 6061 are favored for their excellent formability and strength. Aluminum prototypes are often used in applications requiring weight considerations, such as automotive and aerospace components.
Stainless Steel: Known for its high strength and corrosion resistance, stainless steel is ideal for prototypes that must withstand harsh environments. Common grades include 304 and 316, which offer good weldability and mechanical properties, making them suitable for various applications.
Mild Steel: Often used due to its affordability and good mechanical properties, mild steel is easy to work with and can be used for a wide range of prototypes. It’s commonly chosen for structural parts where high strength is required.
Copper and Brass: These materials are selected for their excellent electrical and thermal conductivity. Copper is often used for electrical components, while brass is favored for decorative applications due to its aesthetic appeal.
Mechanical Properties: The strength, ductility, and hardness of the material directly impact the prototype's performance. Engineers must ensure the selected material can withstand the intended operational stresses.
Corrosion Resistance: Depending on the application, the material’s ability to resist corrosion is vital. For example, components exposed to moisture or chemicals require materials like stainless steel or treated aluminum.
Formability: The ease with which a material can be shaped into the desired form is essential for prototyping. Materials like aluminum and mild steel offer excellent formability, allowing for complex designs.
Cost: Budget constraints often dictate material selection. While high-performance materials may be ideal, cost-effective options should also be considered, especially for low-volume production.
Availability: The chosen material should be readily available to avoid delays in the prototyping process. Engineers should select materials that can be sourced quickly to maintain project timelines.
Sustainability is becoming increasingly important in manufacturing. When selecting materials, engineers should consider the environmental impact, including:
Recyclability: Materials like aluminum and steel are highly recyclable, reducing waste and promoting sustainability.
Production Footprint: The energy and resources required to produce the material can influence its selection. Opting for locally sourced materials can minimize transportation emissions.
By carefully considering these factors, engineers can select materials that not only meet functional requirements but also align with production goals and sustainability initiatives. The right material choice is essential for creating prototypes that accurately reflect the final product, ensuring effective testing and validation.
Sheet metal prototyping is widely utilized across various industries due to its versatility and efficiency in creating functional parts. Here’s a closer look at some of the key applications where sheet metal processing plays a crucial role:
In the automotive sector, sheet metal prototyping is essential for producing components such as brackets, panels, and housings. These parts are integral to vehicle assembly and performance. Rapid prototyping techniques allow manufacturers to test new designs for durability, fit, and functionality before full-scale production begins. This process not only accelerates design validation but also helps reduce development time and costs, ensuring that only the most reliable components are produced.
The aerospace industry demands lightweight and high-strength components that meet strict safety regulations. Sheet metal prototyping enables the creation of critical structural components, such as frames, engine parts, and protective panels. By using rapid prototyping, aerospace manufacturers can test and refine designs early in the development process, ensuring that parts can withstand the extreme conditions of flight without compromising performance.
In the medical field, sheet metal prototyping is vital for developing a wide range of components, including surgical instruments, equipment enclosures, and diagnostic tools. The ability to quickly produce custom metal parts helps streamline the development process, ensuring that devices meet stringent regulatory requirements and performance standards essential for patient safety and reliability.
Sheet metal prototyping is commonly used to create custom enclosures and casings for consumer electronics, such as smartphones, laptops, and tablets. This process allows manufacturers to design durable, high-quality enclosures that protect sensitive electronic components. Techniques like die stamping and corner stamping are employed to form precise shapes, ensuring that the casings maintain structural integrity while providing the necessary design features.
In industrial settings, sheet metal prototyping is frequently used to fabricate machine guards, electrical boxes, and structural supports. These components are essential for testing designs for strength and functionality in demanding environments. For instance, custom supports may be utilized to reinforce heavy machinery, ensuring stability and safety during operation. The flexibility of sheet metal prototyping allows manufacturers to create tailored solutions that meet specific industrial needs.
By leveraging sheet metal prototyping, industries can create accurate, functional parts that facilitate thorough testing and validation. This approach not only enhances product quality but also accelerates time-to-market, making it an invaluable tool in today’s competitive landscape.
Sheet metal prototyping is essential for creating functional parts quickly and efficiently. This process involves several key steps, including design, material selection, cutting, forming, and assembly. The advantages of sheet metal processing include fast turnaround times, cost-effectiveness for low-volume production, and high accuracy. As technology advances, sheet metal prototyping continues to evolve, enhancing its role in various industries. Dingyi offers innovative solutions that provide exceptional value, ensuring high-quality prototypes and streamlined production processes.
A: Sheet metal processing in prototyping refers to the systematic approach of creating functional parts from sheet metal, enabling engineers to verify designs and test functionality before full-scale production.
A: Material selection is crucial in sheet metal processing as it impacts the prototype's strength, durability, and performance, ensuring accurate functional testing.
A: Unlike 3D printing, which often uses plastics, sheet metal processing provides real-world mechanical properties essential for functional testing of prototypes.
A: Benefits of sheet metal processing include fast turnaround times, cost-effectiveness for low-volume production, and high accuracy for custom designs.
A: Common issues include material warping, incorrect tolerances, and poor weld quality, which can usually be addressed by adjusting design parameters or fabrication techniques.
