Have you ever wondered how complex metal parts are made so quickly and precisely? Sheet metal stamping is the answer. This process is vital in modern manufacturing, allowing for the efficient production of high-quality components.
In this article, we’ll explore the ins and outs of progressive die stamping, its advantages, and its applications across various industries.

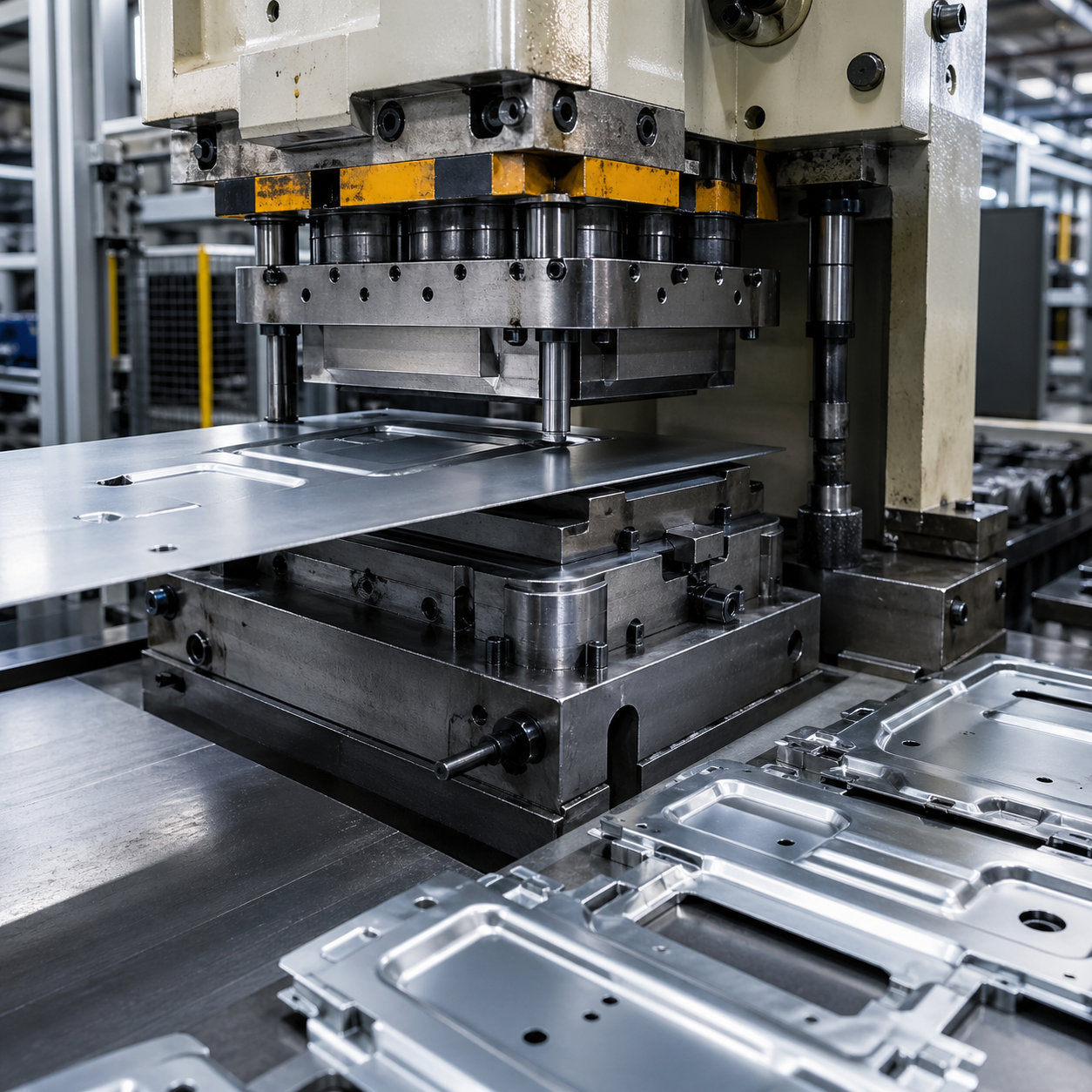

The sheet metal stamping process begins with material feeding, a critical step that sets the stage for the entire operation. Typically, a coil of metal—such as steel, aluminum, or brass—is unwound and fed into the stamping press. This feeding is usually automated, utilizing a servo feeder that ensures precision in the advancement of the metal strip. The feeder pulls the strip through the die at carefully controlled intervals, synchronized with the press stroke. This precision is essential, as it dictates how accurately and consistently the material will be processed in subsequent operations.
The heart of progressive die stamping lies in its multiple die stations. Each station is designed for a specific operation, such as punching, bending, or coining. As the metal strip moves through the die, it advances incrementally with each press stroke, allowing each station to perform its designated task. For example:
Piercing: Creates holes or cutouts in the metal.
Punching: Removes material to form specific shapes.
Bending: Folds the metal to create desired angles.
Coining: Applies pressure to create fine details or embossing.
Blanking: Cuts out the final part shape from the strip.
This sequential operation allows for high efficiency, as multiple processes occur simultaneously without the need to remove the workpiece from the die.
Precision is paramount in sheet metal stamping. To achieve this, progressive dies incorporate alignment features such as conical pilots or guide pins. These components ensure that the metal strip remains correctly positioned as it advances through each station. The tolerances can be maintained within ±0.001 inches (0.025 mm), which is crucial for ensuring uniformity across thousands or even millions of parts.
Moreover, the die's design plays a significant role in maintaining this precision. High-rigidity structures and advanced feeding mechanisms work together to minimize any potential misalignments. The result is a streamlined process that not only enhances accuracy but also reduces the risk of defects in the final product.
Once all operations are completed, the finished part is automatically ejected from the die. This is typically done using an ejection mechanism that ensures smooth removal without damaging the part. The leftover material, often referred to as the carrier strip, is either wound up for recycling or cut off for disposal. This efficient handling of materials further contributes to the overall effectiveness of the stamping process.

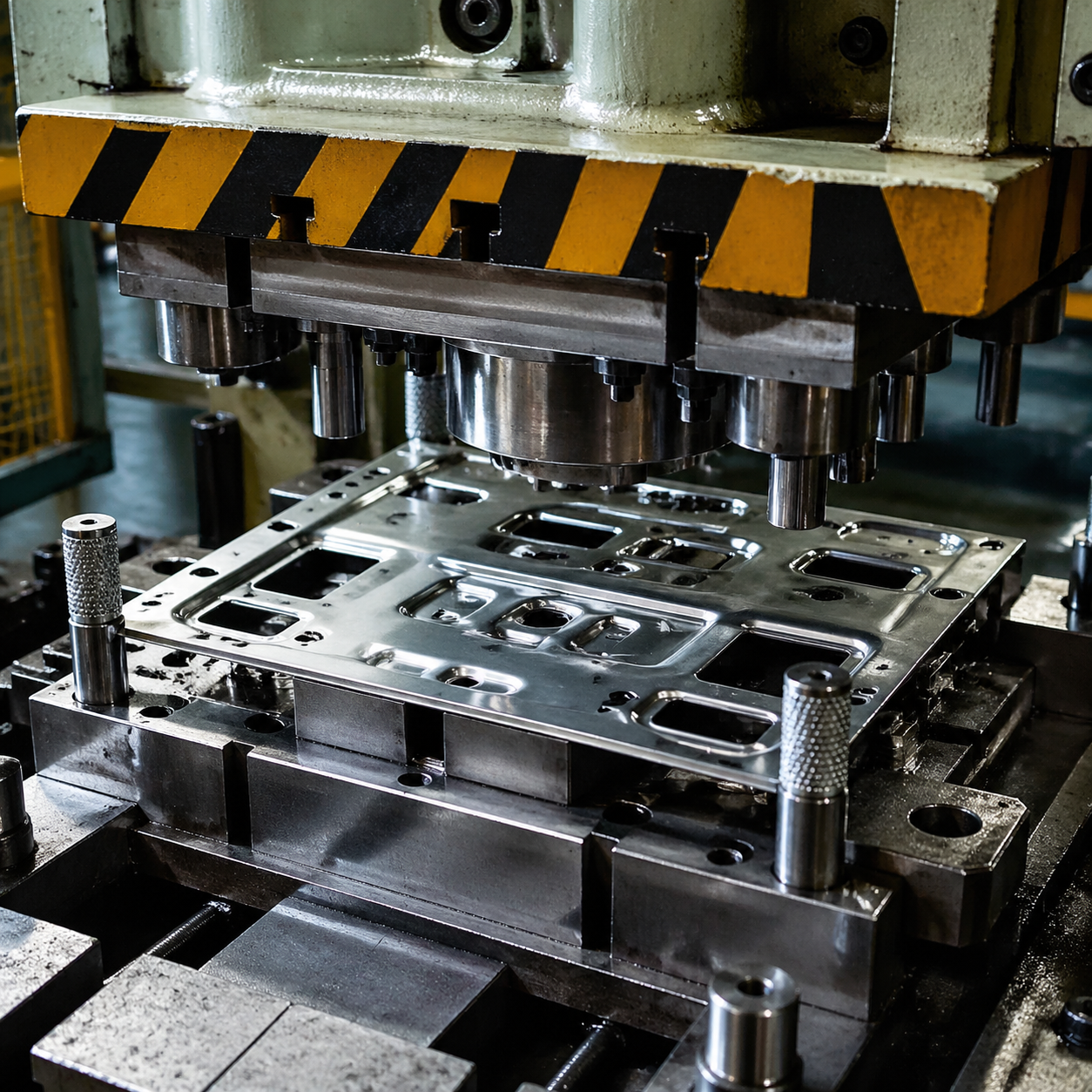

The die set is the backbone of the progressive die stamping process. It consists of two main components: the upper die shoe and the lower die shoe. These plates are crucial for aligning and securing all the tooling elements present in the die. The upper die shoe houses the punches, while the lower die shoe contains the die blocks and other components. This configuration ensures that the die remains stable during operation, allowing for precise stamping with minimal movement or misalignment.
The die set also provides the necessary support and rigidity to withstand the immense forces generated during stamping. A well-designed die set minimizes wear and tear, extends the lifespan of the tooling, and contributes to consistent part quality across production runs.
Punches are essential components in the stamping process, responsible for cutting or forming the metal strip into the desired shapes. Each punch is designed for a specific operation, such as piercing, blanking, or coining. The design of punches must consider factors like material thickness, shape complexity, and required tolerances. Precision is key, as even minor deviations can lead to significant quality issues in the final product.
Strippers work in tandem with punches to ensure smooth operation. After each stamping cycle, the stripper plate removes the formed part from the punch. This action prevents the part from sticking to the punch, allowing for efficient ejection and maintaining the pace of production. Properly functioning strippers are vital for reducing downtime and ensuring continuous operation.
Guides and pilots are critical for maintaining precision throughout the stamping process. These components ensure that the metal strip remains correctly aligned as it moves through the various die stations. Typically made of hardened steel, guides help maintain consistent clearance between the punch and die, which is essential for achieving tight tolerances.
Pilots, often in the form of conical pins, engage with pilot holes punched into the metal strip during the initial stages of the process. This engagement provides a reference point for alignment, allowing for precise positioning as the strip advances through each station. By correcting any potential misalignments, pilots help eliminate cumulative errors that can occur during high-speed production.
In summary, the die set, punches, strippers, guides, and pilots work together to create a cohesive system that facilitates the efficient and accurate production of stamped parts. Each component plays a vital role in ensuring that the stamping process runs smoothly, producing high-quality components at scale.
One of the standout features of sheet metal stamping, particularly progressive die stamping, is its remarkable production speed. This method allows manufacturers to produce parts at an astonishing rate, often achieving hundreds or even thousands of parts per minute. This high throughput is essential for industries where time-to-market is crucial, such as automotive and electronics. By efficiently utilizing a single die set for multiple operations, manufacturers can streamline processes, minimizing downtime between each step.
Cost efficiency is another significant advantage of sheet metal stamping. By integrating multiple operations into one process, progressive die stamping reduces labor and handling costs. For instance, it eliminates the need for secondary operations that would typically require additional machinery and labor. Studies show that progressive die stamping can reduce setup time by up to 38% compared to multi-slide methods, which is a substantial saving for manufacturers. Additionally, the automation involved in this process reduces the need for manual intervention, further cutting operational costs.
Precision is paramount in manufacturing, and sheet metal stamping excels in this area. The process maintains tight tolerances, often within ±0.001 inches (0.025 mm). This consistency is achieved through fixed tooling and automated feeding systems that ensure each part is produced uniformly. With progressive die stamping, parts are produced in a continuous cycle, which helps to eliminate cumulative errors that can occur when transferring parts between multiple machines. The result is a high-quality output that meets the stringent requirements of industries such as aerospace and medical devices.
Progressive die stamping is designed to optimize material usage, which is critical in reducing waste and costs. The layout of the strip is carefully planned to minimize scrap during production. Techniques such as nesting allow parts to be arranged efficiently along the metal strip, maximizing material utilization. Furthermore, leftover carrier strips can often be recycled, adding to the overall sustainability of the process.
The modern manufacturing landscape increasingly favors automation, and sheet metal stamping is well-suited for this trend. Progressive die stamping can easily integrate with robotic feeders, vision systems, and quality inspection tools. This compatibility supports lights-out manufacturing, where operations can continue without human intervention, enhancing productivity and reducing labor costs.
Sheet metal stamping plays a crucial role in the automotive industry, where precision and durability are paramount. This process is widely used to manufacture various components, including structural brackets, body panels, and engine parts. For instance, progressive die stamping allows for the rapid production of intricate parts like seat frames, which require high strength and tight tolerances. Additionally, the ability to produce complex shapes in a single operation reduces the need for secondary processes, streamlining production and minimizing costs.
The automotive sector benefits from the high-speed capabilities of progressive die stamping, enabling manufacturers to meet the increasing demand for vehicles. By producing parts at high volumes, automakers can maintain competitive pricing while ensuring quality and reliability in their products.
In the electronics industry, sheet metal stamping is essential for creating small, intricate components that require precise specifications. Parts such as connectors, terminals, and heat sinks are commonly produced using this method. The ability to achieve tight tolerances and consistent quality is critical, as these components often have to fit within compact spaces and withstand various environmental conditions.
Progressive die stamping allows for the efficient production of these parts, reducing material waste and lowering overall costs. The automation involved in this process further enhances production speed, making it ideal for the fast-paced electronics market where time-to-market is crucial.
The aerospace industry also relies heavily on sheet metal stamping for manufacturing lightweight yet strong components. Parts like brackets, fasteners, and structural elements must meet stringent safety and performance standards. Progressive die stamping provides the precision needed to create these components while minimizing material waste, which is vital given the high costs associated with aerospace manufacturing.
Similarly, in the medical device sector, sheet metal stamping is used to produce components that require high precision and cleanliness. Surgical instruments, implantable devices, and diagnostic equipment parts are often made using this method. The ability to maintain tight tolerances ensures that these components function correctly and safely, adhering to strict regulatory requirements.
Overall, the applications of sheet metal stamping span various industries, including automotive, electronics, aerospace, and medical devices. Its ability to produce high-quality, complex parts at speed makes it a preferred choice for manufacturers looking to optimize their production processes. As industries continue to evolve, the demand for efficient and precise manufacturing methods like progressive die stamping will only grow.
When designing parts for sheet metal stamping, geometry and complexity play crucial roles. It's essential to avoid overly intricate shapes that require deep draws or multiple bending directions. Such designs can lead to production challenges, including material cracking and increased die wear. Ideally, bends should have appropriate radii to prevent stress concentration, which can weaken both the part and the die. Additionally, sharp corners should be minimized, as they can create stress points that may lead to failure during forming.
A good practice is to design parts with a balance between complexity and manufacturability. For instance, while creating a bracket, consider using a simple L-shape instead of a convoluted design with unnecessary curves. This not only simplifies the stamping process but also enhances the part's strength.
Material selection is another critical factor in sheet metal stamping. The chosen material must meet the part's strength, formability, and cost requirements. Common materials include:
Mild Steel: Cost-effective and easy to form, making it suitable for various applications.
Stainless Steel: Offers durability and corrosion resistance, ideal for parts exposed to harsh environments.
Aluminum: Lightweight with good formability, often used in automotive and aerospace applications.
Brass and Copper: Excellent for electrical components due to their conductivity.
Each material has its unique properties and processing characteristics, which can influence the design. For example, aluminum may require larger bend radii compared to steel due to its tendency to crack under stress.
The strip layout, or progression design, is vital for maximizing material utilization and die efficiency. A well-planned layout minimizes scrap and optimizes the use of available material. Key considerations include:
Nesting: Use software to arrange parts efficiently along the strip, reducing waste.
Web Width: Ensure sufficient web width to maintain the strip's strength during feeding. A wider web can help prevent deformation and misalignment.
Part Orientation: Position parts to minimize movement and handling during the stamping process. This can enhance production speed and reduce the risk of errors.
By carefully designing the strip layout, manufacturers can achieve higher yields and lower production costs. This attention to detail can make a significant difference in the overall efficiency of the stamping process.
Establishing realistic tolerances is essential. While tighter tolerances can enhance part quality, they also increase production complexity and costs. It's wise to specify tighter tolerances only for critical dimensions and relax them where possible. This approach can help manage production costs effectively.
Surface finish is another consideration. Depending on the application, parts may require secondary operations like plating or deburring to achieve the desired finish. Understanding these needs early in the design process can streamline production and ensure that the final product meets specifications.
Incorporating pilot holes or alignment features is crucial for maintaining accuracy throughout the stamping process. These features help ensure that the metal strip remains correctly positioned as it moves through the die stations. Conical pilots are particularly effective for high-precision alignment, as they engage with pre-punched pilot holes, correcting any misalignments that may occur during the feeding process.
By focusing on these design considerations, manufacturers can enhance the efficiency and effectiveness of their sheet metal stamping operations, leading to higher quality parts and reduced waste.
Sheet metal stamping, especially progressive die stamping, offers high production speed and cost efficiency. It ensures consistent quality and precision while optimizing material use. As industries evolve, automation and advanced technology will drive future trends in stamping. Manufacturers should consider design for manufacturability to enhance efficiency. For those seeking reliable solutions, Dingyi provides innovative stamping products that deliver exceptional value and quality, ensuring your manufacturing needs are met effectively.
A: Sheet metal stamping is a manufacturing process that uses dies to shape and cut metal sheets into specific forms, allowing for high precision and efficiency in producing parts.
A: The process involves feeding a coil of metal into a stamping press, where multiple die stations perform operations like punching and bending to create finished parts.
A: Sheet metal stamping offers high production speeds, cost efficiency, and consistent quality, making it ideal for industries like automotive and electronics.
A: Initial tooling costs for sheet metal stamping can be high, often requiring significant investment, but it becomes cost-effective for high-volume production runs.
A: The benefits include high-speed production, material efficiency, consistent quality, and compatibility with automation, enhancing overall manufacturing processes.
A: Troubleshooting in sheet metal stamping involves checking for misalignment, tool wear, and ensuring proper maintenance of dies and equipment to prevent defects.
