Are you curious about how everyday metal products are made? Sheet metal fabrication is a vital process in manufacturing, shaping metals into essential components. In this article, we’ll explore what sheet metal fabrication is, its significance, and the key processes involved. Get ready to dive into the world of metalworking!
Sheet metal fabrication primarily involves working with various metals, each chosen for specific properties suited to different applications. Common materials include:
Steel: Widely used for its strength and durability. Carbon steel is typical for structural applications, while stainless steel offers corrosion resistance.
Aluminum: Known for its lightweight and corrosion-resistant properties. It’s often used in aerospace and automotive applications.
Copper: Valued for its excellent electrical conductivity, making it ideal for electrical components.
Brass: A copper-zinc alloy, brass is often used for decorative purposes and in plumbing fixtures due to its resistance to corrosion.
Choosing the right material is crucial as it affects the performance, durability, and cost of the final product.

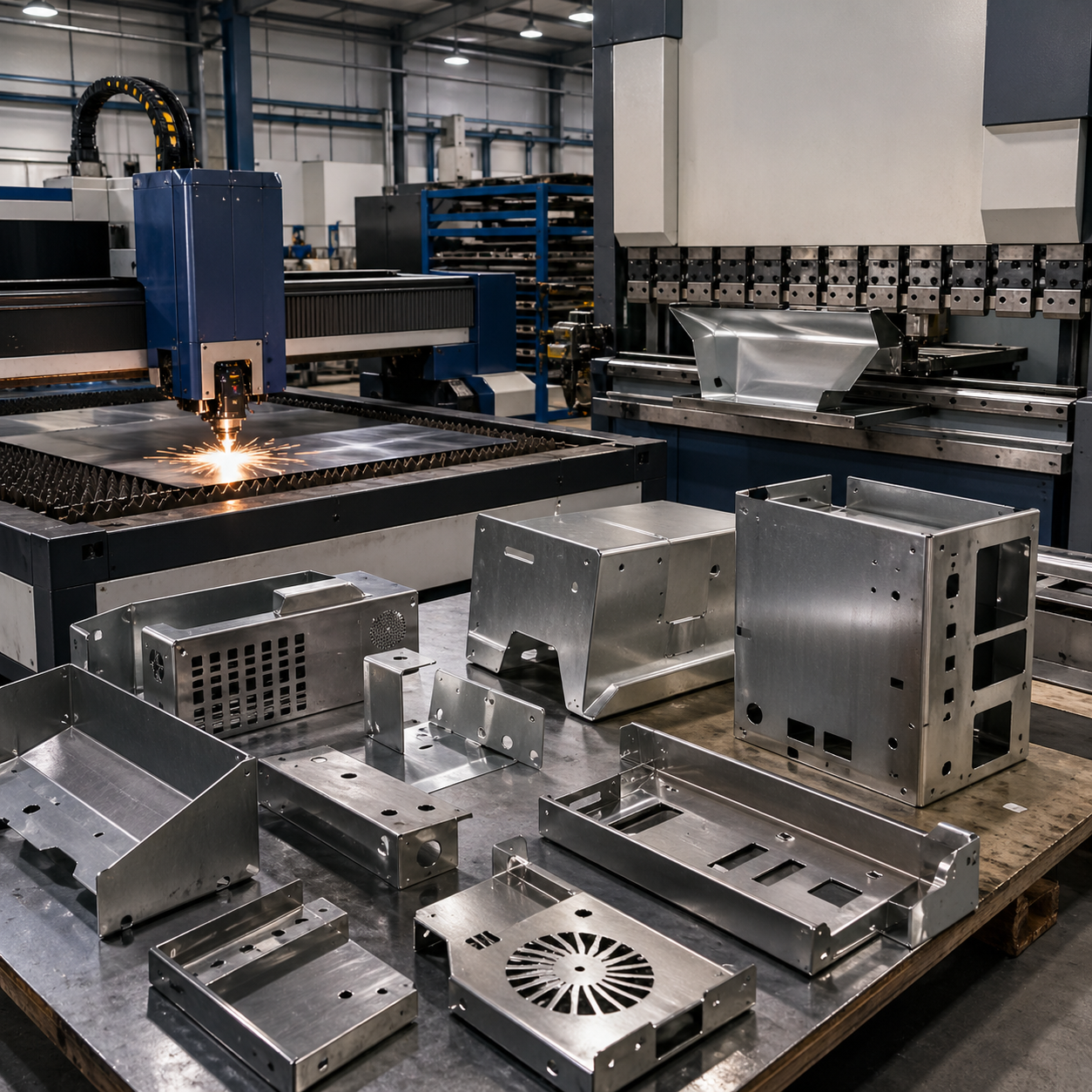

Sheet metal fabrication employs several techniques to transform flat sheets into finished products. Key processes include:
Cutting: This is the initial step, where sheets are cut to size using methods such as laser cutting, plasma cutting, or mechanical shearing. Laser cutting is favored for its precision, while plasma cutting is effective for thicker materials.
Bending: After cutting, sheets are bent into desired shapes. This is done using press brakes, which apply force to fold the material along specified lines. Techniques like air bending and V-bending are common.
Forming: This involves creating features such as flanges or embossing on the sheet metal. Forming techniques manipulate the metal without removing material, allowing for complex shapes.
Joining: Once formed, parts may need to be assembled. Common joining methods include welding, riveting, and using fasteners. Welding creates strong, permanent connections, while riveting allows for disassembly.
Sheet metal fabrication is integral to various industries due to its versatility. Common applications include:
Automotive: Used for chassis, body panels, and brackets.
Aerospace: Essential for lightweight components, such as airframe structures and engine housings.
Construction: Provides structural elements like frames, roofing, and HVAC ductwork.
Electronics: Used for enclosures and housings that protect sensitive components.
Medical Devices: Fabricated parts for equipment and surgical instruments, ensuring precision and reliability.
The adaptability of sheet metal fabrication allows manufacturers to create everything from simple brackets to complex machinery components, meeting diverse industry requirements.
When comparing sheet metal fabrication and CNC machining, it's essential to understand their core principles.
Sheet Metal Fabrication focuses on shaping flat sheets of metal. The process typically involves cutting, bending, and joining these sheets to create a final product. It’s a deformation-based process where metal is manipulated without removing material, making it efficient for producing thin-walled structures. The main steps include:
Cutting: Techniques like laser cutting or punching create the desired shapes.
Bending: Press brakes shape the metal into three-dimensional forms.
Joining: Parts are assembled through welding, riveting, or using fasteners.
CNC Machining, on the other hand, is a subtractive manufacturing process. Here, material is removed from a solid block (billet) to achieve the desired shape. CNC machines utilize computer-controlled tools to ensure high precision. The main steps include:
Programming: CAD models are converted into G-code for machine instructions.
Machining: Tools cut away material to form the part according to the programmed design.
Post-processing: Final touches like deburring and surface finishing enhance the part's quality.
Sheet metal fabrication has several advantages:
Cost-Effectiveness: Especially for large production runs, the cost per unit decreases significantly due to high material utilization and rapid processing speeds.
Speed: Processes like stamping can produce parts quickly, making it ideal for high-volume production.
Material Efficiency: Minimal waste is generated since sheets are cut to size before bending and joining.
Despite its benefits, sheet metal fabrication has limitations:
Geometric Complexity: It struggles with intricate designs. Closed cavities and complex 3D shapes are challenging to achieve.
Precision: While it can produce accurate parts, achieving tolerances as tight as those in CNC machining can be difficult. Factors like bending and welding can introduce errors.
Material Thickness: Fabrication typically works best with thinner materials (usually up to 6mm). For thicker materials, CNC machining is often preferred.
Cutting is the foundational step in sheet metal fabrication, where large sheets of metal are transformed into specific shapes and sizes. Various techniques are employed to achieve precise cuts, each with its own advantages:

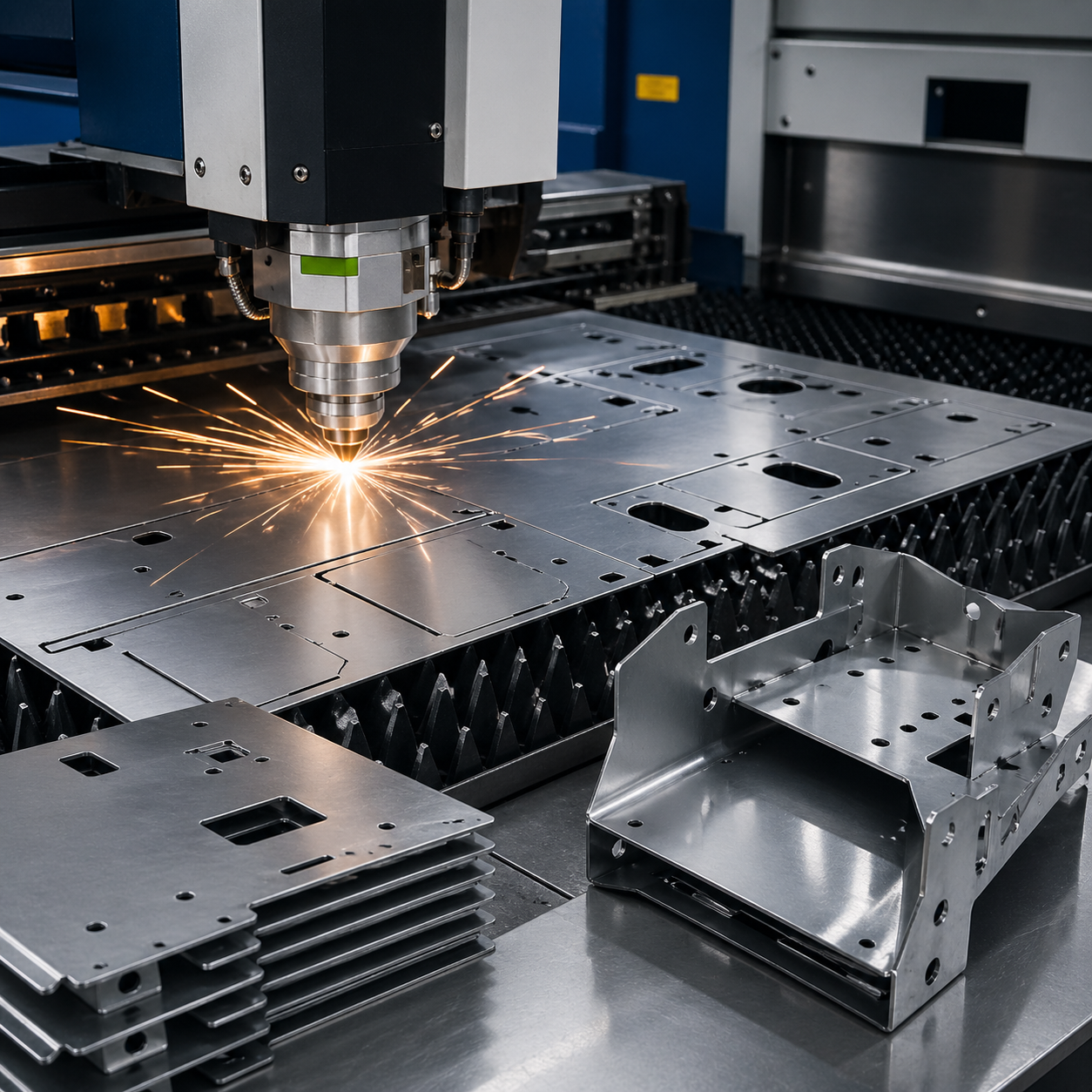

Laser Cutting: This method uses a high-powered laser beam to melt or vaporize the material. Laser cutting offers exceptional precision, making it ideal for intricate designs and fine details. It can handle a wide range of materials and thicknesses, typically up to 25mm for steel, depending on the machine's capability.
Plasma Cutting: Plasma cutting utilizes a high-temperature plasma arc to melt the metal. It's particularly effective for thicker materials, often exceeding 6mm. While it may not achieve the same level of precision as laser cutting, it's faster and often more cost-effective for thicker sheets.
Mechanical Shearing: This method involves using shears to cut through metal sheets. It’s a straightforward and efficient technique for producing straight cuts on sheets up to 6mm thick. Mechanical shearing is often used for larger production runs due to its speed.
Each cutting technique has its unique benefits, and the choice depends on factors like material type, thickness, and the complexity of the design.
Once the metal sheets are cut, the next step is bending and forming. This process shapes the flat sheets into three-dimensional structures. Key methods include:
Press Braking: This is the most common method of bending metal sheets. A press brake applies force to the sheet, creating bends at specified angles. Techniques like air bending and V-bending are commonly used, allowing for various bend angles and shapes.
Roll Bending: In this technique, the sheet is passed through rollers to achieve a curved shape. It's often used for creating cylindrical or arc-shaped components.
Stamping: Stamping involves pressing a die onto the sheet to create a specific shape or feature. This method is often used to produce large quantities of parts quickly.
These bending techniques enable manufacturers to create complex geometries, ensuring the final product meets design specifications.
After bending, the final stage involves joining the metal components to create a complete assembly. Common joining methods include:
Welding: This is the most prevalent joining method in sheet metal fabrication. Techniques like MIG (Metal Inert Gas) and TIG (Tungsten Inert Gas) welding are used to create strong, permanent bonds between metal pieces. Welding is ideal for structural applications where strength is critical.
Riveting: This method uses mechanical fasteners to join sheets together. Riveting is beneficial when disassembly is needed, as it allows for easy separation of components.
Adhesives and Fasteners: In some applications, adhesives or mechanical fasteners (like screws and bolts) are used to join parts. This method is often employed for lighter structures or when welding is not feasible.
Each joining method has its own strengths and is chosen based on the application requirements, such as strength, weight, and the need for disassembly.
When it comes to sheet metal fabrication, several factors play a critical role in determining the overall cost. Understanding these can help businesses make informed decisions and optimize their manufacturing processes. Here are the key factors:
Material Type: The choice of metal significantly impacts costs. Common materials like aluminum and steel vary in price. Stainless steel, while durable, is generally more expensive than standard carbon steel.
Material Thickness: Thicker materials typically cost more due to increased raw material expenses and the need for more robust cutting and forming equipment.
Production Volume: Higher production runs often lead to lower costs per unit. This is due to the dilution of fixed costs, such as tooling and setup, across a larger number of parts.
Complexity of Design: More intricate designs require advanced tooling and longer processing times, increasing costs. Simple shapes are more cost-effective to produce.
Finishing Processes: Additional processes like painting, coating, or polishing can add to the total cost. These are essential for enhancing durability and aesthetics but should be factored into the budget.
Labor Costs: Skilled labor is necessary for precise fabrication. The complexity of the job can influence labor costs, as more intricate tasks require more time and expertise.
When comparing costs between sheet metal fabrication and CNC machining, it’s essential to consider the specific requirements of the project. Here’s a breakdown:
Setup Costs: CNC machining typically incurs higher initial setup costs due to the need for programming and tooling. In contrast, sheet metal fabrication can often be more economical for larger runs, as the setup costs are spread over more units.
Material Waste: CNC machining is a subtractive process, meaning it removes material from a solid block. This often results in more waste compared to sheet metal fabrication, which can utilize flat sheets more efficiently.
Production Speed: For high-volume production, sheet metal fabrication is usually faster, especially for simple parts. CNC machining may take longer for complex geometries, impacting overall costs.
Prototype Costs: CNC machining is ideal for prototypes due to its flexibility and ability to create complex designs quickly. However, if a design can be simplified for sheet metal fabrication, it can also be cost-effective for prototyping.
To maximize cost efficiency in sheet metal fabrication, consider the following strategies:
Optimize Design for Fabrication: Simplifying designs can reduce material use and processing time. Collaborative design reviews can help identify areas for improvement.
Select the Right Material: Choosing a cost-effective material that meets performance requirements can significantly lower costs. Evaluate alternatives based on application needs.
Increase Production Volume: If feasible, increasing the order quantity can lower the per-unit cost. This is particularly beneficial for designs that are straightforward to produce.
Invest in Automation: Implementing automated processes can enhance production speed and reduce labor costs. Automated cutting and bending machines can improve efficiency.
Negotiate with Suppliers: Building strong relationships with material suppliers can lead to better pricing and terms, especially for bulk purchases.
Sheet metal fabrication and CNC machining serve distinct purposes in manufacturing. Sheet metal fabrication is efficient for producing high-volume, simple parts. It excels in cost-effectiveness and material efficiency. In contrast, CNC machining offers precision for complex designs but may incur higher costs. Understanding these differences helps businesses choose the right method for their projects. Dingyi provides innovative sheet metal fabrication solutions that enhance production efficiency and quality. Explore how Dingyi's products can add value to your manufacturing processes.
A: Sheet metal fabrication is the process of transforming flat sheets of metal into finished products through techniques like cutting, bending, and joining.
A: Sheet metal fabrication is utilized across various industries, including automotive, aerospace, construction, electronics, and medical devices, to create components and structures.
A: Sheet metal fabrication is often more cost-effective for high-volume production of simpler parts, whereas CNC machining excels in creating complex geometries with high precision.
A: Costs are influenced by material type, thickness, design complexity, production volume, and finishing processes in sheet metal fabrication.
A: Benefits of sheet metal fabrication include cost-effectiveness, speed, material efficiency, and the ability to create a wide range of products with varying shapes and sizes.
