Tube Surface Finishing Powder Coating, E-Coating, Plating Compared

Views: 0 Author: Site Editor Publish Time: 2026-06-02 Origin: Site

Inquire

DINGPRECISION | Tube Fabrication Series — Article C6

Tube Surface Finishing

Powder Coating, E-Coating, Plating Compared

DingPrecision Engineering Team | June 2026 | 8 min read

Three technologies dominate tube finishing for lifting columns. Each has strengths — but for telescoping tubes, one critical factor separates them: how they interact with the sliding interface between inner and outer tubes.

3 Technologies Compared

Factor	Powder Coating	E-Coating (Electrophoretic)	Zinc Plating
Thickness	60-120um	15-25um	5-15um
Salt spray resistance	500-1,500h	500-1,000h	72-500h
Color options	Unlimited (RAL)	Black only (typically)	Silver/gold/blue
UV resistance	Excellent	Good	N/A (indoor)
Edge coverage	Moderate (Faraday cage effect)	Excellent (uniform)	Excellent
Interior coverage	No (line-of-sight)	Yes (immersion)	Yes (immersion)
Masking required?	Yes - tube ends must be plugged	No - but coating inside tube may interfere with sliding	No
Cost per sqm	15-35 RMB	25-50 RMB	10-25 RMB
Environmental	Zero VOC, REACH compliant	Low VOC, RoHS compliant	Hex chrome concerns
DingPrecision capability	3 powder lines	Not in-house	Not in-house

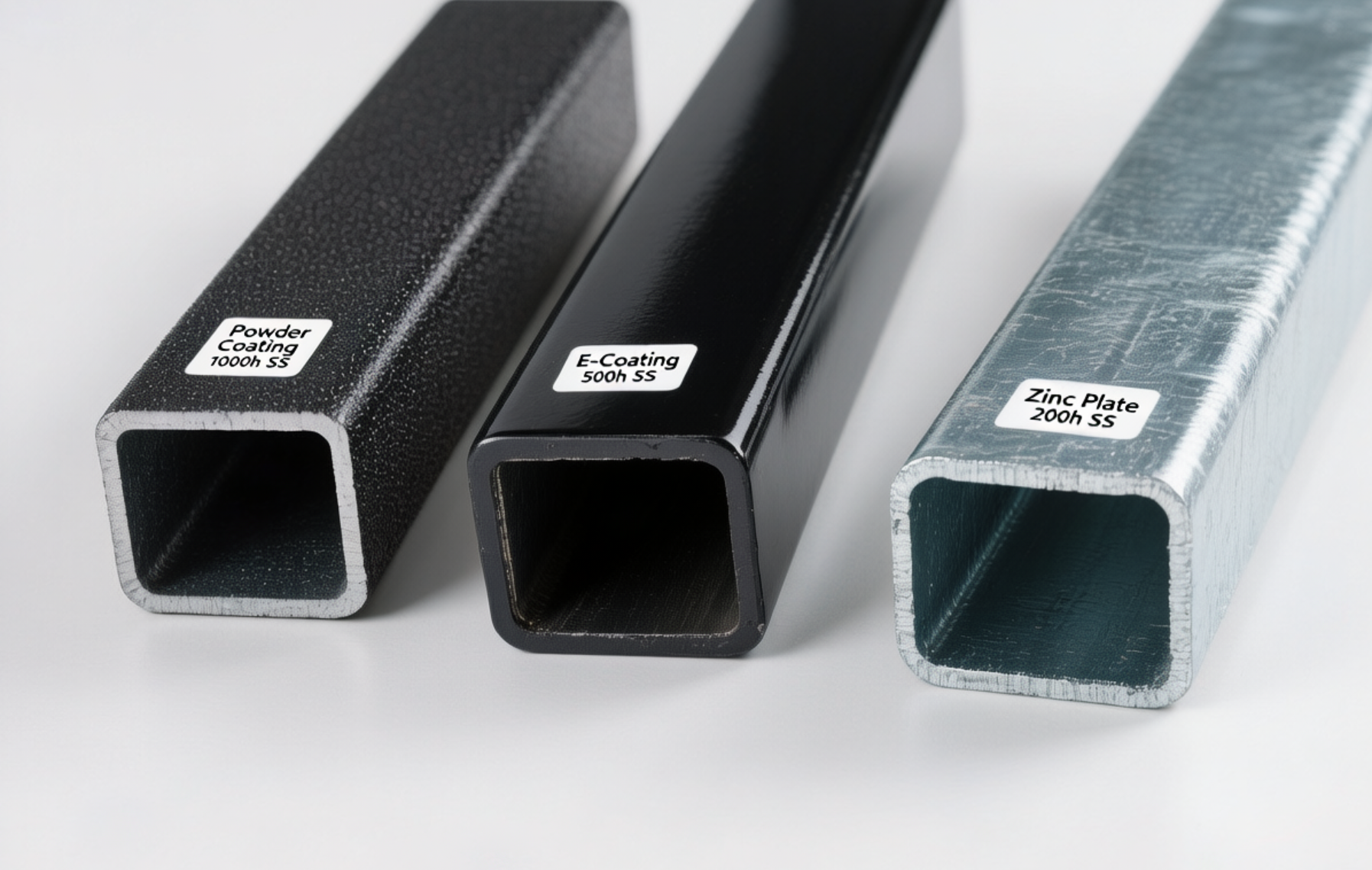

Fig. C6-01 — Three surface treatment samples side by side: powder coating (left), e-coating (center), zinc plating (right)

Powder Coating — The Industry Standard for Lifting Columns

For lifting column tubes, powder coating dominates for three reasons:

1. 1000-hour salt spray — DingPrecision's polyester powder achieves 1,000+ hours per GB/T 10125, doubling the 500-hour minimum required by EN 527 and BIFMA X5.5.

2. Color flexibility — Gaming desk brands demand specific RAL colors for brand identity. Powder delivers any RAL number.

3. Durability — 60-80um of cured polyester resists scratching during assembly, shipping, and daily use.

The challenge: masking. Because powder is applied electrostatically (line-of-sight), tube interiors are naturally uncoated — which is actually desirable for the sliding interface. But tube ends must be physically plugged to prevent overspray from depositing on the critical 50mm zone where the inner tube enters and exits.

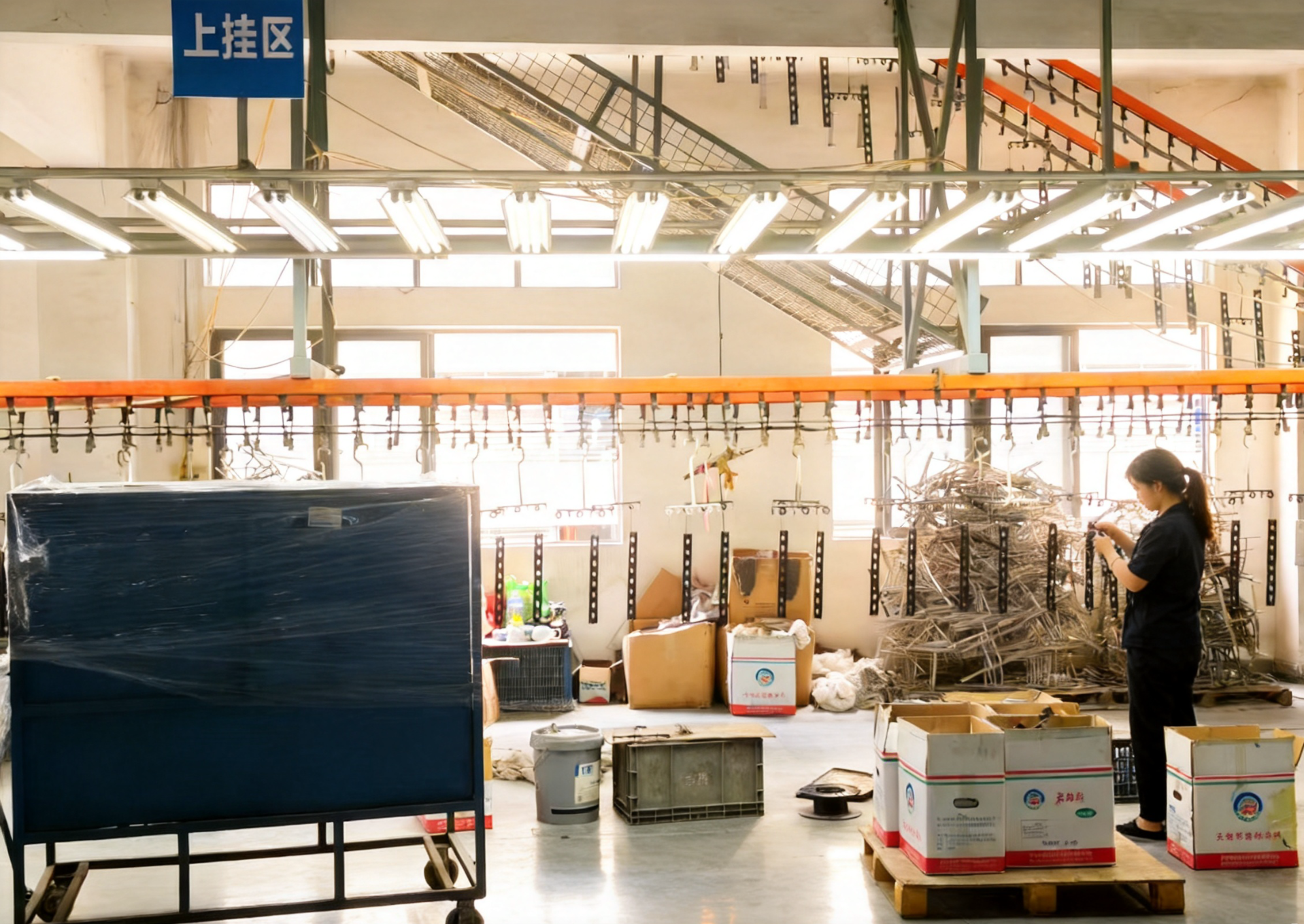

Fig. C6-02 — DingPrecision automated powder coating line: overhead conveyor carrying rectangular tubes through spray booth

E-Coating — Automotive-Grade, But Thinner

E-coating (also called electrocoating or electrophoretic deposition) submerges the entire tube in a paint bath and uses electric current to deposit a uniform film. It's the standard for automotive chassis components.

Advantage: Uniform coverage — even inside tubes, inside corners, inside recessed weld zones. No Faraday cage effect. No masking needed because the entire surface is coated.

Disadvantage for lifting columns: The 15-25um film is thinner than powder coating and offers less scratch resistance. More critically, e-coating deposits inside the outer tube — which means the inner sliding surface is now coated. This changes the clearance equation. And e-coating is typically only available in black, limiting color options.

DingPrecision's position: We do not operate an in-house e-coating line. For customers specifically requiring e-coating (typically automotive-tier applications), we coordinate with qualified subcontractors — but we recommend powder coating for 95% of lifting column applications.

Zinc Plating — Cost-Effective, Limited Durability

Zinc plating provides sacrificial corrosion protection at the lowest cost. The zinc corrodes preferentially, protecting the steel substrate.

Best for: Indoor, low-humidity environments. Budget desks where the column is hidden inside a decorative shroud.

Not for: Outdoor use, coastal environments, or premium products where visible corrosion within 2-3 years is unacceptable.

DingPrecision's position: Available through partner platers, but we default to powder coating for lifting columns unless the customer specifically requests plating with documented acceptance of the lower corrosion resistance.

Salt Spray — The Number That Matters

Standard	Minimum Hours	DingPrecision Actual	Test Method
GB/T 10125 (neutral salt spray)	—	1,000h	5% NaCl, 35C, continuous spray
EN 527-3 requirement	500h	2x requirement	Per standard
BIFMA X5.5 reference	500h (per ASTM B117)	2x requirement	ASTM B117 equivalent
Automotive Tier 1	720h (e-coat)	—	Per OEM spec

1,000 hours of salt spray resistance means the tube will withstand over 40 days of continuous salt fog exposure without red rust. In real-world indoor use, this translates to 10+ years of corrosion-free service.

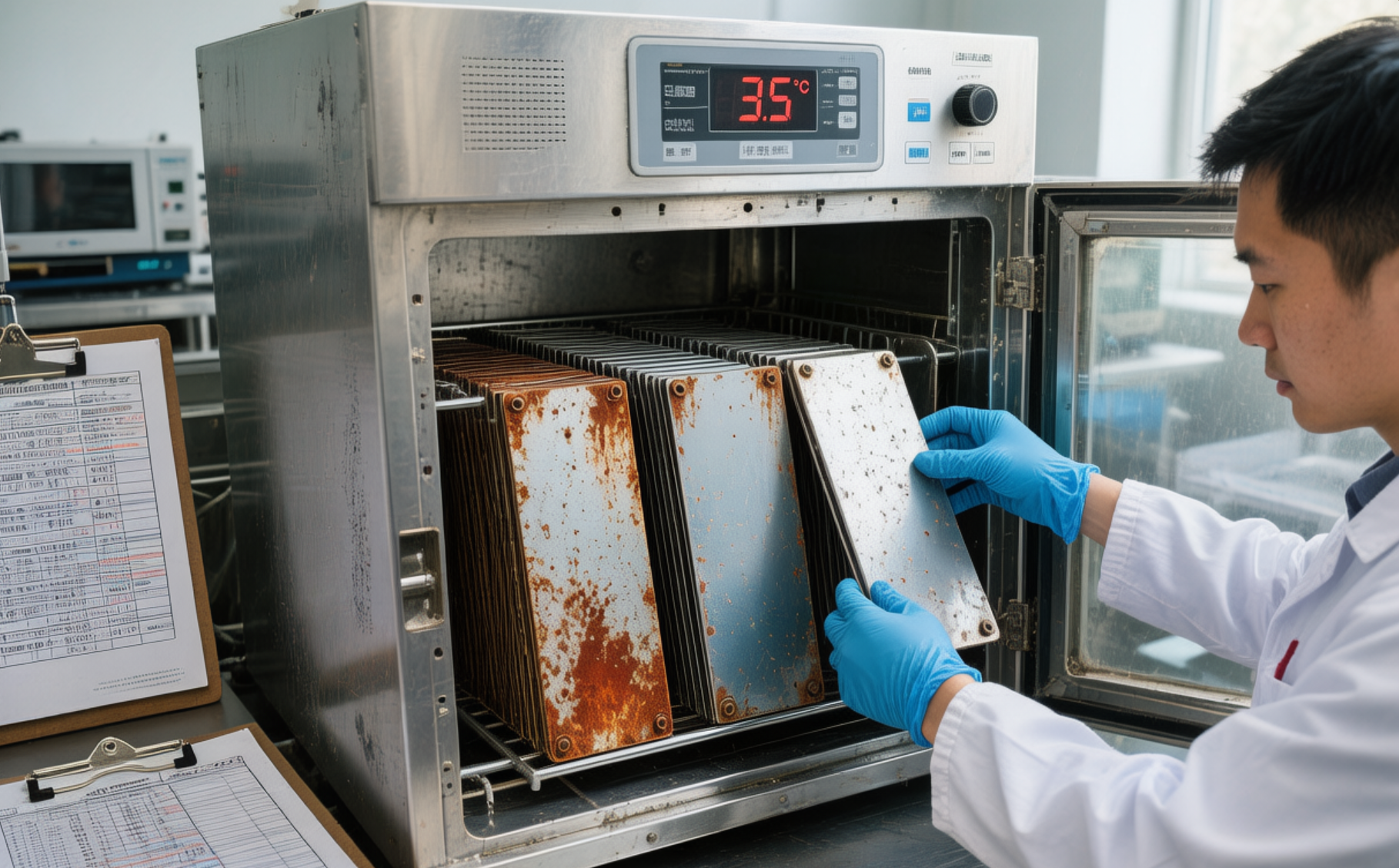

Fig. C6-03 — Salt spray test chamber with coated tube samples at various corrosion stages; DingPrecision QC laboratory

Color Consistency — Delta-E <= 1.0 Across 40,000 Units/Month

For gaming desk brands, color consistency is non-negotiable. A black tube that looks slightly brown under office lighting triggers a return.

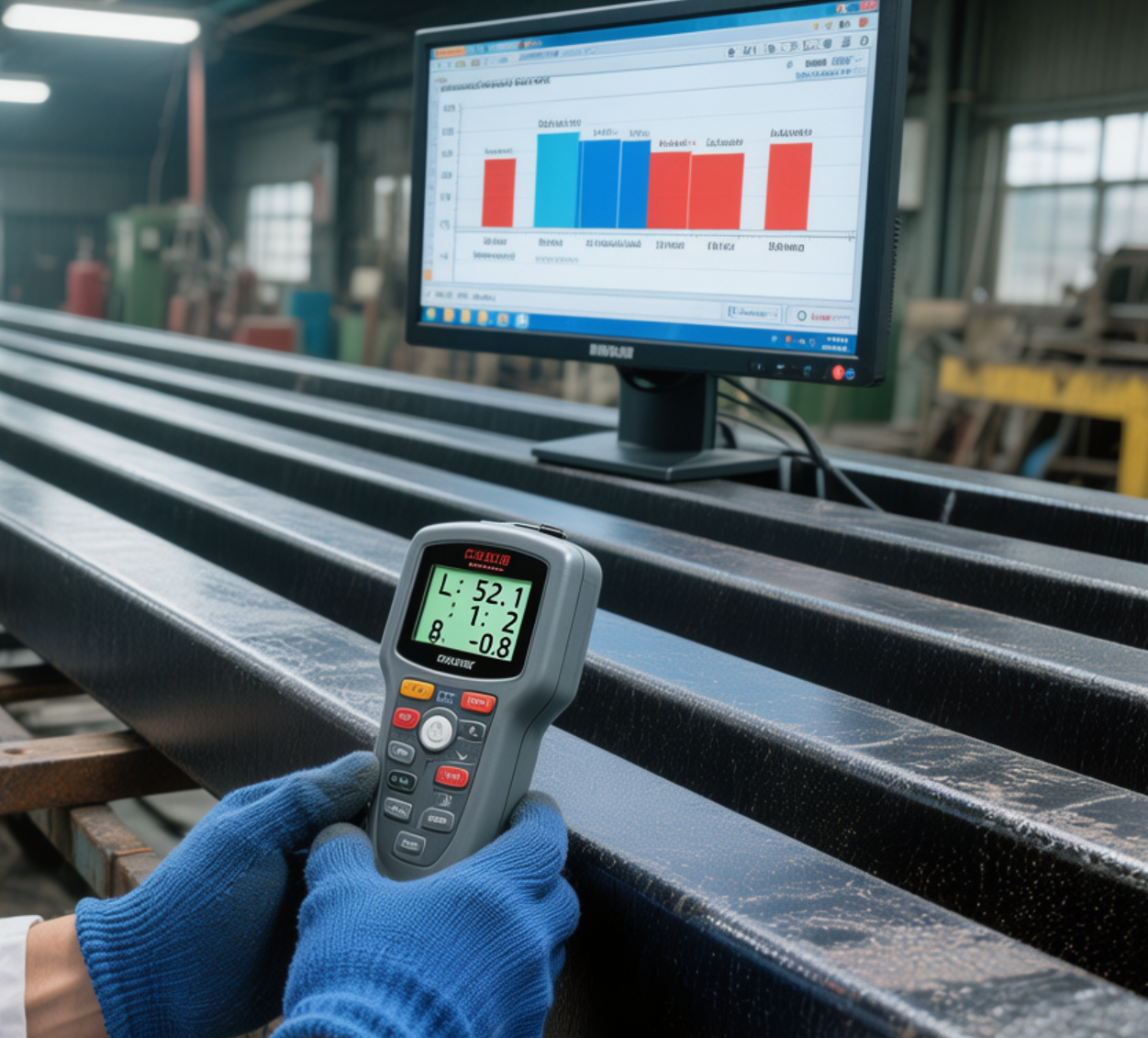

DingPrecision measures color using a spectrophotometer at the start and end of every coating batch. Our process control target is Delta-E <= 1.0 — a difference imperceptible to the human eye. For context, Delta-E <= 2.0 is considered commercially acceptable in most industries; Delta-E <= 1.0 is premium-grade.

At 40,000 tubes per month, maintaining Delta-E <= 1.0 requires:

Powder from a single qualified supplier (no swapping for price)

Oven temperature control +/-3C

Cure time verified per batch, not assumed

Spectrophotometer readings recorded and trended
