Laser Tube Cutting for Square & Rectangular Tubes
Precision, Speed, Zero Tooling
DingPrecision Engineering Team | June 2026 | 10 min read
A decade ago, cutting a rectangular steel tube meant cold sawing — slow, tooling-intensive, and leaving burrs that required secondary grinding. Then came 2D laser tube cutting — faster, but still requiring a separate punching operation for holes and slots.
Today, 3D fiber laser tube cutting has eliminated the punching step entirely. Cut, drill, slot, and profile — all in one setup. One operation. Six seconds per tube.
DingPrecision operates 5 fully automatic 3D laser tube cutters that handle every cutting operation on a lifting column tube without a single punch die.
How 3D Fiber Laser Tube Cutting Works

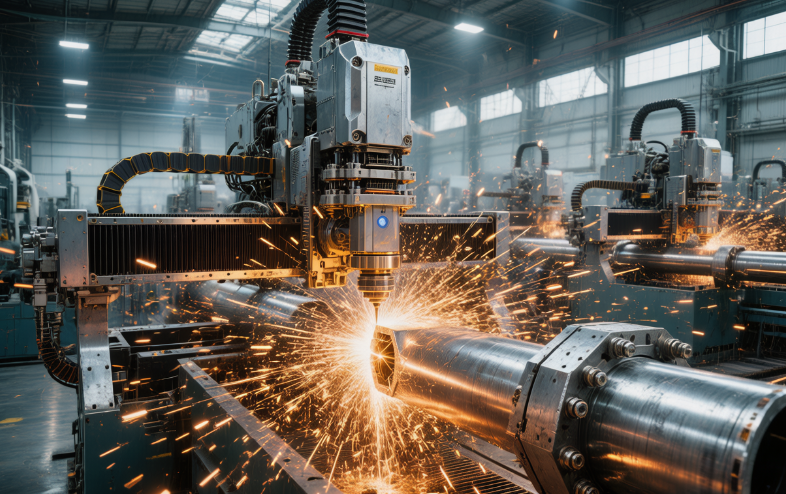

C9-01: DingPrecision 3D laser tube cutting machine — tube rotating while laser drills side-face holes in one continuous setup.
A 3D fiber laser tube cutter is a 5-axis CNC machine with a laser head:
Auto-loader feeds a raw 6-meter tube into the machine
Pneumatic chuck grips the tube and rotates it on its long axis (A-axis)
5-axis laser head (1,500–2,000W fiber) moves along the tube (Y-axis), across it (X-axis), and tilts (B/C axes) to approach from any angle
Tube rotates while laser moves — the coordinated motion enables cutting complex 3D geometries: end profiles, side holes, elongated slots, chamfers — all without releasing the tube
Assist gas (O₂ for carbon steel, N₂ for stainless) blows molten material out of the kerf
The critical capability: Because the tube rotates and the laser head tilts, the machine can drill a hole on one face, cut a slot on the adjacent face, and profile the tube end — all in one continuous program. No secondary punching. No die setup. No transferring between workstations.
The entire cycle — load, cut + drill + slot + profile, unload — takes as little as 6 seconds per tube for our standard 600–700mm column segments.
Why 3D Laser Beats Sawing + Punching
Factor | Cold Sawing + Punching | 2D Laser + Punching | 3D Laser (DingPrecision) |
Operations | 2 (saw + punch) | 2 (laser cut + punch) | 1 (all-in-one) |
Tooling cost | £500–2,000/blade + die | £0 laser + £5,000–50,000/die | £0 (software-only) |
Changeover | 30–60 min | 30–60 min (die swap) | <1 min |
Accuracy | ±0.3mm cut, ±0.05mm hole | ±0.1mm cut, ±0.05mm hole | ±0.1mm (both) |
Holes per tube | Limited by die layout | Limited by die layout | Unlimited, any pattern |
Slot cutting | Not possible | Not possible (requires die) | Yes, any shape |
End profiling | Rough saw cut | 2D profile only | 3D chamfer + bevel |
Unit cost t1.5mm | ¥0.70–1.50/tube | ¥0.30–0.60/tube | ¥0.10–0.15/tube |
Work-in-progress | Tube moves between stations | Tube moves between stations | Tube stays in one machine |
For a production run of 40,000 tubes per month with 5 different tube sizes, 3D laser cutting eliminates not just tooling costs but the entire secondary handling and setup time of a punching operation. No punch dies to maintain. No hole-position drift as dies wear. No tubes sitting in queue between cutting and punching.
Parameter Matrix — Power x Speed x Gas for t1.5mm Q235
Parameter | Recommended | Acceptable Range | Effect of Deviation |
Laser power | 1,500W | 1,000–2,000W | <1,000W: incomplete cut; >2,000W: excessive HAZ |
Cutting speed | 8–10 m/min | 6–15 m/min | Too fast: bottom burr; Too slow: wide kerf, dross |
Assist gas | O₂ @ 0.5MPa | 0.3–0.8MPa | Too low: incomplete ejection; Too high: wide kerf |
Focal position | +0.5mm above surface | 0 to +1.0mm | Too low: top burr; Too high: bottom burr |
Nozzle diameter | 1.5mm | 1.2–2.0mm | Undersized: insufficient gas; Oversized: gas waste |
Pierce time | 0.3s | 0.2–0.5s | Insufficient: blowback damage to lens |
Standoff distance | 1.0mm | 0.5–1.5mm | Contact: nozzle damage; Excessive: lost focus |
Why O₂ for carbon steel? The exothermic reaction between oxygen and steel adds cutting energy, allowing 30–40% higher cutting speed compared to N₂. The resulting oxide layer (typically 10–20μm) is removed during pre-coating surface preparation.
Corner Cutting — The Hardest Part of Rectangular Tubes

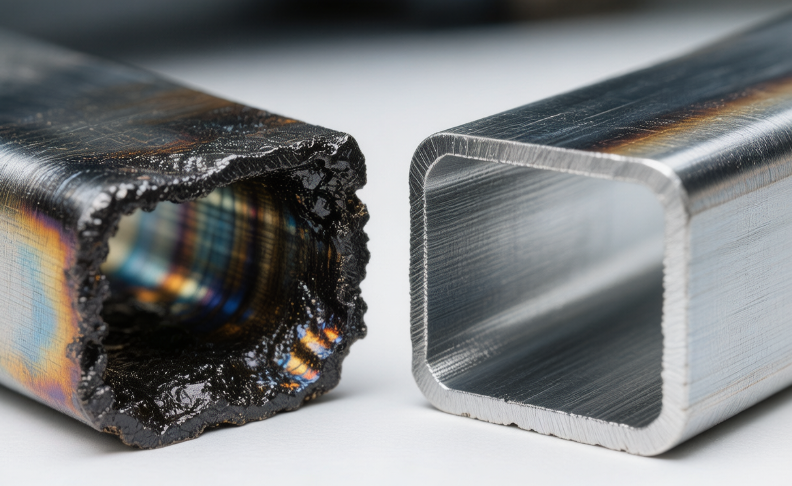

C9-02: Square tube corner comparison — overburned (black, rough, melted edge) vs. properly compensated (smooth, bright, no discoloration).
Rectangular tubes present a unique challenge at corners. The laser must change direction by 90° — but the cutting head can't stop instantaneously. During the direction change, the laser dwells at the corner for an extra 0.1–0.3 seconds. That dwell time overheats the corner. The result: a slightly larger kerf, a darkened heat-affected zone, and potential micro-cracking if the material is sensitive to thermal cycling.
DingPrecision's solution — Dynamic Corner Compensation:
Cutting speed reduced to 60% of linear speed at each corner
Laser power reduced to 70% of nominal
Assist gas pressure maintained at 100%
Cut path starts from the corner (not the flat), reducing dwell time at the most vulnerable point
This parameter set is stored in our cutting database for every tube geometry we process — no operator adjustment needed when switching between tube sizes.
Tube-Specific Challenges and Solutions
Challenge | Root Cause | DingPrecision Solution |
Long-side sag | 700mm tube unsupported mid-span sags under gravity | Pneumatic auxiliary support rollers every 300mm |
Clamping deformation | Chuck pressure deforms thin-wall (1.2mm) rectangular tubes | Pressure-regulated clamping; oval compensation algorithm |
Internal spatter | Assist gas fails to fully eject molten material through enclosed tube | Tail-end plug to contain gas pressure; internal anti-spatter coating |
Stress-release warping | Cutting a long slot releases residual rolling stress | Symmetric cutting path; split into rough + finish pass for long slots |
Tube rotation accuracy | Rectangular tube must rotate precisely 90° between sides | Servo-driven chuck with ±0.05° rotational accuracy |
End-Face Quality Standards

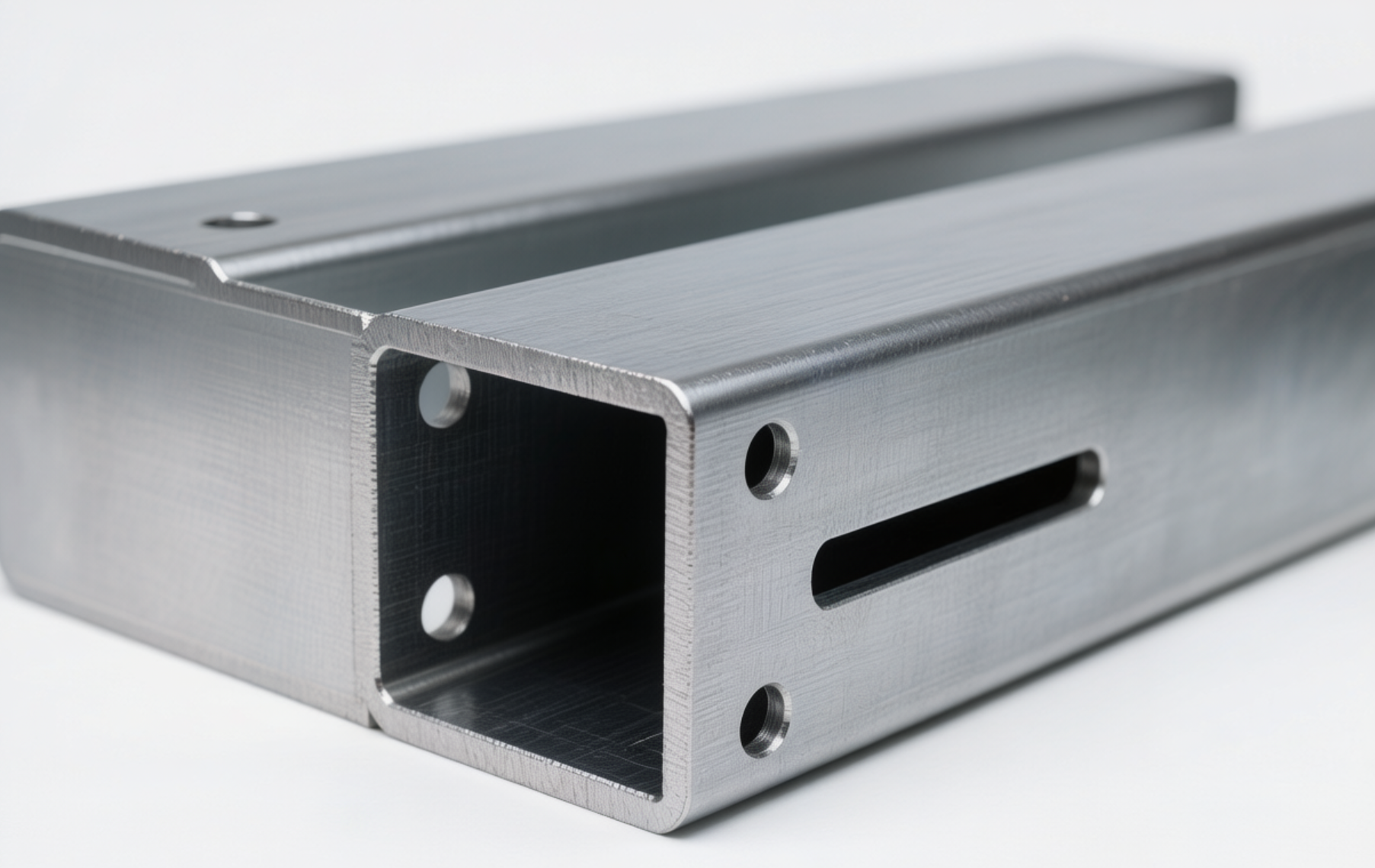

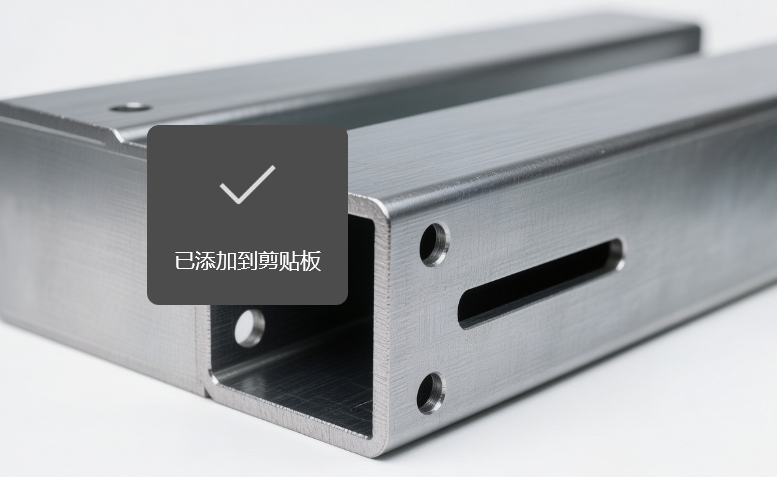

C9-03: Finished precision tube — cut end profile, drilled holes, and elongated slot all produced in one 3D laser setup. No secondary operations.
Quality Metric | Precision Grade | Standard Grade | DingPrecision Target |
Burr height | ≤0.05mm | ≤0.15mm | ≤0.10mm |
HAZ width | ≤0.10mm | ≤0.30mm | ≤0.20mm |
Perpendicularity | ≤0.05mm | ≤0.20mm | ≤0.15mm |
Surface roughness Ra | ≤6.3μm | ≤12.5μm | ≤6.3μm |
Kerf width consistency | ±0.03mm | ±0.08mm | ±0.05mm |
Every 500th tube is pulled for dimensional verification on a CMM. Trending data is analyzed monthly to detect gradual parameter drift before it produces out-of-spec parts.
