Precision Welded Tubes vs Standard Tubes

The +/-0.1mm Gap That Separates Premium From Budget

DingPrecision Engineering Team | June 2026 | 8 min read

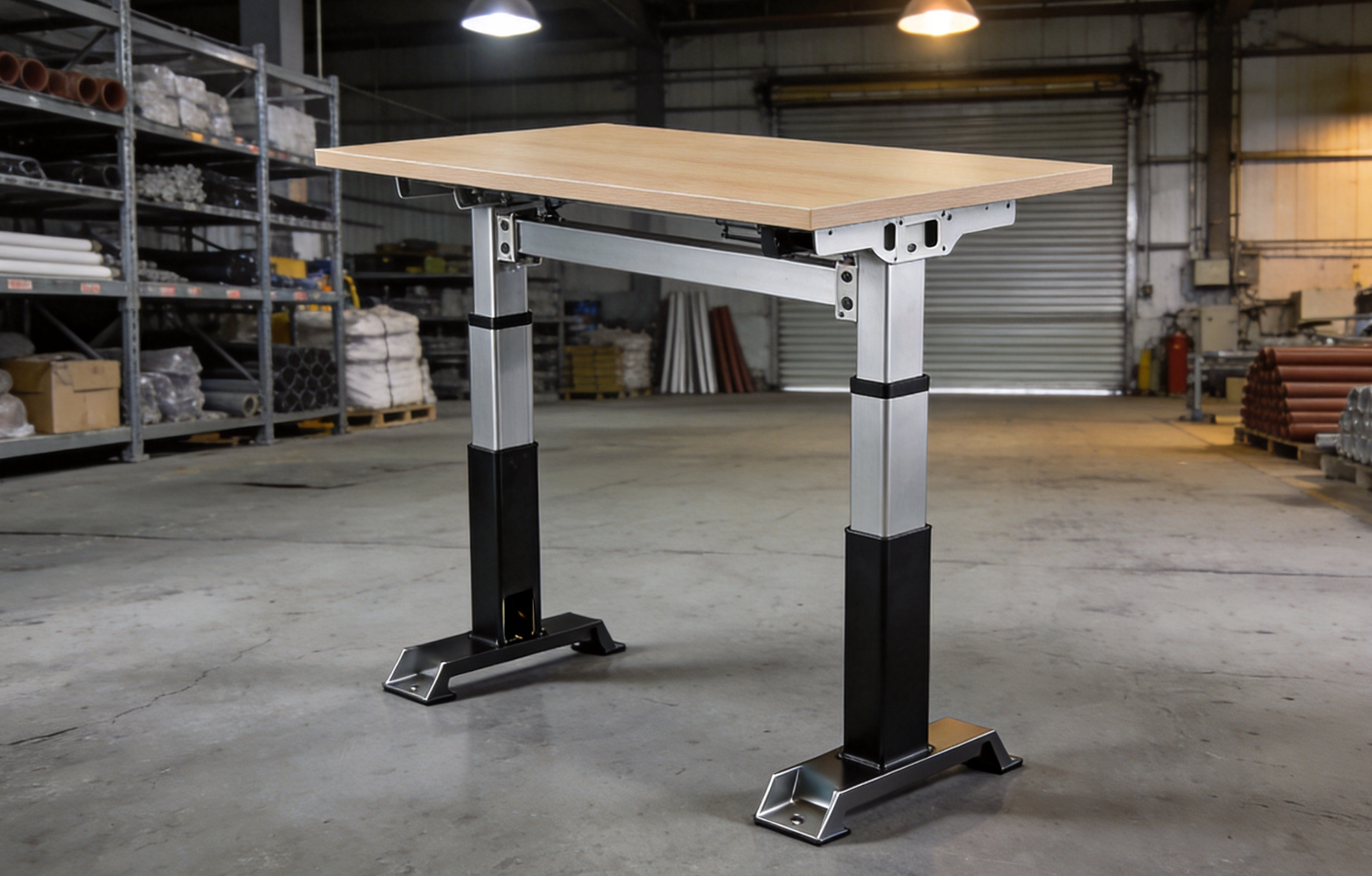

A lifting column tube looks simple from the outside - just a rectangular steel tube. But the difference between a tube that slides smoothly for 10,000 cycles and one that binds after 500 comes down to tolerances measured in tenths of a millimeter.

This article explains the 5 critical specifications that separate precision cold-rolled tubes from standard ERW tubes - and why cutting corners on tube quality is the most expensive mistake a lifting column manufacturer can make.

The +/-0.1mm Tolerance Difference

Imagine two rectangular tubes, both labeled '70x50mm. ' The first measures 70.08 x 49.92mm. The second measures 70.45 x 50.31mm.

Both are technically '70x50,' but when you slide one inside the other 10,000 times, the first glides. The second scrapes.

The 0.4mm tolerance gap between precision and standard tubes does not sound like much - but it is four times the film thickness of a single powder coat layer.

When you are coating both the outer wall of the inner tube and the inner wall of the outer tube, a 0.4mm wall variation eats up all your design clearance.

Fig. C1-01 - Precision tube (left, +/-0.1mm tolerance) vs. standard ERW tube (right, +/-0.5mm tolerance), shown with caliper measurement on granite surface plate

Q235 vs Q345B - When to Upgrade

Most lifting column tubes use Q235B - and for good reason. It is cost-effective, welds well, and its 235MPa yield strength comfortably handles the static and dynamic loads required by EN 527 and BIFMA X5.5.

But there is a case for Q345B.

For a standard two-stage column (outer + inner tube) carrying up to 100kg, Q235B is more than adequate. The 50kg static load requirement of EN 527 translates to roughly 25kg per column - well within Q235B's range.

For three-stage columns - where the outer tube must be thinner to accommodate the middle tube, yet still carry the full load - upgrading the outer tube to Q345B gives you 47% more yield strength without increasing wall thickness.

Straightness - The Hidden Cost of Cheap Tubes

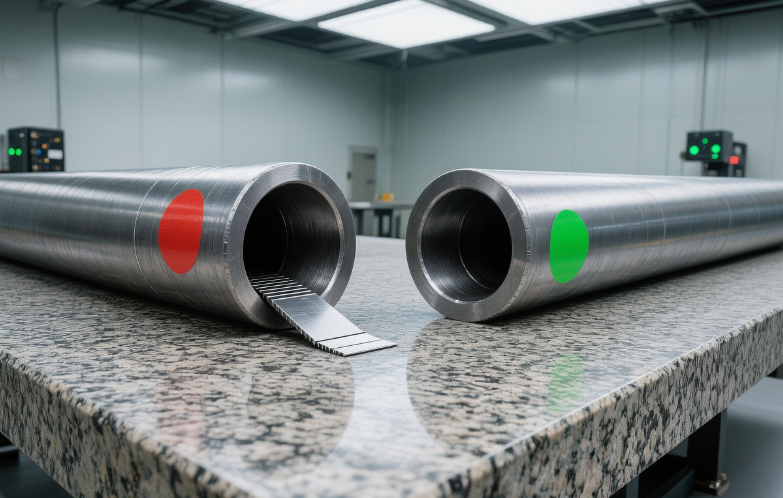

Fig. C1-02 - Straightness test on granite surface plate: left tube shows excessive bend (feeler gauge inserted, red mark), right tube is within <=0.5mm/m specification

A tube that is 1mm out of straight over its 700mm length may pass incoming inspection. But after welding a base plate to one end, that 1mm becomes 2-3mm. After powder coating at 200 degC, thermal stress can add another 0.5mm.

By the time the finished column reaches the assembly line, what started as a 1mm deviation has become a 3.5mm wobble at the desktop level - enough to fail EN 527 stability testing.

Precision tubes start at <=0.5mm/m straightness.

Our post-weld straightening station brings finished assemblies back within 1mm/m - the maximum allowed before the 'wobbly desk' effect becomes visible to the end user.

Surface Finish - Why Ra <=0.8um Matters

Surface roughness is not just about aesthetics. In a telescoping tube assembly, the inner and outer surfaces slide against each other thousands of times.

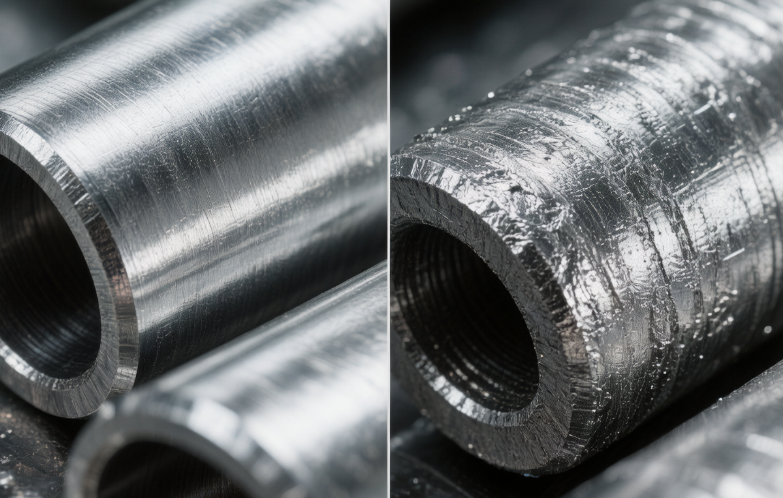

Fig. C1-03 - Surface roughness comparison: precision cold-rolled tube (left, Ra <=0.8um, mirror-like) vs. standard ERW tube (right, Ra 3.2-6.3um, visible machining marks)

Precision cold-rolled tubes achieve Ra <=0.8um as-supplied - no secondary grinding or polishing needed. This is a byproduct of the cold-rolling process, which compresses the steel surface at the crystalline level.

DingPrecision's Material Partners

We source precision tubes from specialized mills in Guangdong that have invested in cold-rolling and cold-drawing post-processing. These mills are not general-purpose steel suppliers - they focus exclusively on precision tubular products for the automotive, furniture, and fitness equipment industries.

Every tube batch arrives with:

Mill Test Certificate showing chemical composition (C, Mn, Si, P, S) per GB/T 222

Mechanical properties report (yield, tensile, elongation) per GB/T 228.1

Dimensional inspection record (outer dimensions, wall thickness, straightness)

Surface quality certification (visual inspection, no cracks, no lamination)

We maintain 2-3 qualified suppliers to ensure supply chain resilience while keeping material quality consistent.

The Bottom Line

Precision tubes cost more per meter. They cost dramatically less per finished, shipped, accepted column.
