Thin-Wall Tube Welding
Base Plates, Distortion Control, and Robotic Consistency
DingPrecision Engineering Team | June 2026 | 9 min read
The base plate weld is the structural weak point of a lifting column. A 2.0mm steel plate must be welded to a 1.5mm tube wall — strong enough to resist 113kg of static load (BIFMA X5.5) and 20N·m of torsion, yet controlled enough to avoid burning through the thin tube wall.
At 40,000 tubes per month, manual welding would require 20+ skilled welders working two shifts — and even then, consistency would drift. DingPrecision uses 4 MAG welding robots with precisely calibrated parameters.
The 6 Types of Welding Distortion
Welding thin-wall tubes introduces heat that inevitably causes distortion. Understanding the 6 fundamental types is the first step to controlling them.

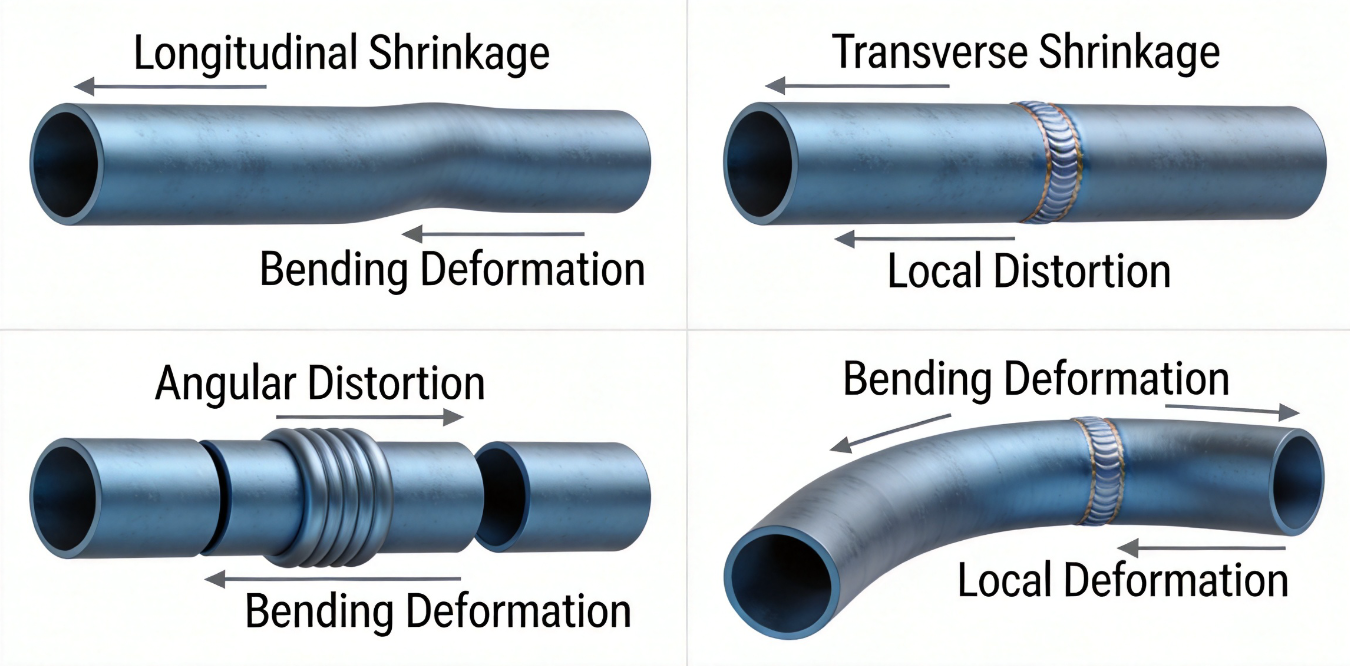

Fig. C4-01 — Six types of welding distortion: longitudinal shrinkage, transverse shrinkage, angular distortion, bending distortion, twisting distortion, buckling distortion
Distortion Type | Mechanism | Effect on Lifting Column |
Longitudinal shrinkage | Weld bead contracts as it cools along its length | Tube shortens 0.5–1.0mm — mounting holes shift |
Transverse shrinkage | Weld cross-section contracts | Base plate narrows 0.3–0.5mm — bolt holes may bind |
Angular distortion | Temperature gradient between top and bottom of plate | Base plate tilts 1–3° — column leans at assembly |
Bending distortion | Asymmetric weld placement | Tube bows 1–3mm over its length |
Twisting distortion | Asymmetric thermal stress pattern | Tube twists around its long axis |
Buckling distortion | Thin-wall instability under compressive thermal stress | Tube wall dimples inward near weld |
Of these, bending distortion is the most critical for lifting columns. A 2mm bow at the tube center translates to a 5–7mm tilt at the desktop surface — enough for the user to feel the column is "not level."
MAG Welding Parameters for 1.5mm Wall Q235 Tubes
DingPrecision uses MAG (Metal Active Gas) welding for all thin-wall tube-to-plate joints. The parameter window for 1.5mm wall Q235 steel is narrow — here are our validated settings.
Parameter | Value | Reason |
Process | MAG (Metal Active Gas) | Best penetration-to-heat-input ratio for thin-wall steel |
Shielding gas | 80% Ar + 20% CO₂ | Ar stabilizes arc; CO₂ improves wetting |
Wire | ER50-6, φ1.0mm | Matches Q235 chemistry; thin wire = lower heat input |
Current | 140–160A | Below 140A: lack of fusion; Above 160A: burn-through risk |
Voltage | 18–20V | Matched to current for short-circuit transfer mode |
Travel speed | 0.5–0.7 m/min | Faster = less distortion but risk of incomplete fusion |
Heat input | 0.25–0.35 kJ/mm | Calculated low-heat zone to minimize HAZ |
Weld position | Flat (PA) with tube horizontal | Gravity-assisted bead shape |
Interpass temperature | ≤150°C | Prevents cumulative heat buildup |
Short-circuit transfer mode — where the wire tip repeatedly touches and retracts from the weld pool — produces the lowest heat input of any MAG transfer mode. For a 1.5mm wall tube, this is essential: the arc extinguishes between short circuits, allowing the thin wall to cool slightly between pulses.
Robotic vs Manual — Consistency at Scale
At 40,000 tubes/month, manual welding cannot deliver the consistency required for a premium standing desk brand. The data speaks for itself:
Factor | Manual Welding | Robotic (DingPrecision) |
Weld-to-weld consistency | ±20% bead width | ±3% bead width |
Travel speed consistency | Varies with operator fatigue | Constant, program-controlled |
Heat input control | Operator judgment | Calculated ±5% tolerance |
Defect rate (porosity, undercut) | 2–5% | <0.5% (per ISO 5817) |
Operator skill dependency | High (3–5 years training) | Low (programming-only) |
Throughput per station | 60–80 tubes/10h shift | 120–150 tubes/10h shift |
Anti-Distortion Fixtures — DingPrecision's Approach
DingPrecision uses a multi-technique approach to minimize distortion. Each technique targets a specific distortion mechanism.

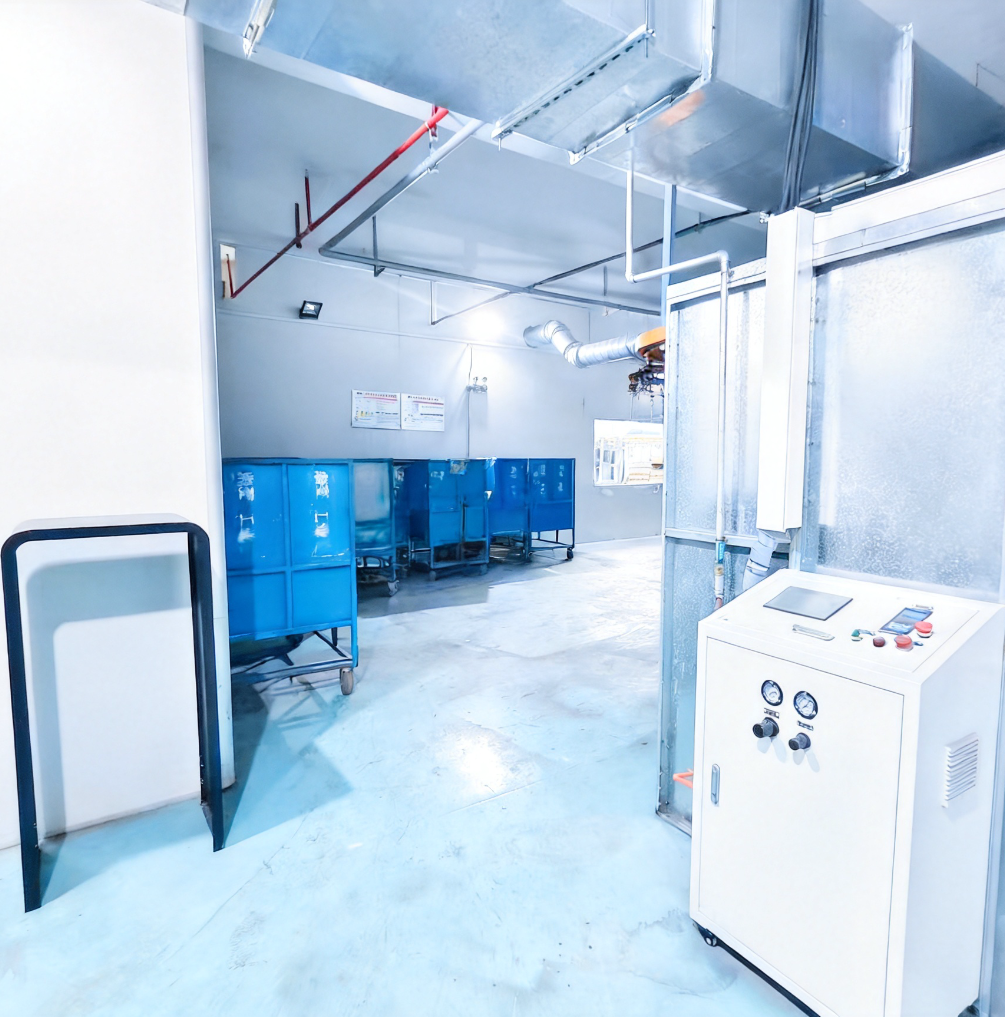

Fig. C4-02 — Clean Industrial Workshop
Technique | Purpose | Implementation |
Rigid clamping | Restrict all 6 degrees of freedom | Pneumatic clamps at 3 points along tube |
Copper backing bar | Heat sink behind thin wall | Copper block pressed against weld zone interior |
Tack weld sequence | Balance thermal input | 4 tacks at 90° intervals before full weld |
Back-step welding | Distribute shrinkage | Weld passes alternate direction |
Pre-set reverse camber | Compensate predictable bow | Fixture offsets tube 0.5mm opposite to bend direction |
Post-weld air cooling | Controlled cooling rate | Compressed air directed at HAZ for 15s after weld |
The copper backing bar is particularly effective: copper's thermal conductivity (401 W/m·K) is 8× higher than steel (50 W/m·K), rapidly drawing heat away from the thin tube wall and preventing burn-through.

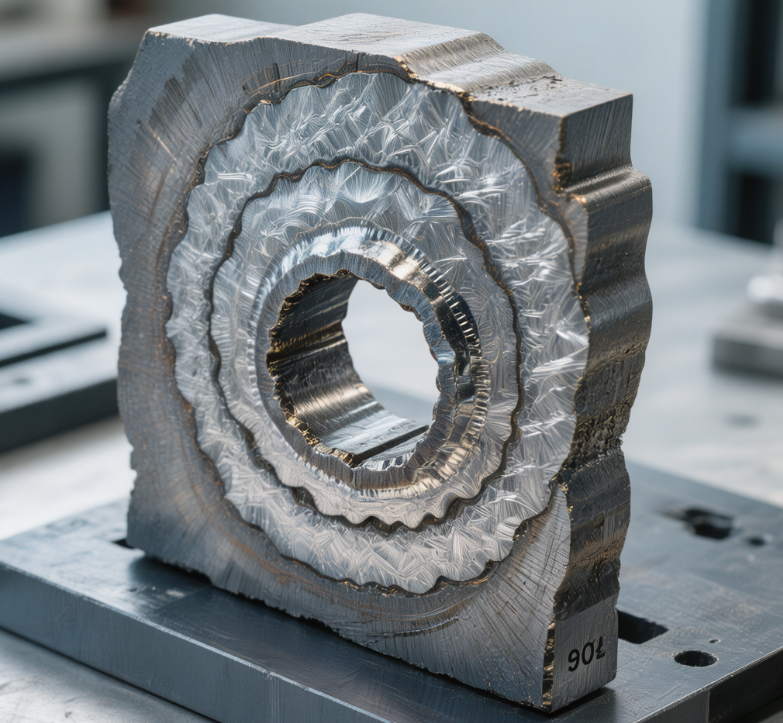

Fig. C4-03 — Metallographic cross-section of MAG weld on 1.5mm Q235 tube: weld metal (WM), heat-affected zone (HAZ), base metal (BM)
Weld Quality Standards
Every weld at DingPrecision is inspected against documented acceptance criteria. These standards ensure structural integrity over the desk's 10+ year lifespan.
Quality Metric | Acceptance Criteria | Test Method |
Tensile strength | ≥350 MPa | Cross-section tensile test per batch |
Visual appearance | No cracks, no undercut >0.5mm, no surface porosity | 100% visual |
Bead width consistency | ±15% of nominal | Gauge check per 100 pieces |
Penetration | ≥1.0mm into tube wall | Cross-section macro etch (1 per 500) |
Deformation (post-weld) | ≤1mm/m straightness | Surface plate + feeler gauge (100%) |
X-ray/UT | Not required for structural furniture | — |
Every tube passes a post-weld straightness check. Tubes exceeding 1mm/m are routed to the straightening station — a hydraulic press with V-block supports that applies controlled counter-bending to correct residual bow.
