Precision Tube Fabrication for Lifting Columns — Complete In-House Capability

Author: DingPrecision Engineering Team | Published: June 2026 | Reading Time: 12 min

The Rise of Height-Adjustable Desks — A 40M+ Annual Market

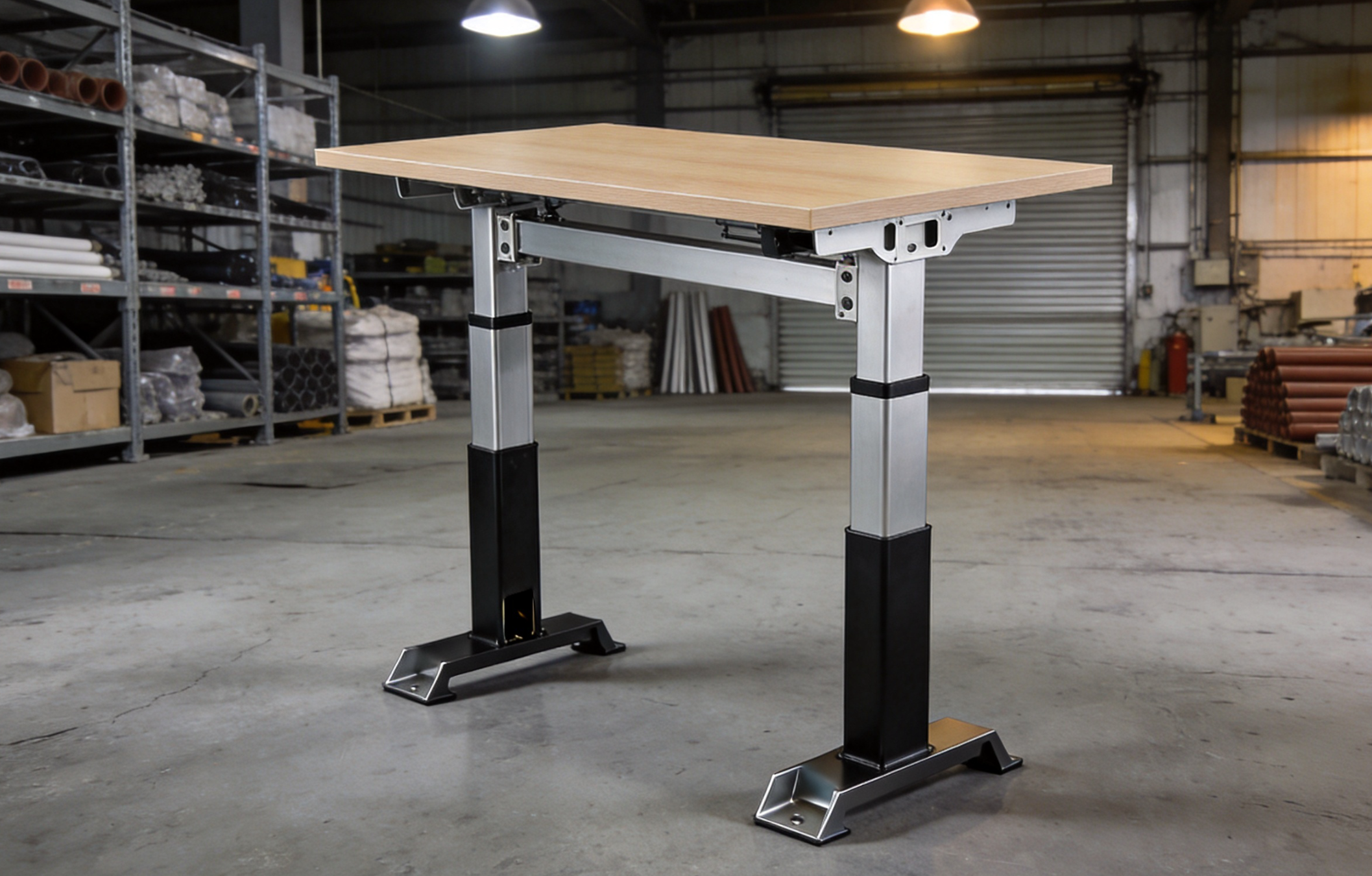

The global standing desk market crossed $7.8 billion in 2025, and at the heart of every electric height-adjustable desk lies a component most buyers never think about: the lifting column tube assembly. Two or three telescoping rectangular steel tubes — outer, middle, inner — that must slide smoothly through 10,000+ cycles without binding, wobbling, or rusting.

For gaming desk brands like PSEAT and AutoFull, for office furniture manufacturers shipping to the EU and North America, tube quality is not optional. It determines whether the desk feels premium or cheap. Whether it passes EN 527 static load testing. Whether the customer leaves a 5-star review or demands a return.

DingPrecision has been manufacturing these tubes since 2023. In 2024, we shipped 400,000 lifting column tubes per month — and we do it entirely under one roof.

Why Tube Fabrication is the Hardest Part

Most sheet metal fabricators stop at flat parts. Laser-cut a bracket. Bend an enclosure. Weld a frame.

Tube fabrication is a different discipline.

These are not problems you solve with a generic CNC machine. They require dedicated tube processing lines and — more importantly — a workforce that has cut, welded, and coated 400,000 tubes every month for two years.

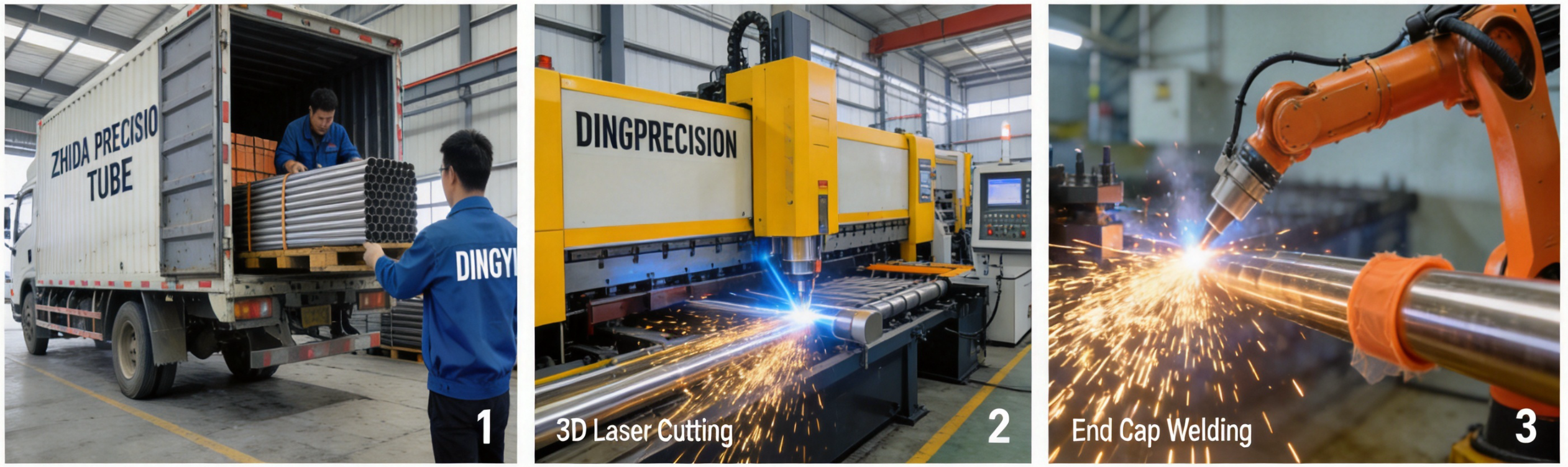

DingPrecision's 4-Step In-House Tube Process

Step 1 — Precision Tube Sourcing

We don't make our own steel tubes. We buy the best. Our primary supplier — a specialized precision tube mill in Guangdong — delivers cold-rolled Q235B rectangular tubes to ±0.1mm outer tolerance and ≤0.5mm/m straightness. Every batch arrives with a mill test certificate showing chemical composition and mechanical properties per GB/T 6728.

Why buy instead of make? A precision ERW tube mill costs ¥2-5 million. The 5-6 mills we source from have decades of tube-making expertise we respect. Our value-add is everything that happens after the tube arrives.

Step 2 — 3D Laser Cutting — Cut, Drill, Profile in One Operation

Five fully automatic 3D fiber laser tube cutters operate in our dedicated tube fabrication hall. Unlike 2D laser cutters that only cut profiles, our 3D systems rotate the tube on 5 axes while the laser head moves independently — enabling cutting, drilling, slotting, and end-profiling in a single setup.

In one 6-second cycle, the 3D laser can:

Cut the tube to finished length (±0.1mm)

Drill all screw mounting holes (±0.1mm position accuracy)

Cut wire routing slots and ventilation perforations

Profile the tube end with chamfers or complex geometry

This eliminates the need for a separate punching operation entirely. No punch tooling to buy, no die changeover time, no secondary handling. Change tube dimensions in software — the 3D laser adapts instantly.

Step 3 — End Cap Stamping & Robotic Welding

The only stamped components are the end cap plates — small sheet metal pieces (typically t2.0mm Q235) that close the tube ends or serve as mounting flanges. These are produced on our 50 press line and then robotically welded to the tube body.

End cap stamping: Simple blanking + forming dies produce end caps at 200+ strokes per minute. Die sets cost ¥5,000-15,000 and last 500,000+ cycles. This is the only stamping step in the entire tube fabrication process.

Robotic MAG welding: Four welding robots attach the end caps and base plates to the tube body. Welding a 2.0mm plate to a 1.5mm tube wall requires precise heat control — too hot and the tube burns through, too cold and the weld fails EN 527's 50kg static load test.

Post-weld, every tube passes through a straightening station where residual deformation is corrected to ≤1mm/m. This step alone prevents the "wobbly desk" complaints that plague low-cost competitors.

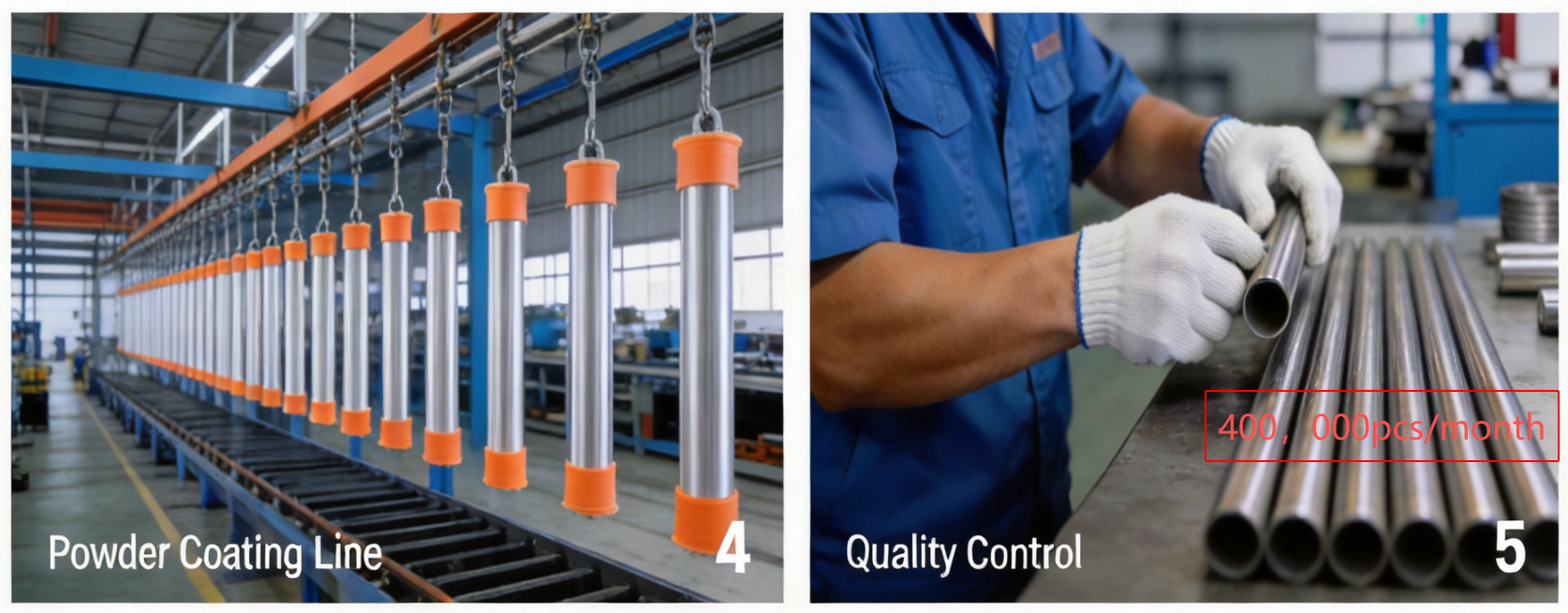

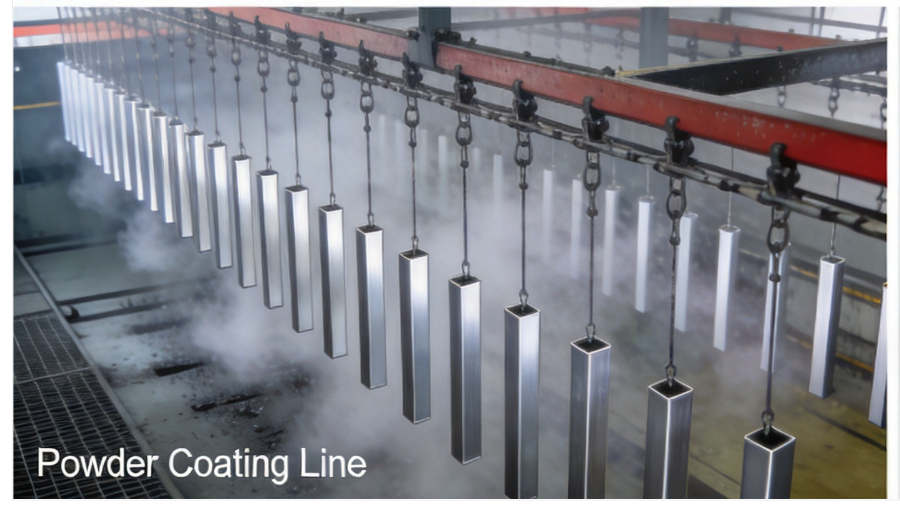

Step 4 — Powder Coating with Proprietary Masking

The tube enters our powder coating line — the same line that serves our energy storage enclosure and sheet metal customers. But for lifting column tubes, there's one critical extra step: end masking.

Why masking matters: Powder coating adds 60-80μm to every surface it touches. If the inner wall near the tube ends gets coated, the inner tube (which must slide freely inside) will bind. The result: a desk that doesn't lift smoothly.

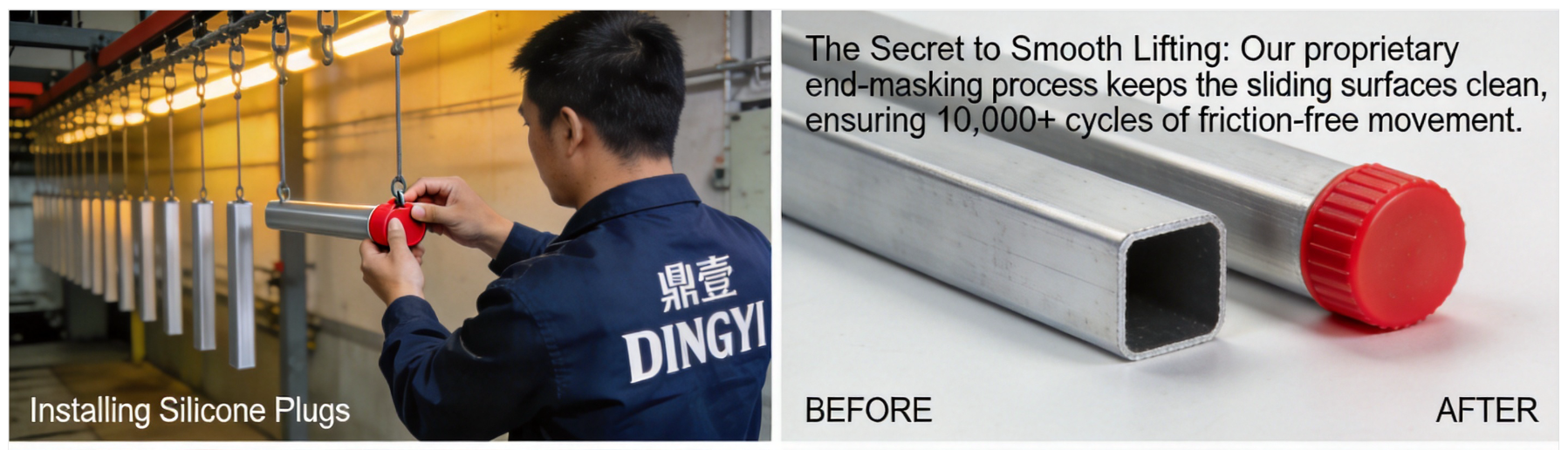

We use reusable silicone plugs rated at 250°C — inserted into both tube ends before coating, removed after curing. Each plug lasts 200+ cycles. The masked zone is precisely 50mm from each end — enough to protect the sliding interface, not so much that it leaves visible uncoated gaps.

Capacity — 400,000 Tubes Per Month

Our 15,000m² facility integrates the entire tube fabrication workflow — incoming material inspection, cutting, punching, welding, coating, QC, and packaging — in a continuous flow. No tubes leave the building between processes. No subcontractors add lead time or quality variance.

Quality — Beyond EN 527 and BIFMA X5.5

Every tube that leaves our factory is tested for:

Our in-house testing lab includes: film thickness gauge, cross-hatch cutter, salt spray chamber, constant temperature/humidity chamber, thermal shock chamber, and pencil hardness tester. Testing results are traceable to each production batch.

Why Choose In-House Over Outsourced

Get a Quote for Your Tube Project

Whether you need 500 prototype tubes or 50,000 per month, our tube fabrication line is ready.
