Powder Coating vs Liquid Painting

DINGPRECISION | Battery Enclosure Series — Article #4

Powder Coating vs Liquid Painting

Surface Finishing Comparison for Battery Enclosures

DINGPRECISION | Dingyi Industrial Technology | May 2026

1. Introduction

Surface finishing is one of the most critical decisions in battery enclosure manufacturing. The finish determines not only the visual appearance but also corrosion resistance, chemical durability, UV stability, and long-term performance in the field. For battery energy storage systems, the stakes are especially high: a failing finish can lead to corrosion that compromises structural integrity and IP rating performance.

Two dominant surface finishing technologies serve the industrial enclosure market: electrostatic powder coating and liquid spray painting. Each offers distinct advantages and trade-offs in cost, durability, color options, environmental impact, and production efficiency. The choice between them depends on the specific requirements of each enclosure project.

DINGPRECISION is uniquely positioned in this regard. We operate both 3 electrostatic powder coating lines and 1 liquid spray painting line, giving us the flexibility to select the optimal finishing process for each customer application. Our surface treatment facility includes full degreasing and zirconium conversion pretreatment, ensuring substrate preparation quality regardless of which top-coat process is used.

In this guide, we compare powder coating and liquid painting across every relevant dimension - from process technology and material properties to cost analysis and application suitability - providing you with the information needed to make an informed decision for your battery enclosure project.

For a comprehensive overview of enclosure materials, safety standards, and manufacturing capabilities, see our complete Energy Storage Enclosure Design Guide.

2. Electrostatic Powder Coating Technology

Powder coating is a dry finishing process where finely ground pigment and resin particles are electrostatically charged and sprayed onto a grounded metal substrate. The charged particles adhere to the surface, and the part is then cured in an oven at 180-200°C, where the powder melts, flows, and chemically cross-links to form a uniform, durable coating.

2.1 Process Overview

The powder coating process at DINGPRECISION follows five precise stages:

Stage 1 - Pretreatment: Full degreasing followed by zirconium conversion coating for enhanced adhesion and corrosion resistance

Stage 2 - Powder Application: Electrostatic spray guns apply charged powder particles with 95%+ material transfer efficiency

Stage 3 - Flash-Off: Brief ambient period allowing charge dissipation and powder leveling before curing

Stage 4 - Curing: Oven curing at 180-200°C for 15-20 minutes, forming cross-linked polymer film

Stage 5 - Quality Inspection: Film thickness measurement (60-120 microns), adhesion testing, visual inspection

2.2 Key Advantages of Powder Coating

Superior corrosion resistance: 1,000+ hours salt spray (ASTM B117) with proper pretreatment

Excellent edge coverage: Electrostatic wrap-around coats edges, corners, and recesses evenly

High material utilization: 95%+ transfer efficiency vs 40-60% for liquid spray

Environmental compliance: Zero VOC emissions, no hazardous waste, compliant with RoHS and REACH

Color consistency: Delta-E <= 1.0 across production batches on 3 dedicated lines

2.3 Limitations

Limited custom color range compared to liquid paint (standard RAL palette)

Minimum batch sizes required for economical color changes

Film thickness range: 60-120 microns (thicker than liquid paint, may affect tight tolerances)

Substrate must withstand curing temperature (180-200°C)

Figure 1: DINGPRECISION electrostatic powder coating production line - 3 lines with automated conveyor

To learn about the complete manufacturing process from raw material through finishing to final assembly, see our 7-step custom manufacturing process.

3. Liquid Spray Painting Technology

Liquid spray painting applies a liquid coating (paint) atomized into fine droplets and sprayed onto the substrate surface. The paint contains four primary components: pigment (color), resin (binder), solvent (carrier), and additives (performance enhancers). After application, the solvent evaporates and the resin cures to form a solid film.

3.1 Process Overview

Stage 1 - Pretreatment: Same degreasing and conversion coating process as powder coating

Stage 2 - Primer Application: Anti-corrosion primer layer (typically epoxy-based), 20-40 microns

Stage 3 - Topcoat Application: Colored topcoat layer applied by HVLP or airless spray, 30-60 microns

Stage 4 - Flash-Off & Curing: Ambient or forced-air drying, 30-60 minutes depending on paint system

Stage 5 - Quality Inspection: Dry film thickness (DFT) measurement, adhesion cross-cut test, gloss measurement

3.2 Key Advantages of Liquid Painting

Unlimited color options: Custom color matching, metallic finishes, pearl effects, multi-tone designs

Thin film capability: 40-80 microns total build (important for tight-fitting components)

Lower temperature curing: Some paint systems cure at ambient temperature or 60-80°C

Easy color changes: Minimal setup between color changes, suitable for small-batch production

Superior gloss and smoothness: Achieves higher gloss levels than standard powder coat

3.3 Limitations

Lower material utilization: 40-60% transfer efficiency, significant overspray waste

Environmental concerns: VOC emissions require spray booth filtration and regulatory compliance

Inferior edge coverage: Thinner coating at edges and sharp corners compared to powder coat

Longer process time: Primer + topcoat + flash-off between coats + final cure

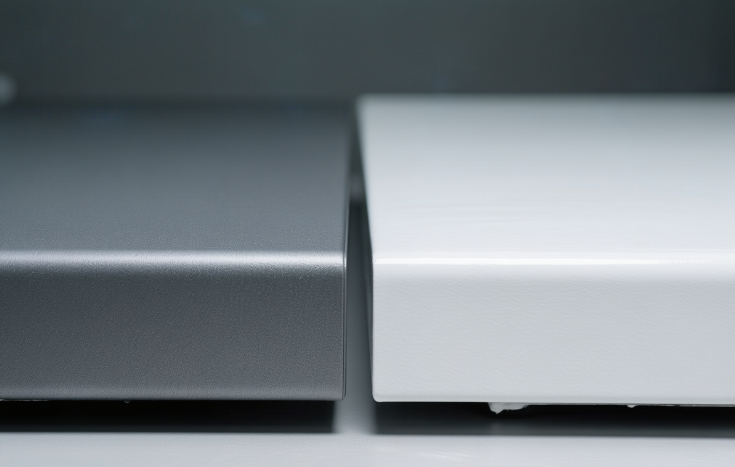

Figure 2: Surface finish comparison - matte powder coating (left) vs glossy liquid paint (right)

For guidance on how surface finish selection affects IP rating performance in battery enclosures, see our guide on IP54 vs IP65 protection ratings for energy storage enclosures.

4. Head-to-Head Comparison

4.1 Performance Comparison

4.2 Cost Comparison

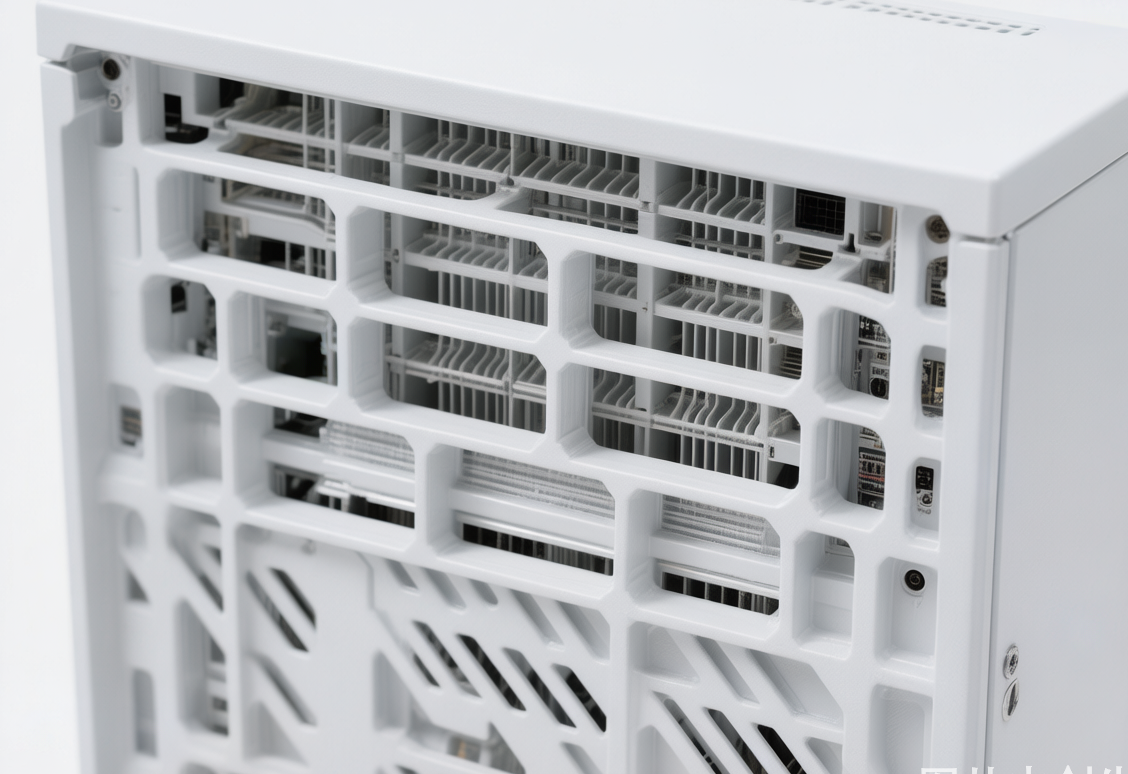

Figure 3: DINGPRECISION powder-coated battery enclosure with consistent color finish across panels

For information on integrating custom surface finishes with cutout designs and interface openings, explore our customization and cutout design capabilities for battery enclosures.

5. When to Use Each Technology

The choice between powder coating and liquid painting depends on multiple factors. Use the following decision matrix to select the optimal finishing process for your battery enclosure.

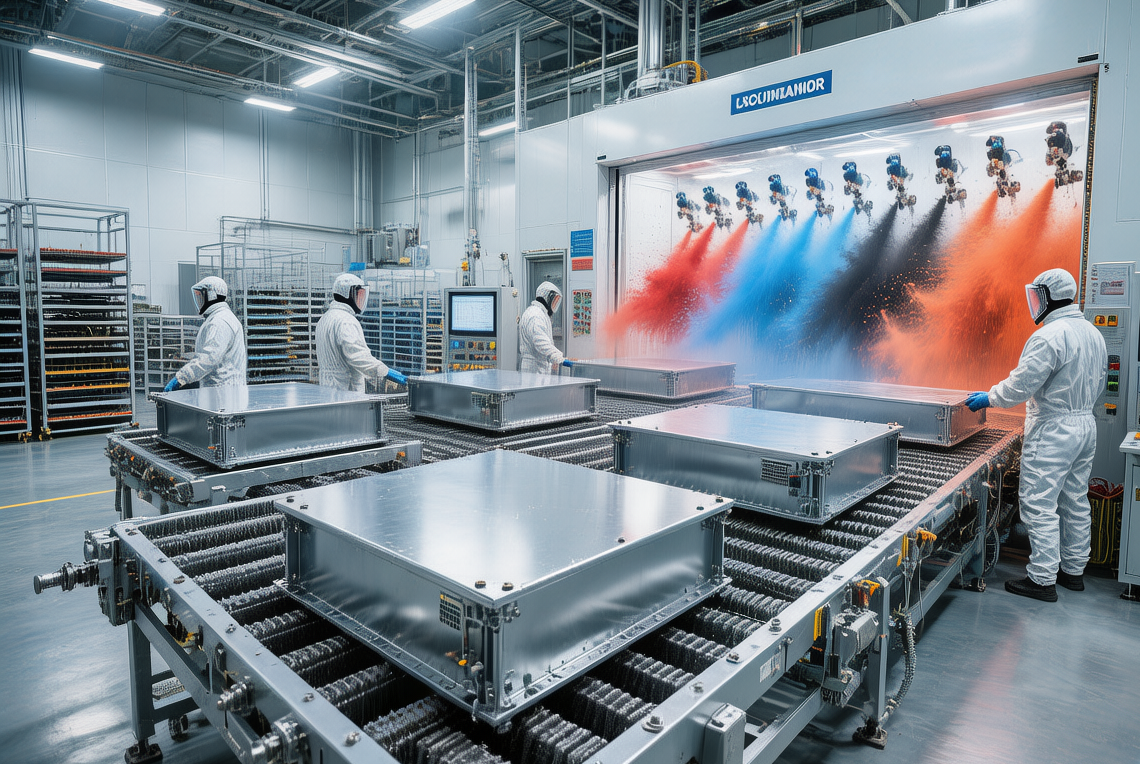

Figure 4: DINGPRECISION liquid spray painting booth for custom color and multi-tone applications

For information on how enclosure design (including surface finish color) affects thermal management in battery systems, see our battery cabinet thermal management and ventilation design guide.

6. DINGPRECISION Surface Treatment Capabilities

With 3 electrostatic powder coating lines and 1 liquid spray painting line, DINGPRECISION offers the most comprehensive surface treatment capability among precision sheet metal enclosure manufacturers in Southern China.

7. Conclusion

Both powder coating and liquid painting are proven surface finishing technologies with distinct strengths. For most battery enclosure applications, powder coating offers the best combination of durability, corrosion resistance, cost efficiency, and environmental compliance - making it the recommended default for high-volume production. However, liquid painting remains the superior choice for custom colors, low-volume orders, and applications requiring thin film build or high-gloss finishes.

At DINGPRECISION, we do not force-fit one technology to every project. Our dual-capability surface treatment facility allows us to recommend and deliver the optimal finishing process for each application, backed by ISO9001 quality management, ISO14001 environmental management, and rigorous incoming inspection and final quality control procedures.
