The Engineering Behind Smooth Telescoping Columns
DingPrecision Engineering Team | June 2026 | 8 min read
A lifting column that binds during operation is the #1 quality complaint from standing desk users. In 90% of cases, the root cause isn't the motor or the controller — it's incorrect clearance between the inner and outer tubes after powder coating.
How Telescoping Tubes Actually Work

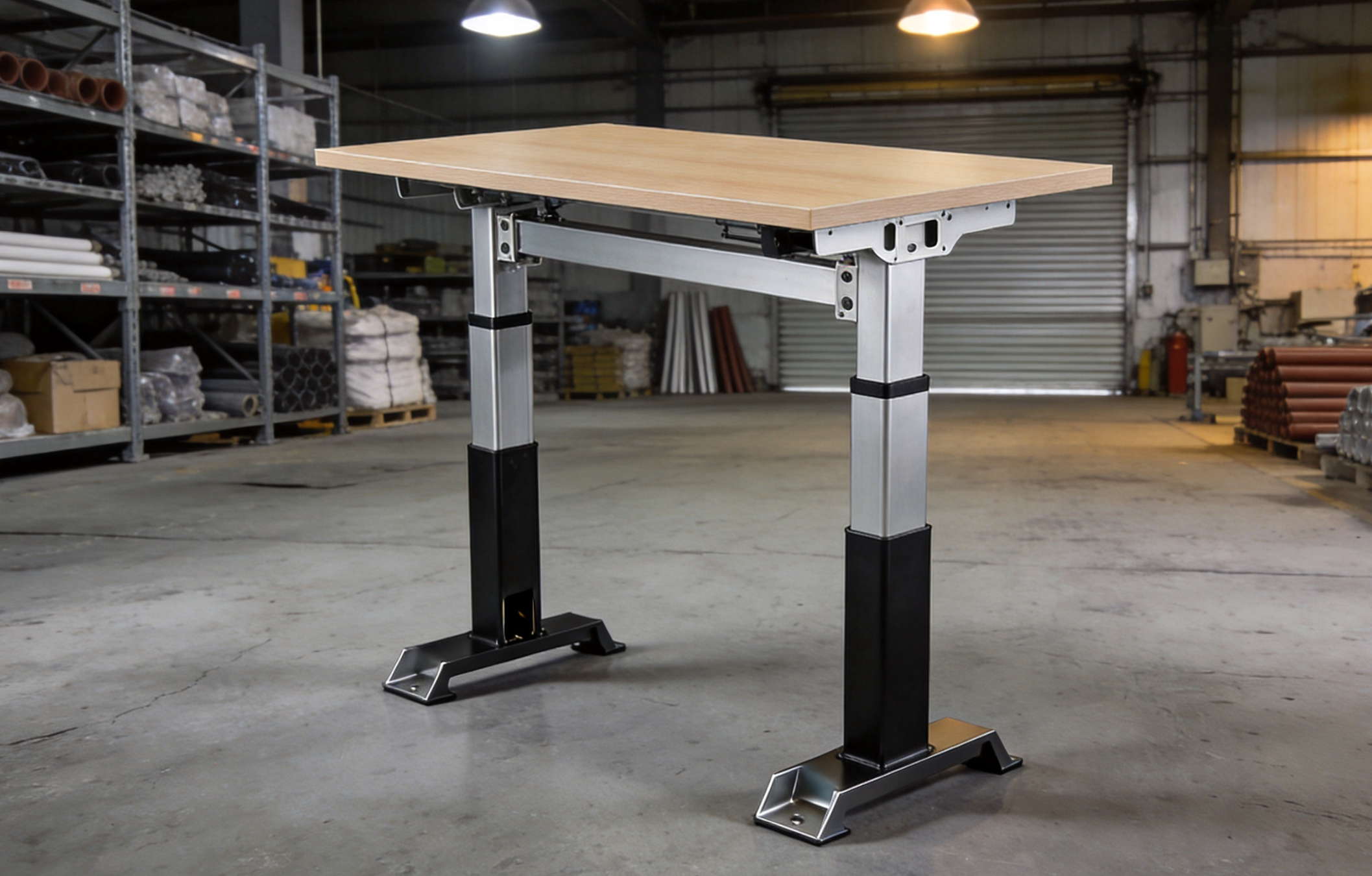

A two-stage lifting column consists of:
Outer tube: 70×50×1.5mm rectangular tube, stationary, bolted to the desk base
Inner tube: 60×40×1.5mm rectangular tube, slides inside the outer tube, driven by the motor screw
The inner tube must slide through the full stroke (typically 400-500mm) under load — 10,000+ times over the desk's lifetime — without binding, scratching, or developing excessive play.
This requires intentional engineering of the gap between them.

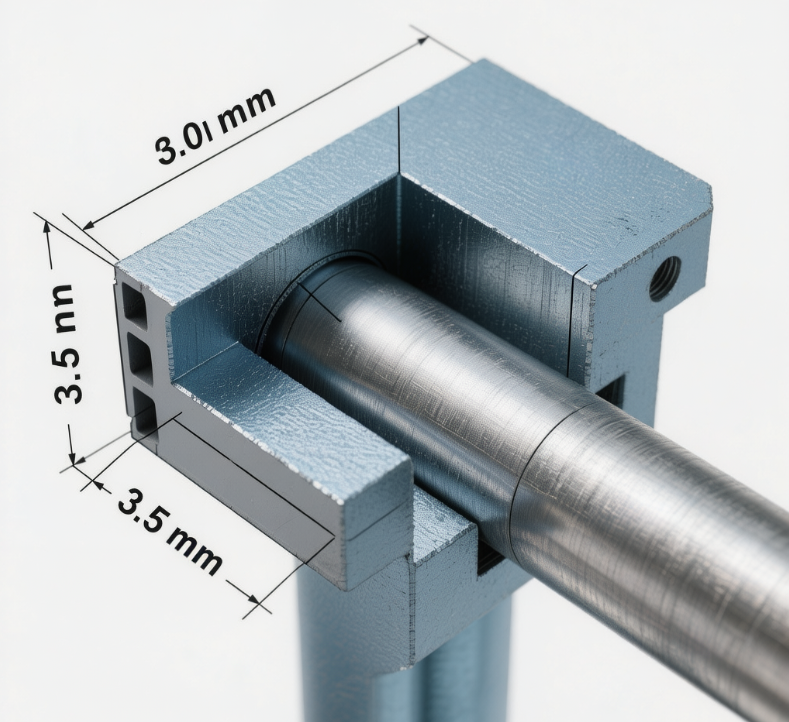

Fig. C2-01 — Cross-section of telescoping tube assembly showing 3.5mm radial clearance and powder coating layer
The Clearance Equation — Design vs Reality
Design (before coating):
Outer tube internal cavity: (70 - 2×1.5) × (50 - 2×1.5) = 67 × 47mm
Inner tube external size: 60 × 40mm
Single-side clearance (long side) = (67 - 60) ÷ 2 = 3.5mm
Single-side clearance (short side) = (47 - 40) ÷ 2 = 3.5mm
Total radial clearance: 3.5mm per side
At first glance, 3.5mm of clearance looks generous. But this is before powder coating — and coating changes everything.
What Happens After Powder Coating
Powder coating adds 60-80μm to every exposed surface. In a telescoping assembly:
Surface | Coating Applied? | Thickness Added |
Outer tube external surface | Yes | +60μm |
Outer tube internal surface | Should NOT be coated (masked) | 0 |
Inner tube external surface | Yes | +60μm |
Inner tube internal surface | Not applicable (hidden) | 0 |
The problem: Conventional powder coating lines coat everything that isn't masked. If the outer tube's internal surface near the ends picks up even 30-40μm of overspray, the effective clearance shrinks from 3.5mm to roughly:
Clearance after uncontrolled coating:
= 3.5mm - (inner ext coating 60μm + outer int overspray 40μm)
= 3.5mm - 0.10mm
= 3.4mm → still OK for the main body
The real problem is at the tube ends. Powder accumulates at edges and openings — what the industry calls "edge buildup." At the tube mouth, coating thickness can reach 120-150μm — triple the nominal specification. If this buildup occurs on the inner wall of the outer tube mouth, it creates a constriction point that the inner tube must force through on every cycle.
Clearance at tube mouth (worst case, no masking):
Inner tube OD: 60mm + 2×0.06mm coating = 60.12mm
Outer tube ID at mouth: 67mm - 2×0.15mm edge buildup = 66.70mm
Effective clearance: (66.70 - 60.12) ÷ 2 = 3.29mm per side — still OK but reduced 6%
While the numbers may still seem adequate, edge buildup creates an uneven constriction that causes the inner tube to "catch" at a specific point during extension — the binding sensation users complain about.

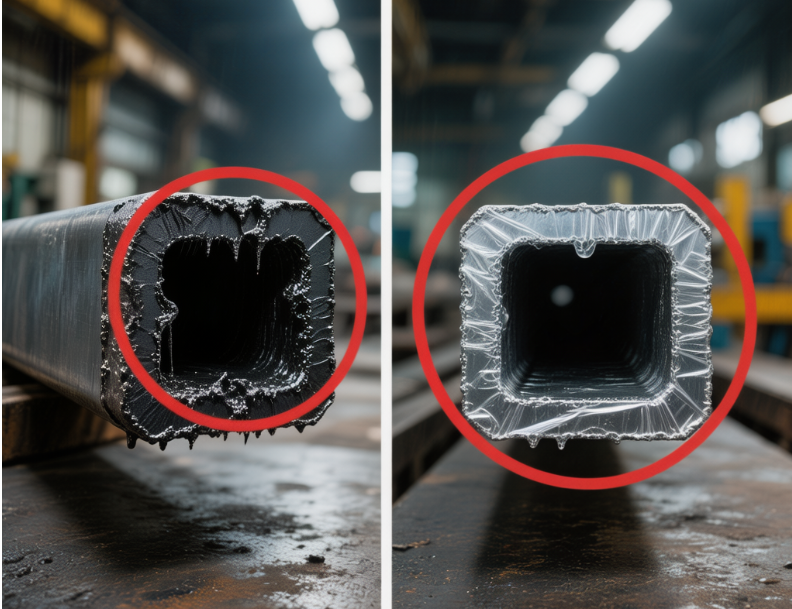

Fig. C2-02 — Edge buildup comparison: unmasked tube end (left, red circle) vs. properly masked tube end (right, clean edge)
The Masking Solution — DingPrecision's Proprietary Process
We insert reusable silicone plugs rated at 250°C into both ends of every tube before coating. The plug extends 50mm into the tube — far enough to protect the sliding interface, but not so far that it leaves a visible uncoated gap when the column is fully extended.
Masking Method | Cost/Tube | Durability | Effect on Clearance |
Silicone plug (DingPrecision) | ¥0.05/cycle | 200+ cycles | Protects 50mm end zone, 0 overspray |
High-temp tape | ¥0.02/cycle | Single use | Adhesive residue may bind |
No masking | ¥0 | — | Edge buildup reduces clearance 0.1-0.2mm |
Dedicated masking fixture | ¥0.005/cycle | 10,000+ cycles | Best for ultra-high volume (under evaluation) |
After coating and curing, the plug is removed. The masked 50mm zone remains bare metal — but when the column is fully assembled and extended, this zone is hidden inside the outer tube. The visible portion of the inner tube is fully coated.

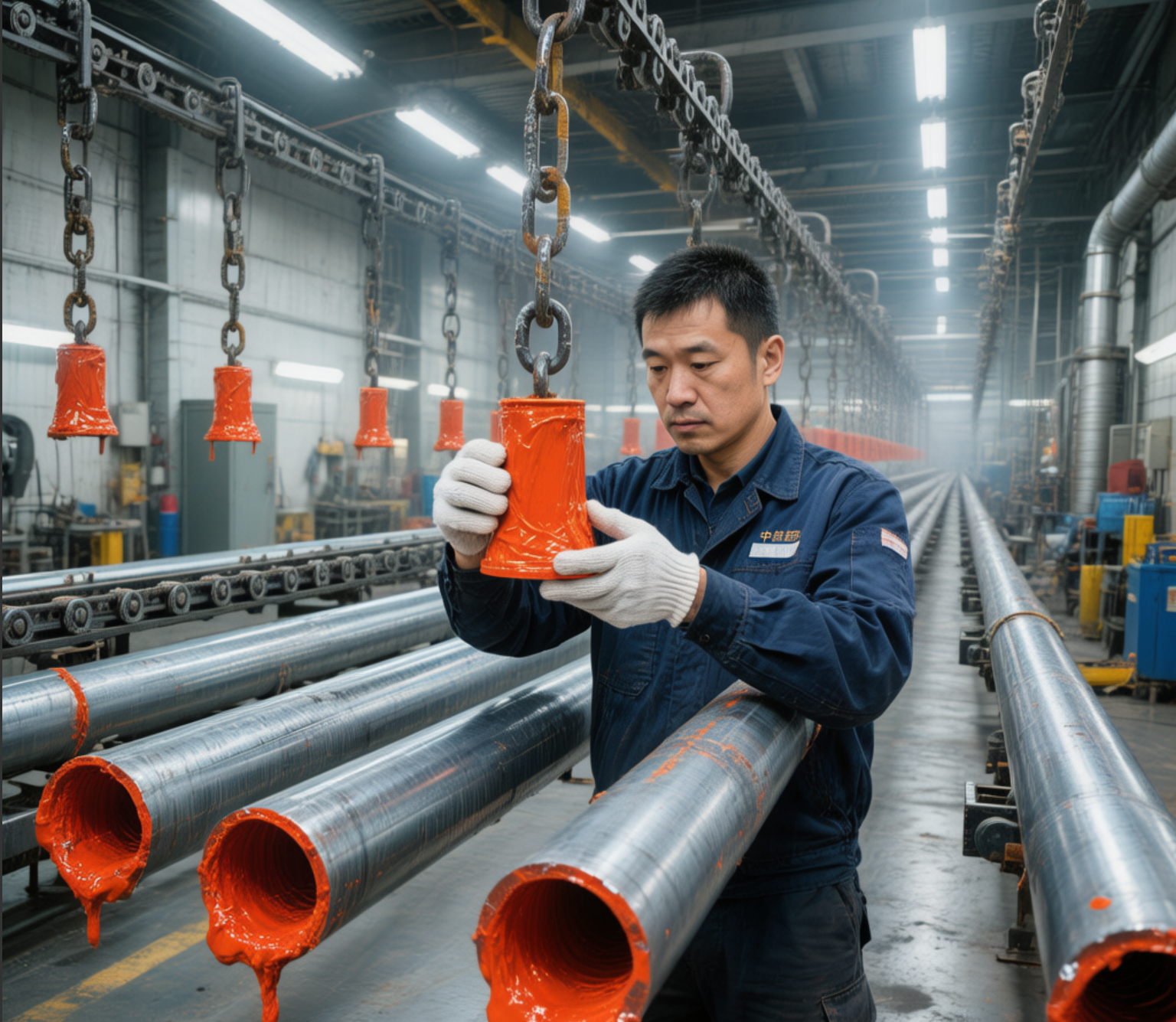

Fig. C2-03 — Worker installing silicone plugs before powder coating; masked tubes queued on overhead conveyor
DingPrecision's Fit Validation
Every finished tube pair undergoes a 100% fit test before packaging:
1. Insert inner tube into outer tube
2. Slide full stroke 3× under light hand pressure
3. Check: no binding, no metal-on-metal grinding sound, no visible scratch marks
4. Verify: end plug masked zone is correctly positioned
Tubes that fail — even marginal cases — are reworked or scrapped. At 400,000 tubes per month, a 1% fit failure rate means 4,000 tubes per month requiring rework. Our masking process keeps this rate below 0.3%.
Clearance Reference Table for Common Tube Pairings
Outer Tube | Inner Tube | Nominal Clearance/Side | After Coating (masked ends) |
70×50×1.5 | 60×40×1.5 | 3.5mm | 3.38mm |
60×40×1.5 | 50×30×1.5 | 3.5mm | 3.38mm |
50×25×1.2 | 40×20×1.2 | 3.8mm | 3.68mm |
Custom sizes | TBD per drawing | Min 2.5mm recommended | Add 0.12mm coating deduction |
