IP Ratings Guide for Battery Enclosures

IP54, IP55, and IP65 Protection Ratings Explained

DINGPRECISION | Dingyi Industrial Technology | May 2026

1. Introduction

When selecting an enclosure for battery storage or electrical equipment, one of the most important specifications is the Ingress Protection (IP) rating. This two-digit standard, defined by IEC 60529, tells you exactly how well an enclosure protects its contents against solid particles (dust, tools, debris) and liquids (water spray, rain, jets). For energy storage systems, getting the IP rating right is not optional - it directly affects safety, reliability, warranty coverage, and regulatory compliance.

The challenge is that higher IP ratings often conflict with another critical requirement for battery enclosures: ventilation. Battery cells generate heat and may release gases during thermal events, requiring airflow paths that can compromise ingress protection. This tension between "keeping things out" and "letting things out" makes IP rating selection a nuanced engineering decision for every battery enclosure design.

At DINGPRECISION, we manufacture custom IP-rated enclosures for battery storage, charging infrastructure, and electrical equipment across residential, commercial, and industrial applications. Our 15,000 sqm facility with ISO9001, ISO14001, and ISO45001 certification enables us to deliver enclosures that meet precise IP specifications, including baffled ventilation designs that maintain IP54/IP55 ratings while providing adequate airflow.

In this guide, we explain the IP rating system as it applies to battery enclosures, provide clear selection criteria for different installation environments, and show how DINGPRECISION achieves high IP ratings without compromising thermal performance.

For a comprehensive overview of enclosure materials, safety standards, and manufacturing capabilities, see our complete Energy Storage Enclosure Design Guide.

2. Understanding the IP Rating System

The IP rating consists of two digits. The first digit (0-6) indicates protection against solid objects and dust. The second digit (0-9K) indicates protection against water ingress. For battery enclosures, the most commonly specified ratings are IP54, IP55, IP65, and IP66.

2.1 First Digit: Solid Particle Protection

2.2 Second Digit: Liquid Ingress Protection

2.3 Supplementary Letters

IP ratings may include supplementary letters that provide additional information. The most common letters for battery enclosure applications include:

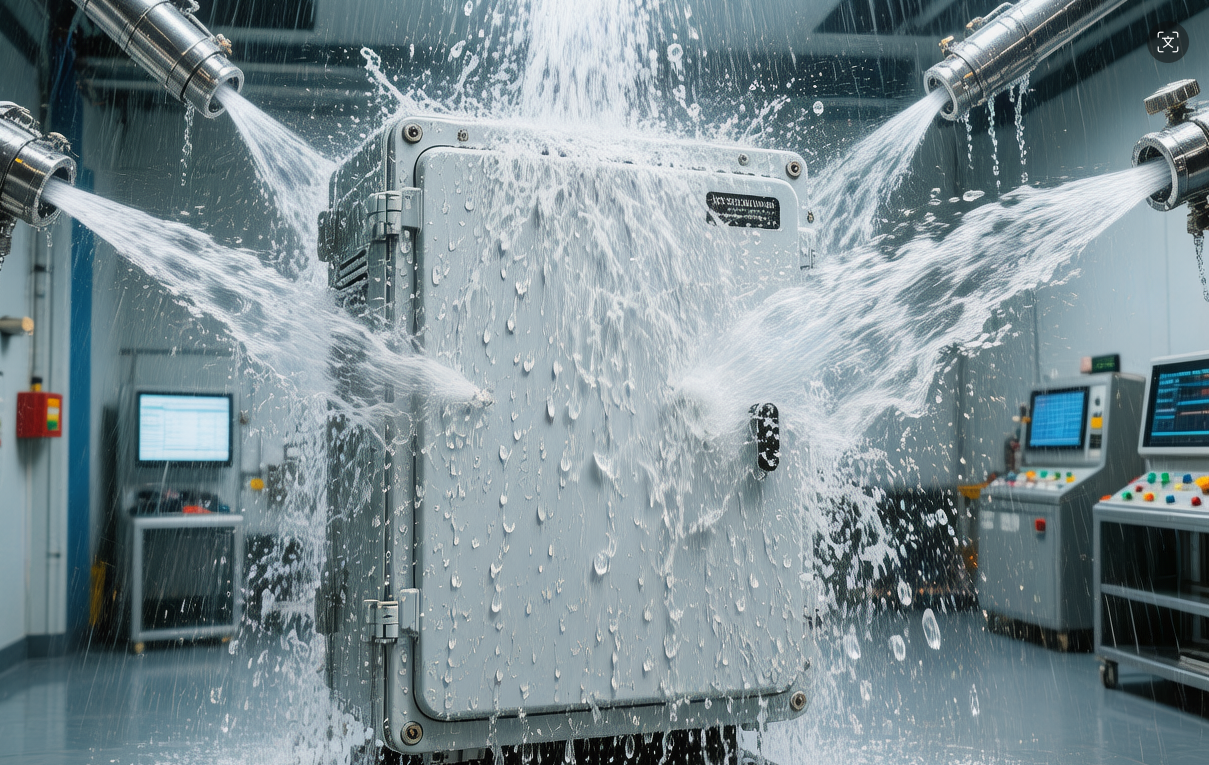

Figure 1: IP65 water jet ingress protection testing on a DINGPRECISION steel enclosure

To understand how our manufacturing process ensures consistent IP-rated enclosures from raw material to finished product, see our 7-step custom manufacturing process.

3. IP Ratings for Battery Enclosures

Not all IP ratings are equal when it comes to battery storage. The choice of IP rating depends on the installation environment, regulatory requirements, and the specific battery chemistry and configuration inside the enclosure.

3.1 IP54 - Minimum for Indoor Installations

IP54 (dust protected, splash water protected) is the minimum recommended rating for any battery enclosure installation. It provides:

- Protection against dust ingress that could cause electrical short circuits

- Resistance to water splashes from any direction

- Suitable for indoor installations, covered outdoor areas, and semi-outdoor applications

Many battery manufacturers including BYD, CATL, and Pylontech specify IP54 as the minimum enclosure rating for their residential and commercial battery modules.

3.2 IP55 - Standard for Outdoor Installations

IP55 (dust protected, water jet protected) is the most commonly specified rating for outdoor battery energy storage systems. It provides:

- All protections of IP54

- Additional protection against low-pressure water jets from any direction

- Suitable for direct outdoor installation with rain and wind exposure

IEC 62619 and UL 1973 typically require IP54 minimum, but most outdoor BESS installations specify IP55 or higher for long-term reliability.

3.3 IP65 - Harsh Environments and Coastal Installations

IP65 (dust tight, water jet protected) provides the highest level of protection commonly specified for battery enclosures. It provides:

- Complete protection against dust ingress (zero dust penetration)

- Protection against low-pressure water jets from any direction

- Suitable for coastal, desert, and industrial environments with aggressive conditions

IP65 enclosures are required for battery installations in marine environments, desert solar farms, and industrial facilities with regular washdown requirements.

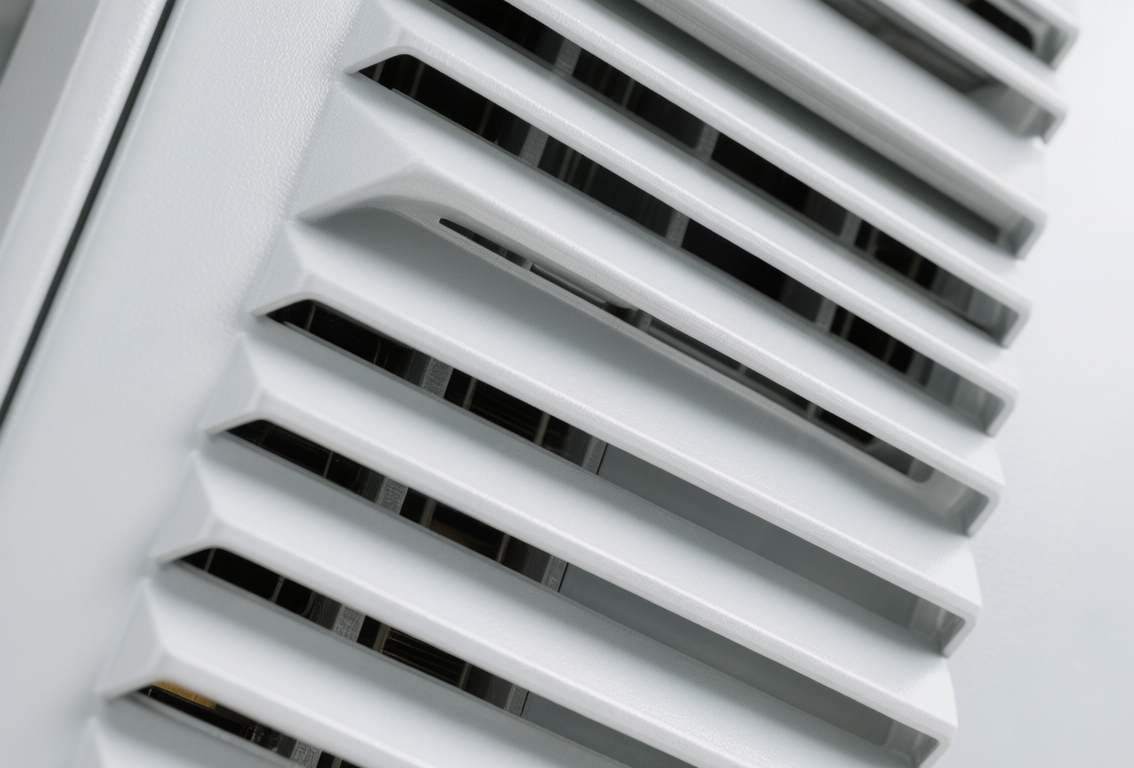

 Figure 2: Close-up of baffled ventilation slots maintaining IP55 rating while allowing airflow

For detailed guidance on how ventilation design works alongside IP rating to manage battery thermal performance, see our battery cabinet thermal management and ventilation design guide.

4. Achieving High IP Ratings Without Compromising Ventilation

The core challenge in battery enclosure design is achieving high IP ratings while maintaining sufficient ventilation for thermal management and gas exhaust during thermal events. DINGPRECISION addresses this through several proven design strategies.

4.1 Baffled Ventilation Design

Baffled ventilation is the primary technique for maintaining IP ratings while allowing airflow. The concept is simple: air flows through a labyrinth path with multiple directional changes, but water droplets and dust particles lack the momentum or aerodynamic properties to follow the same path.

4.2 Gasket and Seal Design

Non-ventilated surfaces of the enclosure rely on gasket seals to maintain IP ratings. Critical seal points include:

- Door gaskets: EPDM or silicone sponge gaskets with minimum 30% compression

- Cable entry glands: IP68-rated cable glands with proper strain relief

- Lid-to-body seal: Continuous gasket in machined groove with 1.5mm minimum engagement

- Rivet and fastener penetrations: Sealed rivets or gasketed bolt holes

4.3 Powder Coating for IP Enhancement

Electrostatic powder coating provides a secondary benefit for IP-rated enclosures: the coating fills microscopic surface imperfections and provides a smooth, continuous surface that enhances gasket sealing performance. DINGPRECISION's powder coating process uses a zirconium conversion coating pretreatment and achieves color consistency within Delta-E <= 1.0 across production batches.

Figure 3: DINGPRECISION outdoor battery enclosure with IP55-rated baffled ventilation system

For a detailed comparison of powder coating and liquid painting options for IP-rated enclosures, see our guide on powder coating vs liquid painting for metal enclosures.

5. IP Rating Selection Guide by Environment

The following table provides clear guidance on IP rating selection based on installation environment and application requirements.

5.1 Regulatory Requirements by Region

For information on customizing enclosures with specific IP ratings, cutouts, and interface designs, explore our customization and cutout design capabilities for battery enclosures.

6. Conclusion

IP rating selection is one of the most consequential decisions in battery enclosure design. Too low an IP rating risks water and dust damage that can cause electrical failures, safety hazards, and warranty voidance. Too high an IP rating without proper engineering can lead to inadequate ventilation, overheating, and thermal management failures.

At DINGPRECISION, our engineering team works with clients to identify the optimal IP rating for each installation environment, and designs baffled ventilation, gasket systems, and surface treatments that achieve the specified protection level without compromising thermal performance. Every enclosure undergoes rigorous testing to verify IP compliance before shipment.

Whether you need an IP54 indoor cabinet, an IP55 outdoor system, or an IP65 coastal-rated enclosure, DINGPRECISION has the experience, equipment, and quality systems to deliver precisely what you need.
