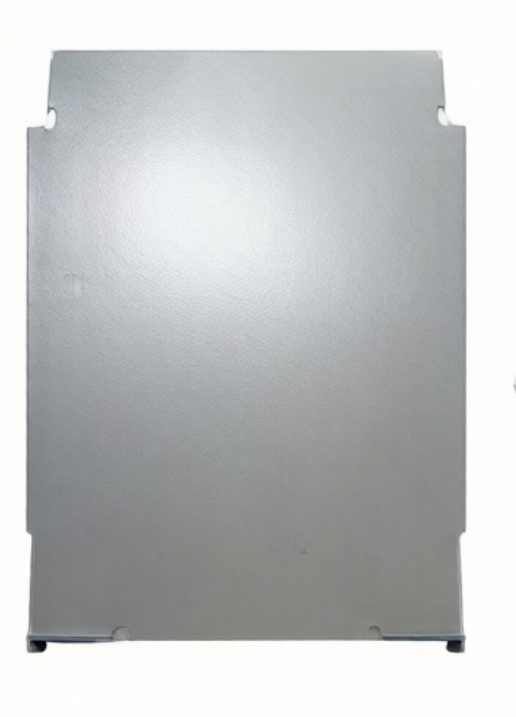

When designing parts for sheet metal stamping, geometry and complexity play crucial roles. It's essential to avoid overly intricate shapes that require deep draws or multiple bending directions. Such designs can lead to production challenges, including material cracking and increased die wear. Ideally, bends should have appropriate radii to prevent stress concentration, which can weaken both the part and the die. Additionally, sharp corners should be minimized, as they can create stress points that may lead to failure during forming.
A good practice is to design parts with a balance between complexity and manufacturability. For instance, while creating a bracket, consider using a simple L-shape instead of a convoluted design with unnecessary curves. This not only simplifies the stamping process but also enhances the part's strength.
Material selection is another critical factor in sheet metal stamping. The chosen material must meet the part's strength, formability, and cost requirements. Common materials include:
Mild Steel: Cost-effective and easy to form, making it suitable for various applications.
Stainless Steel: Offers durability and corrosion resistance, ideal for parts exposed to harsh environments.
Aluminum: Lightweight with good formability, often used in automotive and aerospace applications.
Brass and Copper: Excellent for electrical components due to their conductivity.
Each material has its unique properties and processing characteristics, which can influence the design. For example, aluminum may require larger bend radii compared to steel due to its tendency to crack under stress.
The strip layout, or progression design, is vital for maximizing material utilization and die efficiency. A well-planned layout minimizes scrap and optimizes the use of available material. Key considerations include:
Nesting: Use software to arrange parts efficiently along the strip, reducing waste.
Web Width: Ensure sufficient web width to maintain the strip's strength during feeding. A wider web can help prevent deformation and misalignment.
Part Orientation: Position parts to minimize movement and handling during the stamping process. This can enhance production speed and reduce the risk of errors.
By carefully designing the strip layout, manufacturers can achieve higher yields and lower production costs. This attention to detail can make a significant difference in the overall efficiency of the stamping process.
Establishing realistic tolerances is essential. While tighter tolerances can enhance part quality, they also increase production complexity and costs. It's wise to specify tighter tolerances only for critical dimensions and relax them where possible. This approach can help manage production costs effectively.
Surface finish is another consideration. Depending on the application, parts may require secondary operations like plating or deburring to achieve the desired finish. Understanding these needs early in the design process can streamline production and ensure that the final product meets specifications.
Incorporating pilot holes or alignment features is crucial for maintaining accuracy throughout the stamping process. These features help ensure that the metal strip remains correctly positioned as it moves through the die stations. Conical pilots are particularly effective for high-precision alignment, as they engage with pre-punched pilot holes, correcting any misalignments that may occur during the feeding process.
By focusing on these design considerations, manufacturers can enhance the efficiency and effectiveness of their sheet metal stamping operations, leading to higher quality parts and reduced waste.
Sheet metal stamping, especially progressive die stamping, offers high production speed and cost efficiency. It ensures consistent quality and precision while optimizing material use. As industries evolve, automation and advanced technology will drive future trends in stamping. Manufacturers should consider design for manufacturability to enhance efficiency. For those seeking reliable solutions, Dingyi provides innovative stamping products that deliver exceptional value and quality, ensuring your manufacturing needs are met effectively.
A: Sheet metal stamping is a manufacturing process that uses dies to shape and cut metal sheets into specific forms, allowing for high precision and efficiency in producing parts.
A: The process involves feeding a coil of metal into a stamping press, where multiple die stations perform operations like punching and bending to create finished parts.
A: Sheet metal stamping offers high production speeds, cost efficiency, and consistent quality, making it ideal for industries like automotive and electronics.
A: Initial tooling costs for sheet metal stamping can be high, often requiring significant investment, but it becomes cost-effective for high-volume production runs.
A: The benefits include high-speed production, material efficiency, consistent quality, and compatibility with automation, enhancing overall manufacturing processes.
A: Troubleshooting in sheet metal stamping involves checking for misalignment, tool wear, and ensuring proper maintenance of dies and equipment to prevent defects.
