Robotics and smart automation systems operate in unforgiving environments. Sensitive internal components like motor drives, printed circuit boards, IoT sensors, and edge computing devices face constant physical threats. High vibration, moisture, dust, and chemical exposure easily trigger catastrophic downtime. Off-the-shelf housings force engineers into unacceptable design compromises. Standard boxes rarely accommodate proprietary form factors or dynamic weight constraints. They struggle with the specific thermal loads and complex cable routing required for advanced automation efficiency.
Treating enclosures as an afterthought invites hardware failure. Engineering Custom Metal Enclosures solves these spatial and environmental challenges directly. This guide serves as a technical blueprint for specifying, evaluating, and sourcing custom sheet metal housings tailored specifically for the robotics industry. You will learn how to match materials to environmental threats, integrate thermal management, and apply strict manufacturing principles to scale production smoothly.
Material Selection Dictates Performance: The choice between aluminum, stainless steel, and cold-rolled steel directly impacts weight, thermal conductivity, and environmental resilience (e.g., washdown vs. dry environments).
DFM Drives Scalability: Early integration of Design for Manufacturability (DFM) principles—such as standardized bend radii, strategic hardware placement, and optimized welding techniques—prevents cost overruns during the transition from prototype to production.
Compliance is Non-Negotiable: Achieving specific IP or NEMA ratings requires precise engineering of seams, gaskets, and cutouts to protect against dust, fluids, and EMI/RFI interference.
Prototyping Mitigates Risk: Physical validation of custom enclosures is required to verify kinematic clearances, vibration resistance, and thermal management assumptions before volume manufacturing.
Table of Contents

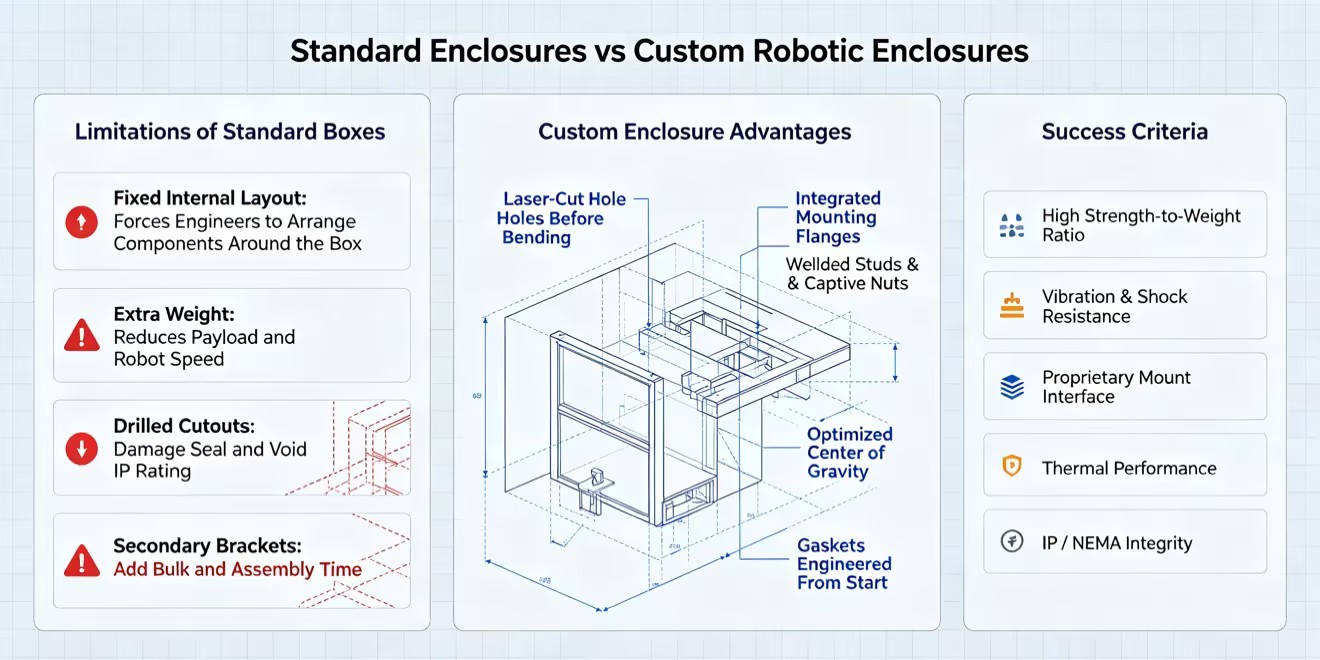

Custom robotic enclosures help optimize space, weight, and performance. Standard enclosures are often bulky and may limit robot speed, payload capacity, and internal component layout. For applications such as robot arms and AMRs, the enclosure should be designed around the equipment rather than forcing the system to adapt to a standard box. Custom fabrication also avoids issues caused by modifying existing housings, such as weakened structures and reduced protection ratings. Precise laser cutting and integrated mounting features ensure better fit, reliability, and easier assembly.
Feature | Off-the-Shelf Enclosures | Custom Metal Enclosures |
|---|---|---|
Form Factor | Fixed dimensions; forces internal layout compromises. | Built to exact specifications; optimizes internal space. |
Weight Optimization | Standardized gauges; often heavier than necessary. | Material and gauge selected specifically for payload limits. |
IP Rating Integrity | Voided immediately upon drilling custom cutouts. | Engineered into the design; guaranteed after fabrication. |
Mounting Integration | Requires secondary adapter plates and brackets. | Integrated flanges and welded studs eliminate adapters. |
Robotic housings must meet strict baseline requirements. You need high strength-to-weight ratios to maintain agility. Vibration and shock resistance ensure internal components survive continuous motion. Seamless integration with proprietary mounting interfaces eliminates clumsy adapter plates. The enclosure must act as a protective exoskeleton, not just a storage box.
Custom Metal Enclosures safeguard critical smart industry components. Protecting IoT gateways and edge controllers directly boosts overall automation efficiency. Uptime increases when sensitive electronics remain isolated from factory hazards. A well-designed housing prevents dust from bridging electrical contacts and stops moisture from corroding delicate sensor arrays.
Custom fabrication delivers clear returns. Assembly time drops when cutouts align perfectly with your hardware. Optimized thermal performance prevents processor throttling. Ultimately, purpose-built housings extend the lifecycle of your most expensive internal components. The initial engineering effort pays off rapidly through reduced maintenance and faster deployment times.
Aluminum is a popular choice for mobile robots and end-of-arm applications because it is lightweight and naturally corrosion resistant. Its low weight helps robots carry heavier tools and move faster, while its high thermal conductivity allows the enclosure to dissipate heat effectively without additional cooling. However, aluminum has lower strength than steel and requires skilled welding to avoid deformation. 5052 aluminum is commonly used for enclosures due to its good forming and welding performance, while 6061 aluminum provides higher strength but requires more careful bending to prevent cracking.
Stainless steel is ideal for harsh environments such as food processing, medical, and washdown robotics. It offers excellent corrosion resistance and can withstand chemicals and high-pressure cleaning. 304 stainless steel is suitable for general applications, while 316L provides better protection in marine or chemical environments due to its higher corrosion resistance. Passivation can further improve surface protection. However, stainless steel is heavier and more expensive to process than aluminum, requiring more advanced cutting and bending equipment.
Cold-rolled steel is ideal for heavy-duty robotic bases and large industrial cabinets that require high strength and rigidity. It provides excellent structural support for heavy payloads and high-torque robot arms. Galvanized steel adds extra corrosion protection with a zinc coating, while surface treatments such as powder coating or industrial painting are necessary to prevent rust. A durable finish helps maintain long-term reliability, especially in demanding factory environments.
Material | Primary Advantage | Thermal Conductivity | Best Robotic Application |
|---|---|---|---|
Aluminum 5052 | Lightweight, easy to form | High (~138 W/m·K) | AMRs, End-of-Arm Tooling, Drones |
Stainless Steel 316L | Extreme chemical resistance | Low (~16 W/m·K) | Food processing, Medical, Washdown |
Cold-Rolled Steel | High rigidity, cost-effective | Moderate (~50 W/m·K) | Stationary bases, Control cabinets |
Achieving IP65, IP67, or NEMA 4X protection requires careful sealing design. Every seam, joint, and opening must prevent water and dust from entering. High IP-rated enclosures typically use continuous welding, overlapping flanges, and properly designed gasket channels. Molded polyurethane gaskets provide reliable sealing by reducing gaps at corners, while EPDM and silicone gaskets are selected based on temperature and environmental conditions. Proper gasket compression ensures long-term protection in harsh robotic applications.
Servo drives and power supplies generate significant heat, so thermal management should be built into the enclosure design. Active cooling uses fans and filters to remove heat, while passive cooling relies on heat sinks, vents, and metal conduction without moving parts. The right solution depends on the application environment, especially factors like dust, vibration, and heat load. Proper airflow calculations help ensure the cooling system can maintain reliable operation of robotic electronics.
Robotic sensors and communication arrays are highly vulnerable. Electromagnetic interference disrupts signal integrity. Factory floors are noisy environments filled with high-voltage equipment, variable frequency drives, and arc welders. A stray signal can cause a robot to miscalculate a movement, leading to collisions.
Design enclosures to function as Faraday cages. Use conductive gaskets, such as beryllium copper finger stock or wire mesh, to maintain electrical continuity across doors and removable panels. Keep seam gaps smaller than the wavelength of the interfering frequencies. Specify appropriate material thicknesses to block low-frequency magnetic fields effectively. Ensure all painted surfaces have masked areas to allow metal-to-metal grounding contact.
Robotic enclosures must withstand continuous vibration and dynamic loads to protect internal electronics. Reinforced structures, such as ribs and gussets, help prevent panel deformation, while vibration-isolating mounts protect circuit boards from shock damage. Proper weight distribution and structural simulation can improve reliability before production. Custom mounting features, including DIN rails, flanges, and captive nuts, simplify installation and provide stronger, more secure connections than standard screws.
Standardizing bend radii helps simplify production and reduce manufacturing costs. Using the same radius across an enclosure allows fabricators to use fewer tooling setups and improves production efficiency. Sheet metal bending also has natural variations due to material springback, so designs should include proper clearances and realistic tolerances. Using slots instead of tight round holes can improve assembly flexibility and ensure better fit during production.
TIG welding creates clean, precise, and watertight seams, making it suitable for enclosures requiring high IP protection. Its accurate heat control helps prevent damage to thin materials. MIG welding provides faster production and works well for thicker structures such as heavy robotic bases, while spot welding is useful for attaching internal brackets. Excessive weld grinding can affect strength and dimensional accuracy, so finishing should only be applied where needed for appearance, safety, or assembly requirements.
Integrate self-clinching hardware like PEM nuts, standoffs, and studs. This eliminates loose hardware during robotic assembly. Captive fasteners speed up installation and prevent dropped nuts from shorting out internal electronics. Pressing hardware into the metal creates a permanent, high-torque thread.
Space cutouts strategically away from bend lines. Placing holes too close to a bend causes material deformation. The hole will stretch and distort, making hardware installation impossible. Follow these specific DFM rules for cutouts:
Maintain a minimum distance of 2.5 times the material thickness between the edge of a hole and the nearest bend line.
Space holes at least two times the material thickness apart to prevent web tearing during punching.
Ensure cutout diameters are equal to or greater than the material thickness to avoid punch tool breakage.
Align slots parallel to the bend line whenever possible to minimize material distortion.
Surface finishing protects robotic enclosures from corrosion, scratches, and environmental damage. Powder coating provides a durable protective layer, while anodizing improves aluminum surface hardness and chemical conversion coatings offer corrosion resistance while maintaining electrical conductivity. The finish should match the working environment and grounding requirements. Coating thickness must also be considered during design, as extra buildup can affect holes, threads, and electrical connections. Proper masking of critical areas ensures smooth assembly and reliable performance.
Prepare your 3D CAD models and clearly define your specific environmental requirements, including IP and NEMA ratings.
Select your enclosure materials based strictly on the operating environment, weight limits, and thermal dissipation needs.
Apply DFM principles immediately to your designs to standardize bend radii and optimize hardware placement.
Engage with a specialized sheet metal fabrication partner for a comprehensive DFM review before finalizing your drawings.
Request a prototyping quote to physically validate your design, test cable routing, and verify thermal performance before committing to volume production.
A: Aluminum is generally best for mobile robotics due to its high strength-to-weight ratio and excellent thermal conductivity. For highly corrosive or washdown environments, 304 or 316L stainless steel is the superior choice. Cold-rolled steel works well for heavy, stationary robotic bases where weight is not a concern.
A: Achieving an IP67 rating requires continuous, watertight welds, flanged overlapping edges, and precisely engineered gasket channels. Using poured-in-place polyurethane gaskets eliminates corner seams, providing superior protection against dust and temporary submersion. All external hardware must also feature sealing washers.
A: Specify TIG welding for thin-gauge materials and enclosures requiring precise, watertight seams for high IP ratings. Use MIG welding for thicker materials, such as heavy stationary robotic bases, where faster production speeds are required and aesthetics are less critical.
A: Prototyping lead times typically range from two to four weeks. This depends heavily on material availability, the complexity of the bends and welds, and any specialized surface finishing requirements like custom powder coating or anodizing.
A: Powder coating adds a measurable layer of thickness, typically between 2 to 4 mils (0.05 to 0.1 mm) per surface. You must design cutouts with this added thickness in mind and explicitly mask threaded holes and grounding points to ensure proper assembly.
A: Yes. By designing the enclosure as a Faraday cage, utilizing conductive gaskets, minimizing seam gaps, and selecting appropriate material thicknesses, custom enclosures effectively block electromagnetic interference and protect sensitive robotic sensors from signal disruption.
A: Common mistakes include placing cutouts too close to bend lines, specifying multiple different bend radii that require excessive tool changes, and failing to account for material thickness and coating buildup in the final assembly tolerances.
