Pretreatment is the first and most critical step in determining coating adhesion and durability. Industry statistics show that over 85% of premature coating failures (peeling, blistering, and corrosion within one year) can be attributed to improper pretreatment.
This article provides a comprehensive technical standard for the eco-friendly phosphating-free zirconium conversion coating pretreatment process, covering:
Degreasing parameters and quality control
Zirconium conversion coating technology
Water rinsing and drying standards
Inspection methods and frequency
The pretreatment process line typically follows this sequence:

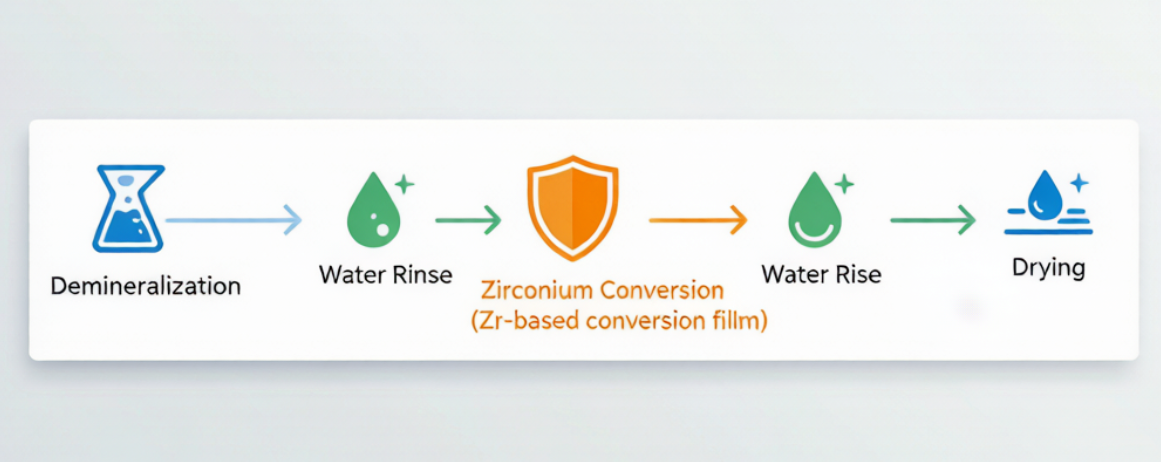

Degreasing → Water Rinse → Zirconium Conversion Coating → Water Rinse → DI Water Rinse → Drying
The quality of pretreatment directly affects:
Coating adhesion strength
Corrosion resistance performance
Coating appearance uniformity
Product service life
The degreasing step removes rolling oils, rust preventatives, and contaminants from SPCC/SGCC sheet surfaces. Inadequate degreasing leads to cratering and poor adhesion (cross-cut test grade 3 or below) after painting.
表格
Parameter | Control Range | Notes |
|---|---|---|
Solution type | Alkaline | pH 10.5-12.0 |
Free alkalinity | 5-15 points | >15 points may cause over-etching |
Temperature | 50-60°C | Optimal reaction range |
Treatment time | 3-5 minutes | Immersion or spray |
Free Alkalinity Test Method: Titrate 10 mL of degreasing solution with 0.1 mol/L HCl to phenolphthalein endpoint.
表格
Item | Standard |
|---|---|
Replacement cycle | Every 2 weeks, or when free alkalinity <3 points |
Testing frequency | Minimum 2 times per shift (start + mid-shift) |
Quality acceptance | Water break test ≥15 seconds |
Water Break Test Method: Immerse the degreased panel in deionized water, lift it out, and observe the water film. A continuous water film lasting ≥15 seconds without breaking is considered pass.
Zirconium conversion coating forms a Zr(OH)₄/ZrO₂·nH₂O amorphous conversion film on the metal surface, with a film weight controlled at 30-100 mg/m².
Three key advantages over traditional phosphating:
✅ Environmentally friendly – No phosphorus, no heavy metals (Ni²⁺/Mn²⁺)
✅ Wider process window – Temperature 15-40°C (vs. 50-60°C for phosphating)
✅ Simpler wastewater treatment – No sludge, no nozzle clogging
表格
Parameter | Control Range | Testing Frequency |
|---|---|---|
pH | 4.0-5.0 | Per shift |
Temperature | 15-40°C | Per shift |
Treatment time (immersion) | 1.5-3 minutes | Process setting |
Treatment time (spray) | 1-2 minutes | Process setting |
Zirconium ion concentration | 80-200 ppm | Daily |
Procedure: Immerse a known-area coated panel in 5% CrO₃ solution at 75°C for 5 minutes to dissolve the conversion film. Calculate film weight by weight loss.
Acceptable range: 30-100 mg/m²
<20 mg/m²: Insufficient corrosion protection
>150 mg/m²: Reduced coating adhesion
The post-treatment film should exhibit a uniform light yellow to blue-purple interference color (depending on film weight), with no missed areas, white spots, or flow marks. Use a 100× microscope to check film uniformity.
The process uses counter-current overflow rinsing for optimal cleaning:
表格
Rinse Stage | Conductivity Requirement | Control Method |
|---|---|---|
Stage 1 rinse | ≤100 μS/cm | Overflow discharge |
Stage 2 rinse (DI water) | ≤50 μS/cm | Overflow discharge |
Final rinse (DI water) | Resistivity ≥1 MΩ·cm | Ensure no residue |
If conductivity exceeds the limit, increase overflow discharge or replace the bath solution.
表格
Parameter | Control Range | Notes |
|---|---|---|
Drying temperature | 100-120°C | Multi-point temperature verification |
Drying time | 10-15 minutes | Adjust based on part thickness |
Temperature uniformity | ±5°C | Prevent localized over/under drying |
Warning: Insufficient drying temperature or time leaves moisture on the surface, causing blistering or pinhole defects during powder coating curing.
表格
Inspection Item | Method | Standard | Frequency |
|---|---|---|---|
Degreasing effectiveness | Water break test | ≥15 seconds | 2 times per shift |
Conversion film weight | Gravimetric (CrO₃ dissolution) | 30-100 mg/m² | Daily |
Conversion film appearance | Visual + 100× microscope | Uniform light yellow to blue-purple | 1 time per shift |
Rinse water conductivity | Conductivity meter | ≤50 μS/cm | Daily |
Drying temperature | Multi-point temperature recording | 100-120°C ±5°C | Daily |
Root causes: Low free alkalinity, insufficient temperature, or short treatment time.
Solutions:
Adjust free alkalinity to 5-15 points
Ensure temperature at 50-60°C
Extend treatment time to 3-5 minutes
Film weight too low (<20 mg/m²):
Check if pH is too high or too low
Check if zirconium ion concentration is low
Extend treatment time
Film weight too high (>150 mg/m²):
Reduce zirconium ion concentration
Shorten treatment time
Check for chemical residue contamination from previous stages
Root cause: Residual moisture on the workpiece surface.
Solutions:
Verify drying temperature reaches 100-120°C
Confirm sufficient drying time
Ensure workpiece surface is properly drained after rinsing
The pretreatment process is the foundation of metal surface coating quality. By adopting the eco-friendly phosphating-free zirconium conversion coating process, manufacturers can:
Meet increasingly stringent environmental regulations
Ensure excellent coating adhesion and durability
Achieve consistent quality through precise process control
表格
Step | Critical Parameter | Pass/Fail Criteria |
|---|---|---|
✅ Degreasing | Free alkalinity 5-15 points, temperature 50-60°C | Water break ≥15s |
✅ Zirconium conversion | pH 4.0-5.0, film weight 30-100 mg/m² | Uniform interference color |
✅ Water rinsing | Conductivity ≤50 μS/cm | Counter-current overflow |
✅ Drying | 100-120°C × 10-15 min, uniformity ±5°C | No moisture residue |
Only by strictly controlling each step can manufacturers achieve high-quality pretreatment results, laying a solid foundation for subsequent coating processes.
