Thermal management is the single most critical factor determining the lifespan, safety, and performance of battery energy storage systems (BESS). For OEMs designing enclosures in the 5-100 kWh range — covering wall-mounted home batteries, commercial floor-standing cabinets, and industrial-scale racks — the enclosure design directly impacts how heat moves, where hotspots form, and whether the system runs safely for its rated life.
This guide covers the fundamental thermal design strategies every enclosure OEM should know, compares active versus passive cooling approaches, and explains how DINGPRECISION's one-stop sheet metal fabrication supports optimal thermal performance from drawing to delivery.
Lithium-ion batteries operate best within a narrow temperature band — typically 15°C to 35°C. Every 10°C above this range can cut cycle life by half. In a 50 kWh cabinet generating 1-3 kW of heat during fast charging or high-rate discharge, poor thermal design leads to:
• Accelerated cell degradation (capacity fade 2-3x faster)
• Thermal runaway risk in extreme cases
• Reduced charge/discharge efficiency
• Uneven cell temperatures creating imbalance across modules
• Premature system failure and warranty claims
The enclosure is not just a box — it is the thermal envelope. Its design determines how effectively heat moves from cells to the outside environment.
Passive cooling relies on natural convection, radiation, and conduction — no moving parts, no power draw, no maintenance. Suitable for systems under 30 kWh with moderate charge/discharge rates.
Key design elements for passive cooling:
Element | Design Principle | Typical Improvement |
Enclosure surface area | Maximize external surface-to-volume ratio | 15-25% better dissipation |
Finned sidewalls | Vertical aluminum fins increase convective area | 30-50% more heat transfer |
Ventilation grilles | Natural convection inlet/outlet with IP-rated baffles | 20-40% airflow improvement |
Thermal interface materials | Gap pads between cells and enclosure wall | 5-10°C reduction at cell level |
Reflective exterior coating | White/high-IR-emissivity powder coating | 3-5°C reduction in direct sun |
When to choose passive cooling:
• Residential wall-mounted batteries (5-20 kWh)
• Indoor installations with ambient temperature control
• Low C-rate applications (≤0.5C charge/discharge)
• Cost-sensitive projects where active cooling adds 15-25% to enclosure cost
Active cooling uses fans, pumps, or compressors to move heat. Necessary for systems above 30 kWh, high C-rate applications, or outdoor installations in hot climates.
Method | Heat Transfer Capacity | Power Draw | Best For |
Forced air (fans) | 50-150 W/°C | 10-50 W | 30-50 kWh cabinets |
Cold plate + liquid | 200-500 W/°C | 50-200 W | 50-100 kWh, high-rate |
Refrigeration cycle | 500-2000 W/°C | 200-800 W | Extreme environments |
Immersion cooling | 1000+ W/°C | 100-300 W | Utility-scale only |
Material | Thermal Conductivity | Relative Cost | Weight | Corrosion Resistance | Best Application |
Steel (SPCC/SECC) | 50 W/m·K | 1x (baseline) | Heavy | Good (with coating) | Indoor, cost-sensitive |
Stainless steel (SUS304) | 15 W/m·K | 2-3x | Heavy | Excellent | Outdoor, coastal |
Aluminum (5052/6061) | 160-200 W/m·K | 2-2.5x | Light | Good | Thermal-critical designs |
Galvanized steel (DX51D) | 50 W/m·K | 1.1x | Heavy | Very good | Outdoor value option |
Aluminum-clad steel | 100-130 W/m·K | 1.8x | Medium | Good | Best compromise |
Proper airflow design prevents hot air recirculation and ensures uniform cell temperatures.
Hot air rises. Always design air inlets at the bottom and outlets at the top. A 300 mm tall cabinet with bottom inlet and top outlet achieves 40-60% better natural convection than side-to-side flow.
Maintain minimum 20 mm clearance between battery modules for airflow. Below 20 mm, airflow resistance increases exponentially.
Use baffles to force air across all modules. A well-designed baffle system can reduce the temperature delta between cells from 8°C to under 3°C.
IP Rating | Ventilation Strategy | Application |
IP54 | Baffled vents with mesh filter | Outdoor, dust-prone |
IP55 | Vents with hydrophobic membrane | Coastal, humid |
IP65 | No passive vents - active cooling required | Washdown, heavy rain |

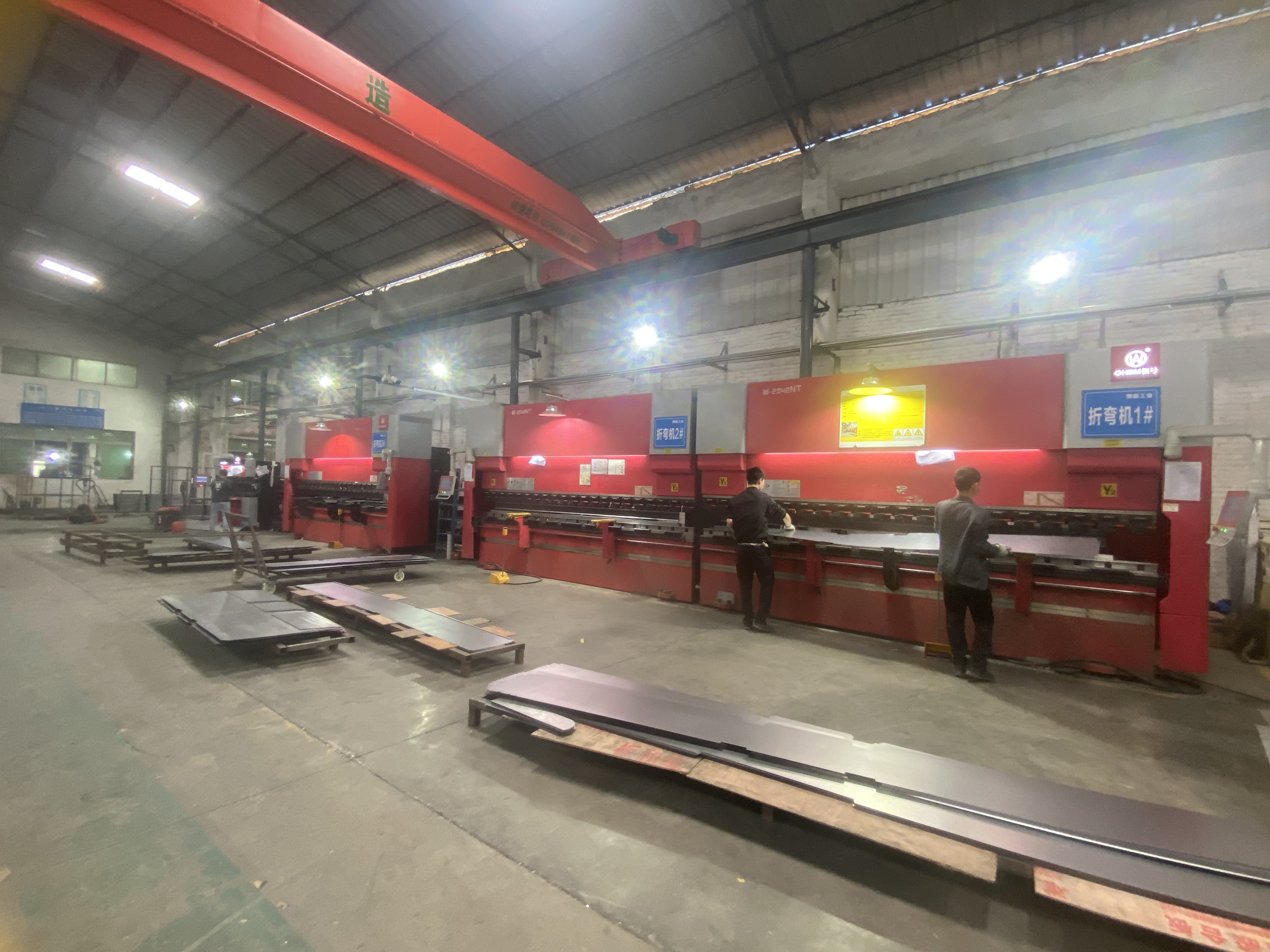

• Finned sidewall fabrication — 8.4 m CNC press brakes form complex fin geometries in a single pass
• Precision vent cutouts — 15 laser cutters (6000W) cut ventilation grilles with ±0.1 mm precision
• Multi-material joining — Robotic welding stations join aluminum heat sinks to steel enclosures
• High-emissivity coating — Powder coating achieves IR emissivity ≥0.9, improving radiative cooling by 15-20%
Most lithium-ion chemistries operate optimally between 15°C and 35°C. The enclosure should maintain cell temperatures within this range under rated conditions at ambient temperatures from -10°C to 50°C.
During 1C charge/discharge, a 50 kWh lithium-ion system generates approximately 1.5-3 kW of waste heat, depending on cell chemistry and efficiency.
For systems under 30 kWh with indoor installation and moderate C-rates, passive cooling is usually sufficient. For 30-100 kWh outdoor systems, active cooling is recommended.
