Battery Cabinet Thermal Management

DINGPRECISION | Battery Enclosure Series — Article #2

Battery Cabinet Thermal Management

Ventilation Design That Prevents Thermal Runaway

DINGPRECISION | Dingyi Industrial Technology | May 2026

1. Introduction

Thermal runaway in lithium-ion battery systems is one of the most critical safety concerns in the energy storage industry. As battery energy storage systems (BESS) scale to higher capacities - from residential 5kWh units to utility-grade MWh installations - the risk of catastrophic thermal events increases proportionally. Thermal runaway occurs when a battery cell enters an uncontrollable, self-heating state that can propagate to adjacent cells, releasing flammable gases and potentially causing fire or explosion.

The enclosure design plays a pivotal role in preventing thermal runaway escalation. Proper ventilation is not merely about cooling - it is about controlling gas flow, managing heat propagation, and providing a controlled exhaust path in the event of a cell failure. According to industry data, well-designed thermal management systems can reduce the probability of cascading thermal runaway by up to 80% compared to inadequately ventilated enclosures.

At DINGPRECISION, we have manufactured over 15,000 custom sheet metal enclosures for battery and energy storage applications across residential, commercial, and industrial sectors. Our 15,000 sqm production facility and 17M+ CNY equipment investment enable us to produce enclosures with the precision required for effective thermal management - including ±0.1mm laser cutting accuracy for ventilation features, baffled airflow pathways, and integrated fire-rated compartment designs.

In this guide, we cover the engineering principles of ventilation-driven thermal management for battery cabinets, from fundamental physics to practical enclosure design strategies. Whether you are designing a residential battery cabinet or a utility-scale containerized storage system, these principles apply directly to your enclosure design.

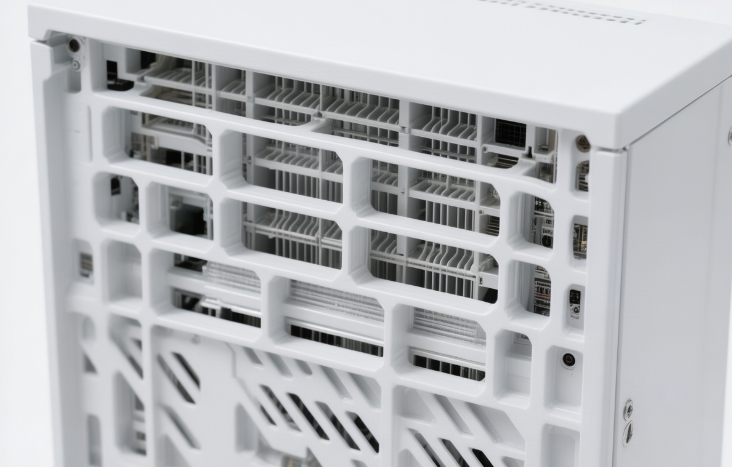

Figure 1: DINGPRECISION battery energy storage enclosure with engineered ventilation slots

For a comprehensive overview of enclosure materials, safety standards, and customization options, see our complete Energy Storage Enclosure Design Guide.

2. Understanding Thermal Runaway in Battery Systems

Thermal runaway is a chain reaction that begins when a lithium-ion battery cell exceeds its stable operating temperature range, typically above 60°C for most LFP (lithium iron phosphate) chemistries and above 80°C for NMC (nickel manganese cobalt) variants. The process follows a distinct sequence:

2.1 The Thermal Runaway Cascade

Stage 1 - Abuse Onset: The trigger event can be electrical (overcharge, internal short circuit), mechanical (nail penetration, crush), or thermal (external fire, adjacent cell failure). At this stage, the cell separator begins to collapse, initiating internal short circuits.

Stage 2 - Gas Generation (120-200°C): Decomposition of the electrolyte releases flammable gases including hydrogen, methane, ethylene, and carbon monoxide. Internal pressure builds within the cell.

Stage 3 - Thermal Propagation (200-400°C): If heat removal is insufficient, adjacent cells begin heating through conduction and radiative heat transfer. This is the cascading failure phase where enclosure ventilation design is most critical.

Stage 4 - Full Runaway (400-1000°C+): Catastrophic cell failure with flame, ejection of molten materials, and release of large volumes of toxic and flammable gases.

Figure 2: Thermal runaway testing chamber for battery safety validation

2.2 Temperature Thresholds by Chemistry

3. Ventilation Design Principles

Effective ventilation serves three critical functions in battery cabinet design: heat dissipation during normal operation, gas exhaust during abnormal conditions, and thermal barrier maintenance to prevent cascading failure.

3.1 Natural Convection Systems

Natural convection relies on buoyancy-driven airflow through strategically placed intake and exhaust vents. The key design parameters include:

3.2 Forced Air Systems

For systems above 50kWh or high-density module configurations, forced air ventilation becomes necessary. Key considerations include fan selection, airflow path optimization, and redundancy for fail-safe operation.

3.3 Hybrid Ventilation Systems

Hybrid systems combine natural convection for normal operation with forced air augmentation during high-load conditions and emergency exhaust capability for thermal events. This approach minimizes energy consumption while providing maximum safety coverage.

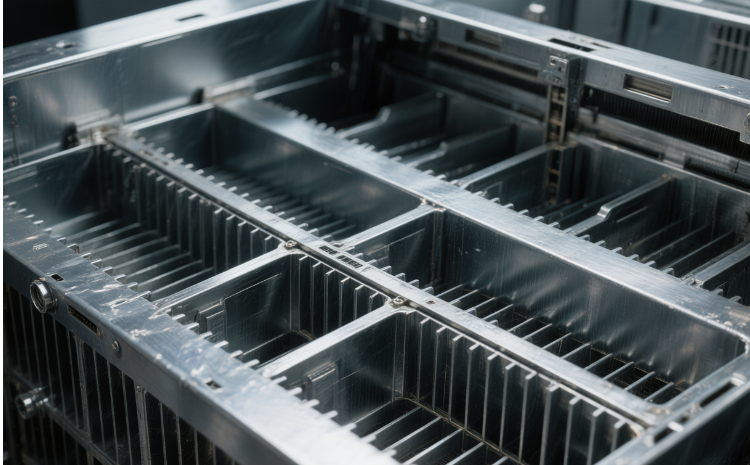

Figure 3: Engineered ventilation baffles with directional airflow channels

4. Thermal Propagation Prevention

4.1 Cell-to-Cell Propagation

The primary mechanism of cascading failure is cell-to-cell thermal propagation through conduction, convection, and radiation. The enclosure design must address all three heat transfer modes.

4.2 Compartmentalization Design

Compartmentalization divides the battery cabinet into discrete zones, each isolated with fire-rated partitions. This design limits thermal propagation to a single compartment, protecting adjacent modules.

4.3 Fire-Rated Materials

Material selection for fire-rated compartments balances thermal insulation performance with structural integrity and weight constraints.

For detailed guidance on achieving IP54/IP55 protection while maintaining ventilation airflow, see our guide on IP54 vs IP65 protection ratings for energy storage enclosures.

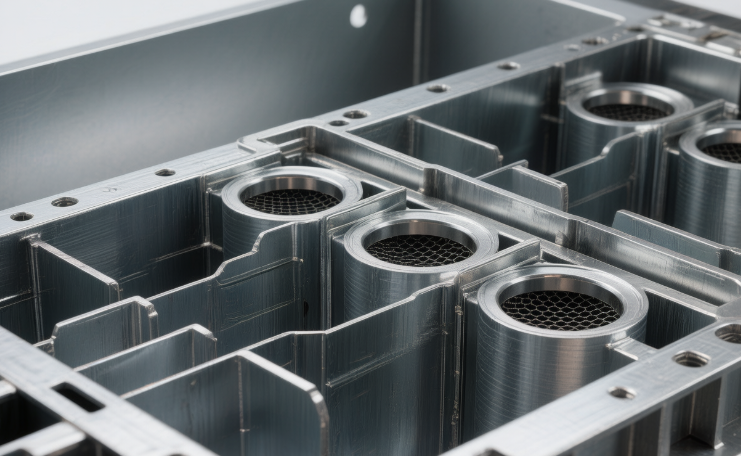

Figure 4: Fire-rated compartment partitions with emergency thermal vent openings

5. Ventilation Types & Configuration

5.1 Intake Vent Design

Intake vents must balance three competing requirements: maximum airflow, IP rating maintenance, and prevention of foreign object entry. DINGPRECISION's standard intake vent design uses 3-5mm horizontal slots with 30° baffles, achieving up to 85% of open-slot airflow while maintaining IP54 ingress protection.

5.2 Outlet Vent Design

Outlet vents are sized 20% larger than intake vents to promote the chimney effect and prevent positive pressure buildup within the enclosure. For systems with forced air, outlet vents include normally-open backdraft dampers that allow emergency gas exhaust even when fans are inactive.

5.3 Emergency Vent Design

Emergency thermal runaway vents are independent of normal ventilation and are designed to open only under extreme conditions. Fusible-link activated vents (rated at 93°C or 110°C) provide a fail-safe exhaust path for hot gases and pressure relief during thermal events.

To learn about integrating custom ventilation cutouts and interface openings into your enclosure design, explore our customization and cutout design capabilities.

6. Calculations & Specifications

Proper thermal management requires accurate calculations of heat loads, airflow requirements, and ventilation sizing. The following specifications serve as design guidelines for battery cabinet ventilation systems.

For surface treatment specifications and finish options that complement your thermal management design, see our guide on powder coating vs liquid painting for metal enclosures.

7. Conclusion

Thermal management through proper ventilation design is not optional - it is a fundamental safety requirement for battery energy storage systems. From natural convection for residential units to hybrid forced-air systems for utility-scale installations, the engineering principles remain consistent: maximize heat removal, control gas flow, and prevent cascading thermal propagation.

At DINGPRECISION, our 15+ years of experience in precision sheet metal fabrication, combined with our deep understanding of battery enclosure requirements, positions us as a trusted partner for thermal management enclosure design. Our ±0.1mm laser cutting accuracy ensures ventilation features are manufactured to specification, while our integrated powder coating capability provides the corrosion protection required for outdoor installations.
