BPA-free Coating Systems Compared: Waterborne Acrylic Vs Pure Polyester Vs Fluorocarbon

BPA-free Coating Systems Compared:

Waterborne Acrylic vs Pure Polyester vs Fluorocarbon

1. Why Alternatives Are Needed

Traditional BADGE-type epoxy resin systems in sheet metal coating contain BPA residues and are banned under EU 2024/3190 for food contact applications. Manufacturers must find alternative coating systems that contain zero bisphenol substances. Three mature BPA-free alternatives currently dominate: waterborne acrylic, pure polyester powder, and fluorocarbon systems.

Before comparing these three systems, we must first address a critical industry misconception — BPF is NOT a compliant BPA replacement.

2. BPF/BPAF Myth-Busting (Critical)

Some coating suppliers offer "BPF-type epoxy resins" or "BPAF-modified resins," claiming that using BPF or BPAF to replace BPA makes the product "BPA-free." This is seriously misleading.

Facts: EU 2024/3190 explicitly bans the following substances:

• BPA (Bisphenol A) — CAS 80-05-7, CLP 1B reproductive toxicant + ED

• BPF (Bisphenol F) — CAS 620-92-8, CLP 1B reproductive toxicant + ED

• BPAF (Bisphenol AF) — CAS 1478-61-1, CLP 1B reproductive toxicant + ED

• BPS (Bisphenol S) — CAS 80-09-1, CLP 1B reproductive toxicant + ED

• All bisphenol substances classified as CLP 1A or 1B CMR or ED

Using BPF to replace BPA is like replacing one banned substance with another — the product remains non-compliant. True BPA-free products must contain zero bisphenol substances. DINGPRECISION's BPA-free solution uses waterborne acrylic systems with zero BPA/BPS/BPF/BPAF content.

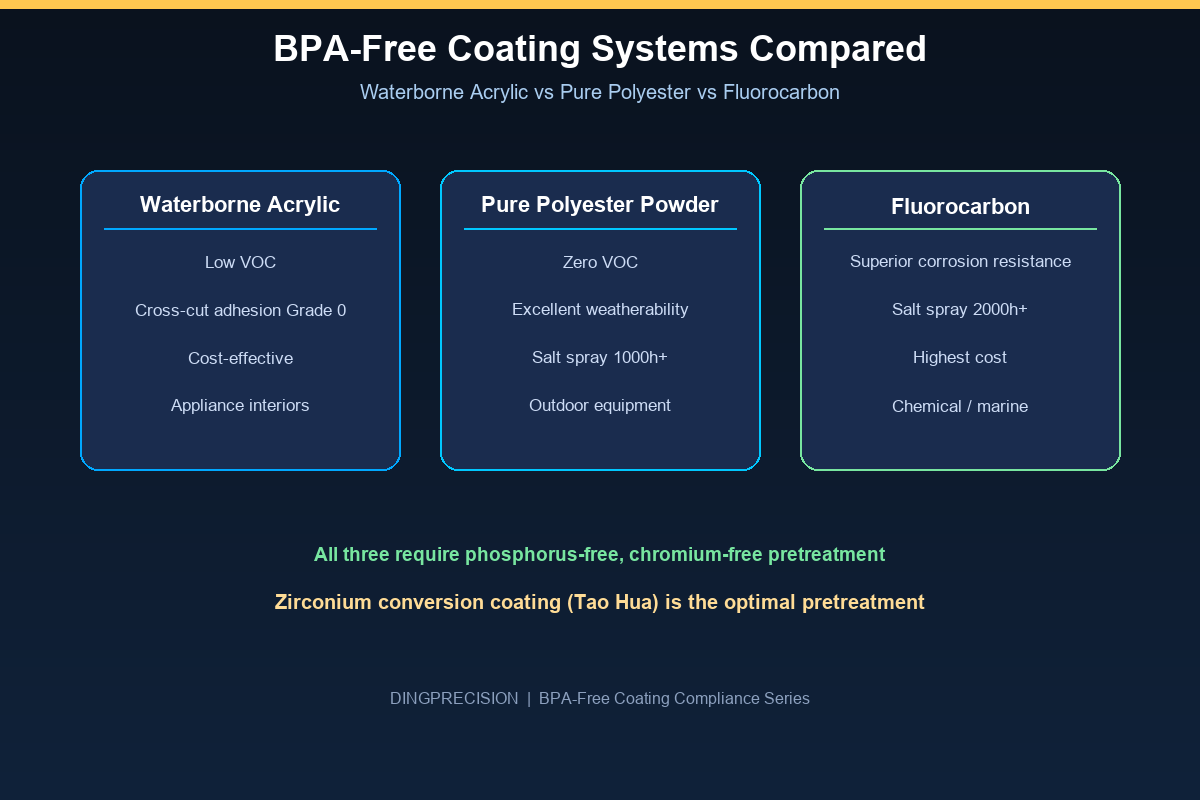

3. Performance Comparison of Three Systems

4. System-by-System Analysis

4.1 Waterborne Acrylic System

Advantages:

• Lowest cost — minimal cost difference from epoxy systems (~+15% coating cost)

• Low VOC, environmentally friendly

• Moderate cure temperature (180°C), minimal line modification

• Cross-cut adhesion Grade 0, meets food contact requirements

• Multiple coating suppliers, mature supply chain

Limitations:

• Salt spray resistance (500h) lower than polyester and fluorocarbon

• Narrow application window — sensitive to ambient temperature/humidity

• Limited temperature resistance (120°C continuous), not suitable for high-temperature applications

Best for: Air fryer inner pots, rice cooker inner pots, oven interiors, and other appliance food-contact parts.

4.2 Pure Polyester Powder System

Advantages:

• Zero VOC, most environmentally friendly

• Excellent weatherability for outdoor use

• Salt spray 1000h+, strong corrosion resistance

• High material utilization (95%+ recovery rate), minimal waste

• Temperature resistance 150°C, better than waterborne acrylic

Limitations:

• Higher cure temperature (200°C), may deform thin-wall parts

• Coating cost ~+20%, slightly higher than waterborne acrylic

• Color change requires line cleaning, best for large-batch single-color production

• Coating thickness tends high (60-80μm), not suitable for fine thin-coat applications

Best for: Outdoor lighting enclosures, appliance exteriors, outdoor equipment housings, sheet metal chassis.

4.3 Fluorocarbon System

Advantages:

• Extreme corrosion resistance, salt spray 2000h+

• Outstanding weatherability, 20+ year outdoor service life

• Temperature resistance 200°C, suitable for high-temperature applications

• High coating hardness (2H-3H), scratch-resistant

Limitations:

• Highest cost (~2.5x waterborne acrylic)

• High cure temperature (230°C)

• Fewer coating suppliers, less mature supply chain

• Performance overkill for most appliance applications

Best for: Chemical equipment, marine equipment, premium outdoor applications.

5. Selection Guide

FAQ

Q1: Can BPF replace BPA?

A: No. BPF (Bisphenol F) is classified as a CLP Category 1B reproductive toxicant and endocrine disruptor under EU 2024/3190 and is explicitly included in the ban. Using BPF to replace BPA and claiming "BPA-free" is non-compliant. Correct BPA-free alternatives must contain zero bisphenol substances — waterborne acrylic, pure polyester, and fluorocarbon systems all qualify.

Q2: Which system offers the best value?

A: For appliance interiors (food contact), waterborne acrylic offers the best value — ~7% cost increase, adhesion Grade 0, 500h salt spray (sufficient for indoor appliance use). For outdoor equipment exteriors, pure polyester powder offers the best value — zero VOC and excellent weatherability. Fluorocarbon is only worth the investment in extreme corrosion environments (chemical/marine).

Q3: Is 500h salt spray enough for waterborne acrylic?

A: For indoor appliance food-contact parts, 500h salt spray is more than sufficient. These parts are not exposed to outdoor salt spray environments — actual in-use corrosion risk is far below the severity of a 500h salt spray test. For outdoor equipment, we recommend pure polyester powder (1000h+).

Q4: What line modifications are needed to switch from epoxy to waterborne acrylic?

A: Three main changes: (1) Pretreatment: zinc phosphating → zirconium conversion; (2) Spray parameters: waterborne coatings have lower viscosity than solvent-based, requiring adjusted material flow and atomization pressure; (3) Cure curve: waterborne acrylic 180°C/20min vs epoxy 200°C/15min. DINGPRECISION completed this transition in 30 days for an air fryer project.

Q5: Can pure polyester powder and waterborne acrylic be mixed?

A: Not recommended. Different systems may have inter-coating adhesion issues at the interface. If a primer + topcoat dual-layer system is needed, use the same system for both (e.g., waterborne acrylic primer + waterborne acrylic topcoat), or use a cross-system combination validated by the coating supplier.

About DINGPRECISION: DINGPRECISION's BPA-free coating solution uses waterborne acrylic systems, containing zero BPA/BPS/BPF/BPAF or any bisphenol substances. Combined with zirconium pretreatment and two-spray two-bake process, it has been validated in mass production for air fryer inner pots. For BPA-free alternative system evaluation, contact DINGPRECISION.
