Part 1 of this series established the source-and-process defense line for keeping bisphenol A (BPA) out of liquid spray-coated products. This second article completes the picture from the verification and audit side: the final two defense lines (environment and packaging), the segmented controlled-trial methodology that turns attribution from guesswork into measurement, and the five-gate audit framework that purchasing engineers can apply directly to spray-coating suppliers.
Under the 1 μg/kg (1 ppb) detection-limit regime of Regulation (EU) 2024/3190 — and with the EU implementing guidance C/2025/6721 explicitly advising against routine testing in favor of process control — the compliance strategy must shift from "post-hoc detection" to "source admission + process anti-contamination + documented proof." This article delivers the documented-proof layer.
Key conclusions:
Environment and packaging are real but controllable channels: workshop dust carries ng/g-level BPA; regenerated paper/newspaper inks, BPA-containing ink labels and epoxy-coated tinplate liners are all known packaging pathways. Positive-pressure spray booths with HEPA filtration and bisphenol-declared packaging close these channels.
Ambient-air contamination of products is the most over-worried concern: magnitude, regulatory and methodological arguments all show it is not a compliance threat — the EU itself cites environmental background as a reason not to do routine testing, and accredited labs wipe product surfaces with alcohol before extraction, naturally separating surface deposition from bulk migration.
Segmented controlled trials make attribution measurable: three single-variable comparison groups (pre/post painting, new vs. existing packaging, alcohol-wipe re-test) decouple the painting, packaging and surface/bulk dimensions, locating any out-of-spec batch to a specific stage within 48–72 hours.
Five auditable gates: coating source, incoming oil, pretreatment, air supply, and environment/packaging — each with a defined audit object, pass criterion and evidence grade.
Keywords: bisphenol A; (EU) 2024/3190; liquid spray coating; compliance verification; segmented controlled trial; packaging migration; supplier audit; process control
Workshop dust commonly contains ng/g-level BPA (well documented in environmental monitoring literature). Before surface dry, the paint film is a "chemically open surface" onto which dust settles and embeds directly. The EU implementing guidance C/2025/6721 officially acknowledges that "BPA contamination sources other than packaging (environment, laboratory glassware) may cause false positives" — official endorsement of the environmental concern, and proof that the environmental channel is real but controllable in magnitude.
Controls: positive-pressure spray booth (+5–15 Pa) + three-stage filtered intake air + final-stage HEPA; no parallel epoxy operations in the surface-dry zone; quarterly dust-fall plate testing; independent exhaust for the curing oven to prevent volatile re-mixing.
The packaging contamination channel is real: regenerated paper/newspaper inks contain epoxy curing agents, BPA-containing ink labels and epoxy-coated tinplate liners are all known pathways (FMEA #14). Our dual control:
Source: packaging suppliers provide bisphenol declarations; newspaper/regenerated paper direct wrapping is banned; pure cotton cloth (natural fiber) or uncoated packaging materials are preferred.
Controlled verification: see the segmented trials in §2.
This is the most common over-worry in procurement communication. Three-layer argument:
Magnitude argument: ambient-air BPA background is trace-level. If air BPA were concentrated enough to contaminate products to detectable levels, worker health would already be impaired — workshop occupational hygiene data (routine VOC and particulate monitoring) directly disproves this.
Regulatory argument: EU C/2025/6721 explicitly advises against routine analytical testing of banned bisphenols, partly because environmental background can cause false positives — the EU itself does not regard environmental background as a compliance threat.
Methodological argument: accredited testing bodies first wipe the product surface with alcohol (removing surface deposits) before extraction and melt determination — surface deposition and bulk migration are naturally separated methodologically. Our measured result: no exceedance after alcohol wipe → related to packaging/surface deposition; still exceeding → coating bulk problem.
The final answer to GPA Global's inquiries is not a promise but a reproducible chain of experimental evidence. Our Technical Center uses a single-variable segmented controlled design:
Trial | Design | Decoupled dimension | Judgment logic |
|---|---|---|---|
Trial 1 | Ceramic-conversion dried, no painting, submitted for testing vs. painted, submitted for testing | Before/after painting | Exceedance before painting → pretreatment or incoming-material problem; exceedance only after painting → paint problem |
Trial 2 | Painted parts wrapped in new regenerated paper vs. existing packaging stored 5 days, both submitted | Packaging/paint | Exceedance after storage but not with new packaging → packaging migration channel confirmed |
Trial 3 | Existing out-of-spec parts wiped clean with alcohol and re-tested | Surface/bulk | No exceedance after wipe → packaging/surface deposition related; still exceeding → coating bulk problem |
This design turns attribution from "guessing" into "measuring": any abnormal batch can be located to a specific stage within 48–72 hours, triggering the corresponding corrective action. Combined with routine monitoring, it forms a complete evidence chain:
Coating incoming: 10-bisphenol content test (LC-MS/MS, LOD ≤ 1 μg/kg)
Degreasing: water-break test every 2 h + daily free-alkali titration
Bath: monthly oil-content + quarterly BPA monitoring on FCM lines
Curing: per-oven temperature profile (PMT) records + retained samples (kept ≥ shelf life + 1 year)
Finished goods: batch bisphenol archive — coating CoA → bath records → spray parameters → curing profile → retained-sample report → DoC, fully traceable end to end

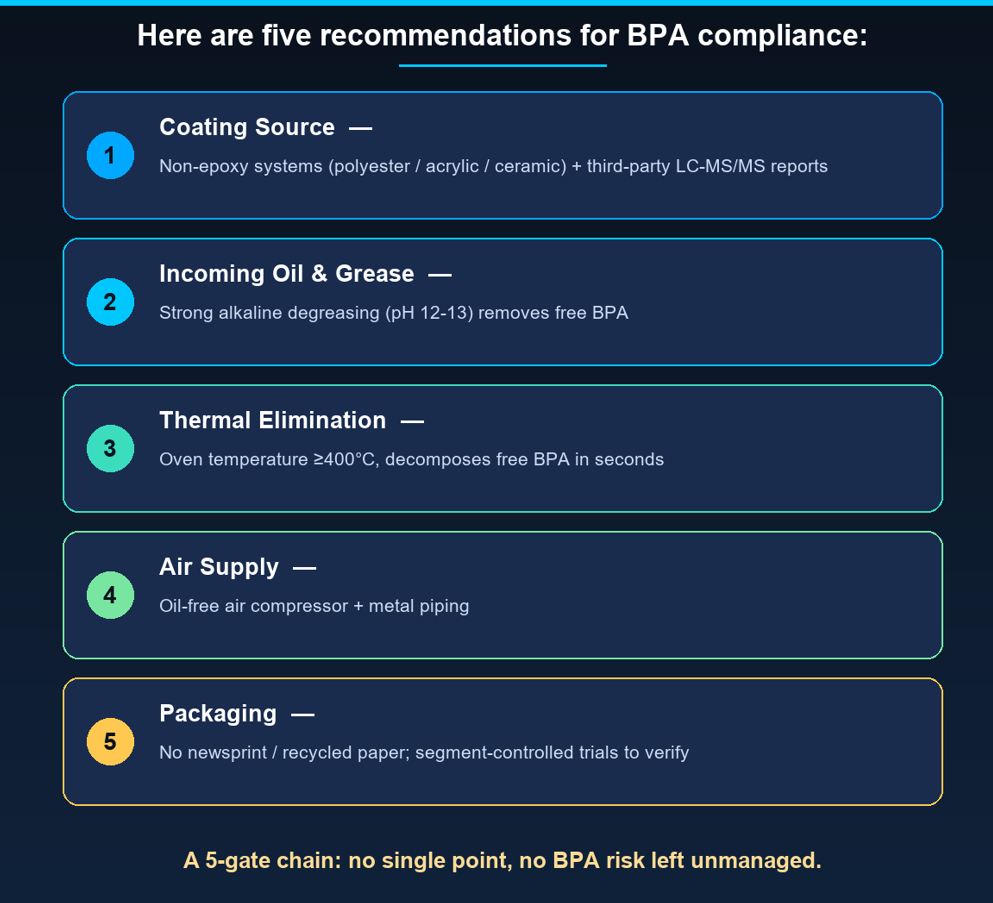

From a technical and process standpoint, the market's various concerns about BPA compliance in liquid spray coating reduce to five controllable gates. Purchasing engineers can audit spray suppliers directly against them:
Gate | Audit object | Pass criterion | Evidence grade |
|---|---|---|---|
1. Coating source | Coating supplier documents | Four-bisphenol declaration + LC-MS/MS report (LOD ≤ 1 ppb) + DoC full-substance declaration; non-bisphenol systems (polyester/acrylic/PU/fluorocarbon/ceramic oil) on FCM lines | A |
2. Incoming materials & oils | Steel mill / stamping plant endorsement | Anti-rust/drawing oil MSDS + no-epoxy-additive clause + incoming spot checks; dedicated oil management | A/B |
3. Pretreatment | Degreasing process documents | Strong-alkali degreasing (pH 12–13) + water-break test records; NPEO degreasers banned; pickling/phosphating needs no defense (zero synthesis probability, grade A) | A |
4. Air supply & piping | Compressor system on site | ISO 8573-1 1:2:0 or Class 1 + activated carbon; galvanized/stainless steel piping (eliminate PVC and other plastic lines); monthly oil-content spot check | A/B |
5. Environment & packaging | Spray booth and packaging specifications | Positive-pressure booth + HEPA; packaging supplier bisphenol declaration; newspaper wrapping banned; segmented controlled-trial records available | A/B |
Overall conclusion: controlling the paint source and the five gates above achieves stable compliance in the 1 ppb era of (EU) 2024/3190. The technical points to emphasize: ① the higher the drying/curing oven temperature, the faster BPA decomposes, with 400°C optimal — combined with source control it forms a double safeguard; ② strong-alkali degreasing is effective but not a universal barrier; ③ ambient-air background is not to be feared — laboratory false positives deserve more attention. The essence of compliance is not "whether it is detected" but "proving throughout the process that it cannot get in" — this is the engineering realization of Dingyi Industrial's anti-contamination control philosophy.
Regulation (EU) 2024/3190 (amending (EU) 2018/213; FCM bisphenol ban); implementing guidance Commission Notice C/2025/6721
EFSA (2023). Re-evaluation of bisphenol A: TDI lowered to 0.2 ng/kg bw/day; immune system toxicity endpoint
Food Research International (2017): Factors affecting migration kinetics from a generic epoxy-phenolic food can coating system (BADGE migration activation energy 250–264 kJ/mol)
Wilczewska et al., Anal Bioanal Chem (2016) (LC-MS/MS trace BPA background contamination: mobile-phase enrichment effect)
Salgueiro-González et al., Talanta (2012) (blank contamination source inventory)
RASFF Notification 2026.2043 (France, 2026-03-11; canned goods BPA migration 33.4 μg/L)
Regulation (EU) 2017/625 (official controls regulation); Regulation (EU) 2019/1793 (intensified checks)
Consumer Reports: Ceramic cookware PFAS screening (96 compounds, zero detection)
ISO 8573-1 compressed air purity classes
GB 4806.15-2024 (adhesives for food contact materials); GB/T 13312 water-break test
Foshan Dingyi Industrial Co., Ltd. Technical Center: segmented controlled-trial records (Trials 1–3); "Bisphenol Substances Conformity Commitment Letter"
