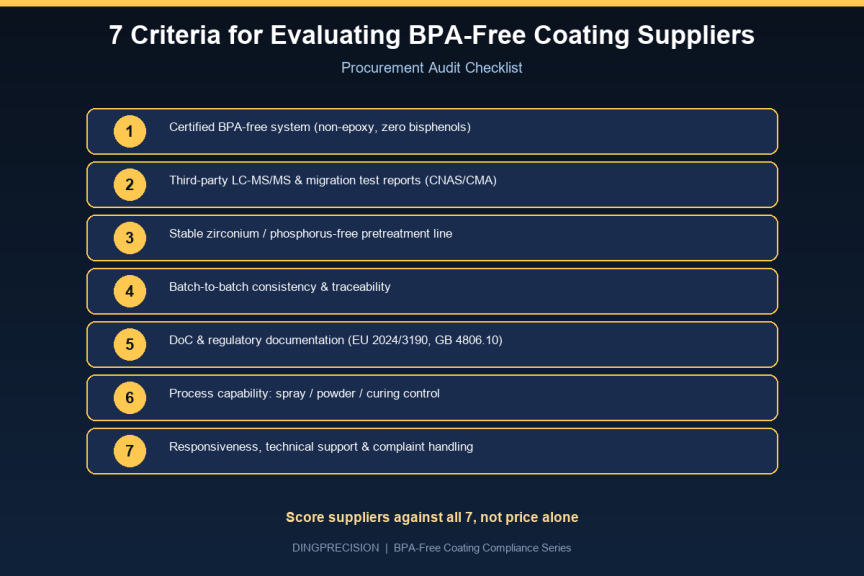

7 Criteria for Evaluating BPA-free Coating Suppliers — A Procurement Audit Checklist Platforms: Website + LinkedIn + ThomasNet ~3,000 words Keywords: BPA-free supplier evaluation, audit checklist, coating supplier qualification > Key takeaway: Evaluating a BPA-free coating supplier requires verifying 7 dimensions: (1) compliance documents (DoC + CNAS report), (2) coating supplier BPA-free declaration, (3) pretreatment process (zirconium/phosphorus-free), (4) spray process (two-spray two-bake with traceable parameters), (5) testing capability (CNAS/CMA reports), (6) batch consistency (IQC→OQC traceability), and (7) capacity & lead time. This article provides check items, pass criteria, and verification methods for each dimension.
Traditional supplier audits focus on capacity, quality systems, and lead times. But in the BPA-free coating context, specialized compliance verification dimensions must be added. Reasons: 1. “BPF-replacing-BPA” pseudo-BPA-free suppliers exist — replacing one banned substance with another 2. Some suppliers have coating declarations but no finished-product CNAS test reports — non-compliant with regulations 3. Pretreatment may contain phosphorus/chromium — not directly BPA-related but affects environmental compliance 4. Lack of batch traceability — no traceability code means no proof of per-batch compliance
Dimension | Check Items | Pass Criteria | Verification Method | Weight |
1. Compliance Docs | DoC + CNAS migration test report | Report includes BPA test, LoD ≤1 μg/kg, “Not Detected” | Check original report; verify CNAS number online | 20% |
2. Coating Declaration | Coating supplier BPA-free declaration + MSDS | Declares no BPA/BPS/BPF/BPAF or CLP 1A/1B bisphenols | Request MSDS and declaration original | 15% |
3. Pretreatment | Zirconium or phosphorus-free | No P, no Cr; film weight 50–80 mg/m²; adhesion Grade 0 | On-site line visit; check film weight records | 15% |
4. Spray Process | Two-spray two-bake, traceable parameters | Dual-layer (primer+topcoat); SOP with cure parameters, traceable | Review SOP; check production records | 15% |
5. Testing Capability | CNAS/CMA reports + batch testing | Each batch ships with migration test summary or consistency declaration | Check 3–5 recent batch reports | 15% |
6. Batch Consistency | IQC→IPQC→OQC full traceability | Each batch has traceability code (coating batch/pretreatment batch/operator) | Check traceability system; random sample 3 batches | 10% |
7. Capacity & Lead Time | Monthly capacity + lead time commitment | Capacity ≥5,000 pcs; lead time ≤15 days; expedited ≤10 days | Check production schedule; verify past 3 months | 10% |
Required documents: 1. DoC (Declaration of Compliance) — Check for: manufacturer name/address, product identification, applicable regulation (EU 2024/3190 and/or GB 4806.10-2025), coating system description, test report number, usage condition restrictions, signatures/stamps. 2. CNAS/CMA migration test report — Check: (1) CNAS/CMA number verifiable on official website; (2) sample description says “finished product” (not “coating liquid”); (3) method cites EN 13130 or GB 31604.5; (4) LoD ≤1 μg/kg; (5) result is “Not Detected”; (6) has signatures and stamps. Common non-conformities: LoD is 0.1 mg/kg (fails EU requirement); sample is coating liquid not finished product; only CMA without CNAS (not accepted for export); report over 2 years old.
Required documents: 1. Coating supplier’s BPA-free declaration — must state “This coating does not contain BPA, BPS, BPF, BPAF, or any CLP 1A/1B bisphenol substance.” 2. Coating MSDS — check the composition table for any bisphenol substances. 3. Coating supplier qualification — confirm the supplier has food-contact coating qualifications (not just general industrial coatings). Critical warning: If the declaration only says “BPA-free” without explicitly excluding BPF/BPAF, the supplier may be using BPF. Require explicit statement: “No BPA/BPS/BPF/BPAF.”
On-site checks: 1. Is the pretreatment zirconium or phosphating? — Zirconium = pass; phosphating = fail (phosphorus waste + possible chromium sealing). 2. Film weight test — ask operator to test with XRF gauge on the spot; should be 50–80 mg/m². 3. Degreasing — is degreasing temperature ≥60°C? (Waterborne coatings require higher substrate cleanliness.) 4. Waste treatment — zirconium waste should be phosphorus-free, chromium-free, simple to treat.
Document checks: 1. SOP — Is there a two-spray two-bake SOP with clear parameters (gun voltage/pressure/material flow/distance/cure temperature/time)? 2. Production records — Random sample 3 batches; are parameters consistent with SOP? 3. Equipment calibration — Are spray guns and tunnel ovens calibrated regularly? 4. Film thickness — Total coating (primer + topcoat) should be 45–55 μm with measurement records.
Check points: 1. Does the supplier have a long-term partnership with a CNAS/CMA lab? (Report lab name and number should be consistent.) 2. Does each shipment include a test summary or consistency declaration? (Regulations don’t require per-batch full testing, but batch consistency proof is needed.) 3. Is there an annual full-panel test report? (At least 1/year, covering BPA/BPS/BPF/BPAF.) 4. Are food simulants correctly selected? (Oily foods → olive oil/isooctane; aqueous → 3% acetic acid.)
Traceability system check: 1. Does each batch have a traceability code? — Scan to check: coating batch number, pretreatment batch, spray operator, oven temperature curve, test report number. 2. IQC (Incoming Quality Control) — Are BPA-free declarations verified at coating receipt? 3. IPQC (In-Process Quality Control) — Are film thickness and adhesion sampled during spraying? 4. OQC (Outgoing Quality Control) — Is there 100% visual inspection + adhesion sampling + BPA consistency confirmation before shipment?
Check method: 1. Monthly capacity — Is BPA-free coating capacity ≥5,000 pcs (product-type adjusted)? 2. Lead time — Is standard order lead time ≤15 days; expedited ≤10 days? 3. Capacity flexibility — Can urgent additions deliver in 7 days? 4. Past performance — Verify actual lead times for past 3 months. 5. Full-process capability — Does the supplier have cutting/bending/welding/coating in-house? (No outsourcing = more stable quality control.)
Total Score | Rating | Recommendation |
≥85 | A (Pass) | Approved; annual re-audit recommended |
70–84 | B (Conditional Pass) | Approved with corrective action plan; re-audit in 6 months |
60–69 | C (Fail) | Not recommended unless corrective actions implemented |
<60 | D (Fail) | Do not engage |
FAQ Q1: What must a DoC contain? A: 8 elements: (1) manufacturer name and address; (2) product identification (name/model); (3) applicable regulation (EU 2024/3190 and/or GB 4806.10-2025); (4) coating system description; (5) pretreatment process; (6) test report number and lab name; (7) usage condition restrictions; (8) responsible person signature, date, company seal. Q2: How to verify CNAS report authenticity? A: Three steps: (1) search the lab’s CNAS number on cnas.org.cn; (2) call the lab to verify the report number; (3) check that the CNAS logo is a red stamp, not a color print. Forged reports exist — always verify. Q3: Can a supplier without zirconium line be used? A: Not recommended. If the supplier uses phosphating but claims BPA-free coating, while phosphating doesn’t directly relate to BPA, it produces phosphorus waste and may include chromium sealing — environmental compliance risk. If all other dimensions pass and no alternative exists, require them to add zirconium pretreatment before engagement. Q4: How to verify BPA-free claims? A: Don’t just look at the declaration. Must: (1) request coating supplier MSDS, check composition for bisphenols; (2) require explicit “no BPA/BPS/BPF/BPAF” (not just “BPA-free”); (3) check finished-product CNAS report for BPA/BPS/BPF results all “Not Detected.” Q5: How to validate during small-batch trial? A: (1) Request 5–10 samples; (2) submit to your own CNAS lab for BPA migration testing (don’t rely solely on supplier’s report); (3) perform cross-cut adhesion + salt spray testing; (4) verify pretreatment (visit factory or request line photos + film weight records). About DINGPRECISION: DINGPRECISION meets all 7 audit dimensions. With zirconium pretreatment line, two-spray two-bake coating line, CNAS/CMA test reports, DoC template, and full-process traceability (cutting → bending → welding → coating, no outsourcing). For audit checklist PDF or on-site audit arrangements, contact DINGPRECISION.
