The global lifting systems market is expanding rapidly. Electric height-adjustable desks alone represent a 21.4billionglobalmarketin2026∗∗(growingat14.221.4billionglobalmarketin2026∗∗(growingat14.24.87 billion globally.
Yet across all three sectors, manufacturers face a common bottleneck: inconsistent sheet metal component quality from outsourced supply chains.
When welding, coating, or bending is subcontracted to different vendors, tolerance stacks accumulate, lead times extend, and quality accountability fractures. The result: lifting columns that wobble after 6 months, pipe supports that corrode in coastal environments, and medical bed frames that fail load tests.
This is why leading OEMs are shifting toward single-site, in-house fabrication partners — manufacturers who complete laser cutting, CNC bending, robotic welding, and powder coating under one roof.
A standard height-adjustable desk requires 8-12 sheet metal parts per unit:
Component | Material | Typical Thickness | Key Tolerance |
|---|---|---|---|
Foot plate (base) | SPCC cold-rolled steel | 2.0-3.0mm | Flatness ≤0.3mm/m |
Crossbeam connector | SPCC | 1.5-2.0mm | Bend angle ±0.5° |
Motor mounting plate | SPCC | 2.0mm | Hole position ±0.1mm |
Control box housing | SPCC/SECC | 1.0-1.5mm | Surface finish Ra≤1.6μm |
Column outer sleeve | SPCC | 1.5mm | Coaxiality ≤0.1mm |
Critical insight: The coating layer determines product lifespan. Industry-standard powder coating at 50μm thickness typically fails after 2-3 years of friction. Premium coating at ≥80μm with 1000-hour salt spray resistance extends functional life beyond 5 years — a 2.5x improvement that directly reduces warranty claims.
Industrial pipe supports serve petrochemical, power generation, and HVAC applications. Key components include:
Adjustable pipe shoes (sliding/fixed/limit types): Q235B carbon steel, 50-200mm adjustment range
Spring hangers: Constant/variable force, M20-M36 threaded rods
Insulated supports: Thermal isolation for high-temperature piping
The manufacturing process — blanking → bending → welding → powder coating — maps directly to standard sheet metal fabrication capabilities. Pricing typically references regional Q235B carbon steel plate indices, with per-ton finished prices ranging from 8,000-15,000 CNY including processing and coating.
Electric nursing beds and patient lifting devices require carbon steel frames with electrostatic powder coating. A single nursing bed contains 300-800 CNY worth of sheet metal components, including bed frames, lifting mechanism brackets, and base supports. The coating must withstand frequent hospital-grade disinfection without degradation — making salt spray performance non-negotiable.
Many manufacturers claim "in-house" capabilities but outsource one or more critical processes. True in-house fabrication means every process occurs on the same factory floor, enabling:
Tolerance control: No tolerance stack-up from multi-vendor handoffs
Quality traceability: Single-point accountability from raw material to finished part
Rapid iteration: Design changes implemented in hours, not weeks
Consistent coating quality: Pre-treatment and powder application controlled as one continuous process
Located in Foshan, Guangdong, China — the heart of the Greater Bay Area manufacturing corridor — DINGPRECISION operates a 15,000m² facility with complete in-house capabilities:
Capability | Equipment | Specification |
|---|---|---|
Laser cutting | 15 fiber laser cutters | 6000W, precision ±0.1mm |
CNC bending | 20 press brakes | Max length 8.4m, angle ±0.5° |

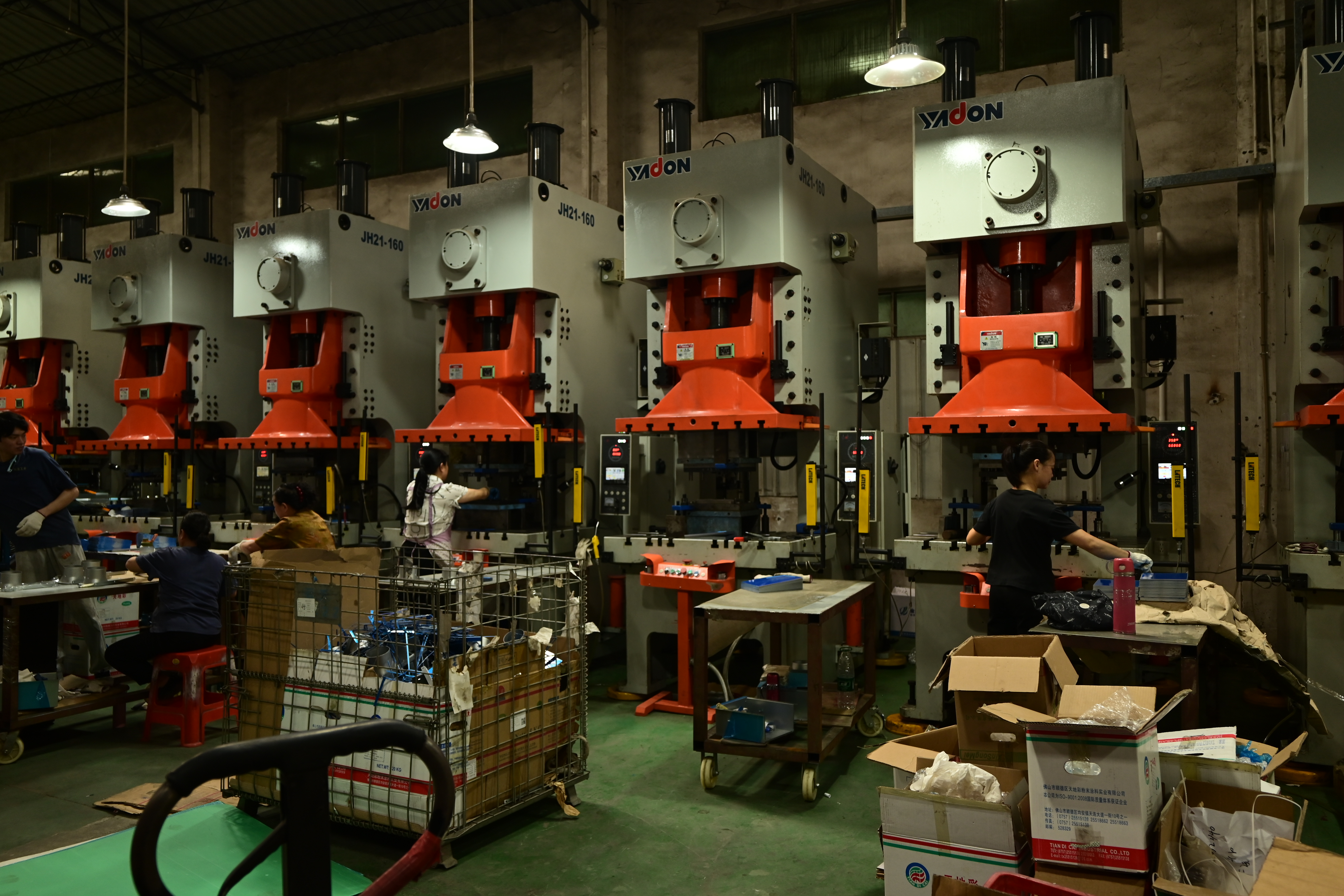

Stamping | 50 punch presses | Up to 500T capacity |
Robotic welding | 4 robot welding stations | MAG/laser welding |
Powder coating | 3 powder + 1 liquid lines | Salt spray 1000h, ΔE≤1.0 |
Quality inspection | CMM + salt spray chamber | 100% critical dimension check |
Industry benchmark: The average sheet metal factory in this sector operates 2-5 laser cutters and 1-2 coating lines. DINGPRECISION's equipment density places it in the top 15% of the global lifting systems sheet metal supply chain (L3 tier, upper segment).
Powder coating quality is the single most visible differentiator in sheet metal components for lifting systems. Here is why:
Metric | Industry Average | DINGPRECISION | Impact |
|---|---|---|---|
Salt spray resistance | 500 hours | 1000 hours | 2x corrosion protection |
Color difference (ΔE) | ≤2.0 | ≤1.0 | Consistent appearance across batches |
Coating thickness | 50-60μm | 80-120μm | 1.5-2x wear resistance |
Pre-treatment | Degreasing only | Degreasing + ceramic conversion | Superior adhesion |
For lifting desk manufacturers, this means columns that maintain smooth operation through 50,000+升降 cycles without coating degradation. For pipe support buyers in coastal or high-humidity environments, it means supports that survive decade-long service life without structural corrosion.
Tier | Role | Examples | DINGPRECISION Position |
|---|---|---|---|
L1 | Brand owners | Steelcase, Herman Miller, IKEA, FlexiSpot | — |
L2 | System integrators (motor + controller + column) | Jiechang, Kaidi, LINAK, TiMOTION | — |
L3 | Full-chain sheet metal manufacturers | AOKE, Fumei, Mindway, DINGPRECISION | Here — upper segment |
L4 | Specialized profile producers (cold-drawn tubes/extrusions) | Huagang Intelligent | — (DINGPRECISION deep-processes purchased profiles into finished inner/outer tubes) |
L5 | General sheet metal shops | Various | — |
At the L3 tier, DINGPRECISION serves as a full-chain sheet metal component supplier to system integrators and OEM assemblers. The company does not produce raw profiles (cold-drawn tubes or extrusions) — these are sourced from specialized profile bases. However, DINGPRECISION performs deep processing on purchased profiles — cutting, hole-making, deburring, and powder coating — to deliver finished inner/outer tubes (column sleeves) for lifting desks. In addition, the company manufactures complementary sheet metal parts: foot plates, crossbeams, motor mounts, housings, and structural brackets, offering a one-stop solution for lifting desk sheet metal components.
DINGPRECISION's quality systems are validated by industry-leading clients:
Midea Group — Global appliance manufacturer (volume production)
Huawei — Qualified supplier
Southern Power Grid — Qualified supplier
KUKA — Industrial robotics
These relationships require rigorous quality audits and demonstrate capability across diverse industry standards.
Do you perform all processes in-house? Request a facility walk-through video. Verify that laser cutting, bending, welding, and coating equipment are co-located.
What is your salt spray test duration? The industry standard is 500 hours. Anything below this indicates consumer-grade coating. 1000+ hours indicates industrial-grade protection suitable for demanding environments.
Can you provide ΔE color consistency data? Request batch-to-batch color measurement records. ΔE≤2.0 is acceptable for hidden structural parts; ΔE≤1.0 is required for visible aesthetic surfaces.
What is your laser cutting tolerance? Standard sheet metal shops achieve ±0.2mm. Precision fabricators achieve ±0.1mm — critical for hole alignment in multi-part assemblies.
Do you have robotic welding? Manual welding introduces variability in weld penetration and heat-affected zones. Robotic welding (MAG or laser) ensures consistent joint strength meeting AWS D1.1 standards (≥400MPa).
DINGPRECISION specializes in carbon steel sheet metal: SPCC (cold-rolled steel), SGCC (hot-dip galvanized steel), and SECC (electro-galvanized steel). These materials cover 80%+ of lifting system component requirements. The company does not process stainless steel as a primary material.
MOQ depends on component complexity. For standard parts (foot plates, brackets), MOQ starts at 500 pieces. For custom designs requiring tooling, MOQ is typically 2,000-5,000 pieces. Prototype samples are available for qualification testing.
For in-house fabrication: 7-15 days for standard orders (3,000-10,000 pieces), 15-25 days for new product development including tooling. The single-site model eliminates inter-vendor transit delays.
Yes. With 20 CNC press brakes (maximum bending length 8.4 meters) and 15 laser cutters (6000W capacity), DINGPRECISION can process large-format panels and structural components beyond the capability of typical sheet metal shops.
ISO 9001:2015 Quality Management
ISO 14001:2015 Environmental Management
ISO 45001:2018 Occupational Health & Safety
China National High-Tech Enterprise certification
Powder coating is strongly preferred for lifting system components due to: (1) zero VOC emissions, (2) thicker coating per application (60-120μm vs 20-40μm for liquid), (3) superior edge coverage, and (4) chemical resistance. DINGPRECISION operates both powder and liquid coating lines, selecting the optimal process per application.
