Views: 0 Author: Site Editor Publish Time: 2026-06-22 Origin: Site
Sheet Metal & Coating Case Studies | DINGPRECISION
元描述：Real manufacturing projects with verified quality metrics. See how DINGPRECISION helped global brands reduce defect rates, improve lead times, and achieve certification targets.
页面引言：
"Real Projects. Verified Results. Every case study below represents a production project where we tracked and measured key performance metrics — defect rate, on-time delivery, coating quality, and customer satisfaction. We don’t just claim quality. We prove it with data from every project we ship. Client names have been anonymized per confidentiality agreements, but the numbers are real, the processes are documented, and the results are independently verifiable."
撰写：拓传 | 字数：500-600词 | 状态：已匿名化处理

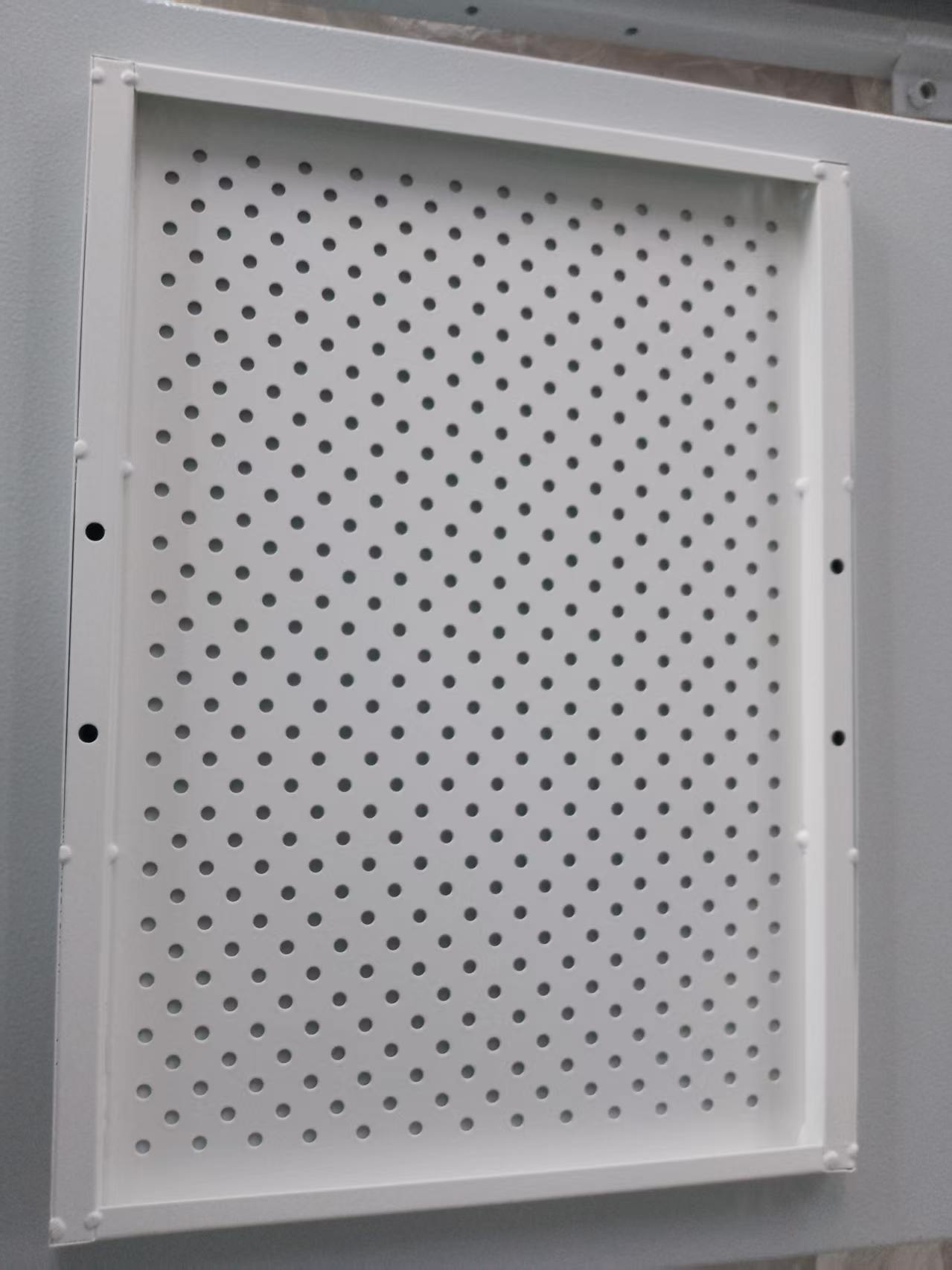

A Fortune 500 appliance manufacturer was experiencing persistent quality issues with their microwave oven shell supplier. The core problem: powder coating defect rate of 3% at an annual volume exceeding 1 million units — translating to approximately 30,000 rejected parts per year. Beyond the direct scrap cost, the defect rate was causing assembly line stoppages at the customer’s plant, triggering penalty clauses in the supply agreement. Color consistency was another pain point, with visible batch-to-batch variation causing customer complaints on retail floors.
DINGPRECISION took over the full production in 2022 with a dedicated manufacturing cell. The approach had three pillars. First, process isolation: a dedicated powder coating line was allocated to this project with a Kanban pull system, eliminating changeover contamination and queue delays. Second, in-line quality control: spectrophotometer color checks every 2 hours with ΔE ≤ 1.0 acceptance criteria, replacing the previous supplier’s once-per-shift visual inspection. Third, pretreatment upgrade: switched from iron phosphate to zirconium passivation chemistry, providing superior adhesion on the complex curved surfaces of the microwave shell.
· Defect rate reduced from 3.0% to 0.2% — a 15× improvement, saving approximately 28,000 parts per year from rejection
· Color consistency: ΔE ≤ 1.0 verified across 100% of production batches, eliminating retail-floor color complaints
· Annual volume: 1,000,000+ units delivered with zero late deliveries over 3 consecutive years
· Customer audit score improved from 82/100 to 96/100 within 6 months of transition
撰写：拓传 | 字数：500-600词 | 状态：已匿名化处理
A fast-growing energy storage system manufacturer was scaling from pilot production to 3,000 units per month and needed a sheet metal partner who could deliver consistent IP54-rated battery enclosures at this volume. Their existing supplier could not maintain the IP rating at scale — approximately 8% of enclosures were failing the production-line water spray test, requiring rework that was disrupting the customer’s assembly schedule. The enclosure specification demanded 1,000-hour salt spray resistance per ASTM B117 for outdoor deployment in coastal environments.
We redesigned the enclosure sealing system based on DFM analysis of the failure modes. Key changes: (1) Converted stitch-welded corner seams to continuous TIG welds on all external joints — the stitch welds were leaving microscopic gaps that passed dimensional inspection but failed water spray. (2) Upgraded gasket material from open-cell foam to closed-cell EPDM with a compression set <25%, ensuring seal integrity over the product’s 15-year design life. (3) Implemented 100% production-line water spray testing (not batch sampling) using a calibrated spray apparatus per IEC 60529 IPX4. (4) Extended powder coating cure time by 8 minutes to ensure full cross-linking at weld joints, where metal thickness variation was causing under-cure.
· IP54 water spray test pass rate improved from 92% to 99.7% at full production volume of 3,000 units/month
· Salt spray resistance: 1,200 hours to first red rust (exceeding the 1,000-hour specification by 20%)
· Gasket compression set after accelerated aging: 18% (specification: <25%)
· Customer expanded order volume by 40% within 6 months, making DINGPRECISION their primary enclosure supplier
撰写：拓传 | 字数：500-600词 | 状态：已匿名化处理
An EV charging infrastructure company was deploying outdoor charging stations across Southeast Asia — a combination of high humidity, coastal salt spray, and intense UV exposure that was causing their existing enclosures to show visible corrosion within 18 months of installation. The failures were damaging the company’s brand reputation with site operators and triggering costly field replacement programs. The requirement: IP55 protection with zero visible corrosion after 5 years of tropical outdoor exposure.
Our approach combined materials engineering with process control. Material selection: upgraded from standard cold-rolled steel to pre-galvanized steel substrate (Z275 coating) as the base metal, providing a sacrificial zinc layer as backup corrosion protection beneath the powder coating. Coating system: two-coat system — zinc-rich epoxy primer (60-80μm) for cathodic protection at edges and welds, followed by weather-resistant polyester powder topcoat (80-100μm) in RAL 7035 light grey for low solar absorptance. Testing protocol: in addition to standard salt spray (ASTM B117), we added cyclic corrosion testing (ISO 12944-6 C5-M) — 72 hours UV exposure + 72 hours salt spray + 24 hours condensation, repeated for 20 cycles — to simulate tropical conditions more accurately than continuous salt spray alone.
· Cyclic corrosion test: 20 cycles completed with zero red rust and zero blistering (rating Ri 0 per ISO 4628-3)
· Field performance: 5-year audit of 200 installed enclosures in Thailand and Vietnam — zero corrosion-related service calls
· Customer reported 60% reduction in field maintenance costs compared to previous enclosure supplier
· Qualified as sole-source enclosure supplier for the company’s next-generation 350kW ultra-fast charger product line
