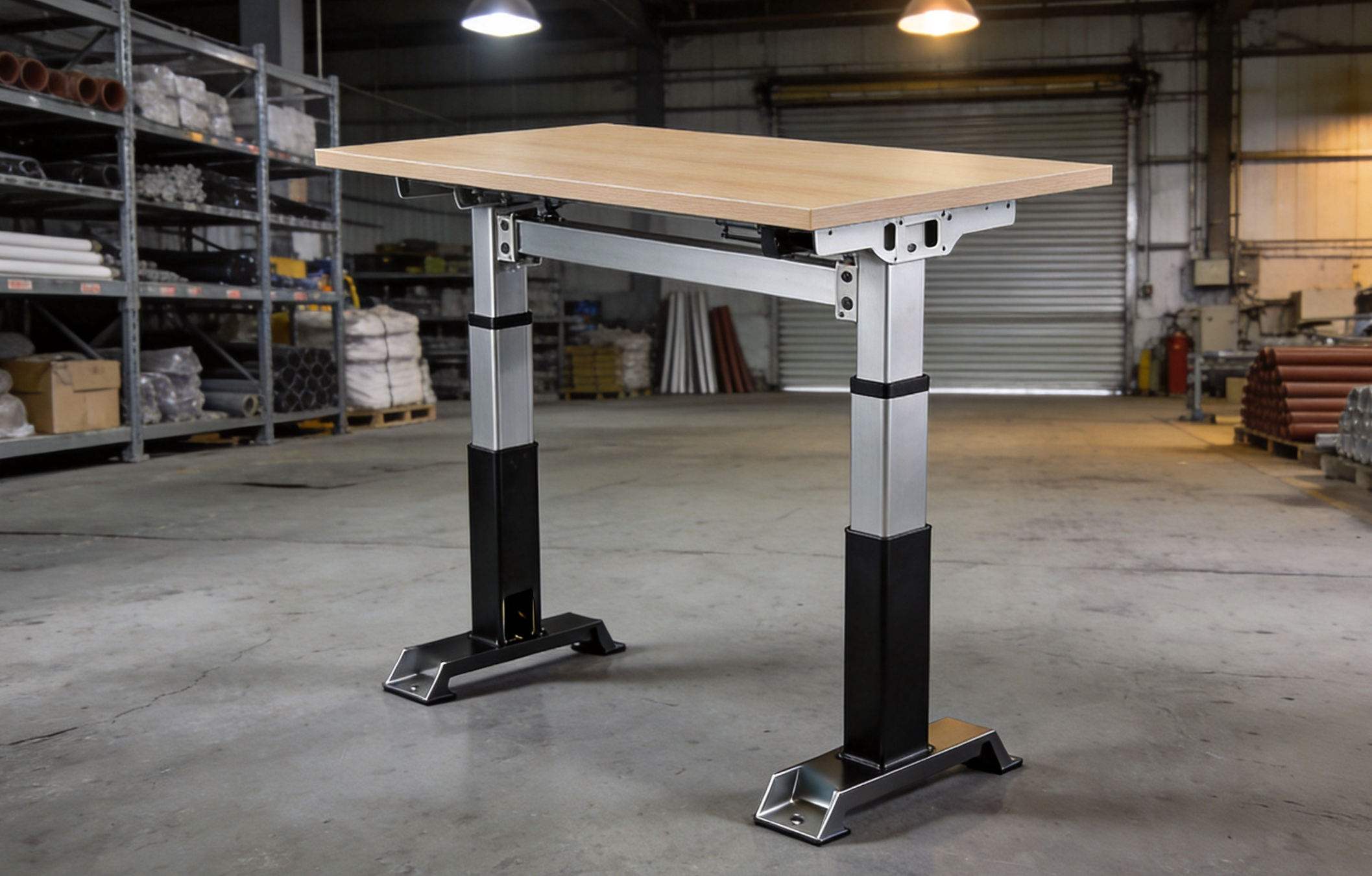

Lifting Tube Sheet Metal Fabrication Technology White Paper（3）
Table 4-1 Lifting Tube Precision Grade System
表格
Precision Item | Standard Grade | High-End Grade | Top Grade | Reference Standard |
|---|---|---|---|---|
Outer/Inner Diameter Tolerance | ±0.1mm | ±0.05mm | ±0.03mm | GB/T 1804-m class [10] |
Wall Thickness Tolerance | ±0.2mm | ±0.05mm | ±0.03mm | ISO 2768 [25] |
Straightness | ≤0.5mm/m | ≤0.3mm/m | ≤0.1mm/m | Industry common |
Roundness/Cylindricity | <0.15mm | <0.10mm | <0.05mm | — |
Coaxiality (Multi-section) | ≤0.2mm | ≤0.1mm | ≤0.05mm | — |
Length Tolerance | ±0.5mm | ±0.3mm | ±0.1mm | — |
Contact Surface Roughness | Ra ≤ 1.6μm | Ra ≤ 0.6μm | Ra ≤ 0.4μm | ISO 1302 [12] |
Non-contact Surface Roughness | Ra ≤ 3.2μm | Ra ≤ 1.6μm | Ra ≤ 0.8μm | ISO 1302 [12] |
Table 4-2 Precision Defect and User Experience Impact Matrix
表格
Precision Defect | User Experience Impact | Severity Level | Root Cause Analysis |
|---|---|---|---|
Clearance too large (>0.15mm) | Wobbling during lifting, desktop shaking | ★★★ | Uneven tube wall thickness / insufficient cold drawing precision |
Clearance too small (<0.05mm) | Jamming, abnormal noise, motor overload | ★★★ | Tube outer diameter too large / coating too thick |
Poor straightness | Lifting deviation, inner/outer tube scraping | ★★★ | Cold drawing die wear / transport deformation |
Uneven wall thickness | Uneven stress, deformation, fracture risk | ★★★★ | Tube blank manufacturing process issue |
Rough surface | High friction resistance, noise, rapid friction pad wear | ★★ | Insufficient cold drawing finish |
Poor coaxiality | Multi-section拼接 abnormal noise, wobbling | ★★ | Cumulative tolerance of multi-section tubes |
Table 4-3 Inspection Items and Methods
表格
Inspection Item | Inspection Equipment | Sampling Ratio | Acceptance Criteria |
|---|---|---|---|
Dimensional Tolerance | Coordinate Measuring Machine (CMM) | ≥5% | Key parts ±0.1mm |
Straightness | Laser rangefinder / Platform + feeler gauge | 100% (key parts) | ≤0.3mm/m |
Surface Roughness | Roughness tester | Sampling | Ra ≤ 0.6μm (contact surface) |
Coating Thickness | Coating thickness gauge (magnetic/eddy current) | 100% | 60-120μm |
Coating Adhesion | Cross-cut tester + tape method | Per batch | GB/T 9286 Grade 0 [15] |
Salt Spray Corrosion Resistance | Salt spray test chamber | Type test | ≥1000h no blistering |
Lifting Durability | Dedicated lift test stand | Type test | ≥10000 cycles (QB/T 5271 |
Lifting Noise | Sound level meter | Sampling | ≤50dB |
SPC (Statistical Process Control) should be implemented for key processes in lifting tube sheet metal fabrication:
Table 4-4 SPC Monitoring Key Parameters
表格
Process | Monitoring Parameter | Control Chart Type | Cpk Target | Warning Threshold |
|---|---|---|---|---|
Laser Cutting | Cutting length deviation | X̄-R Chart | ≥1.33 | Cpk<1.33 |
CNC Bending | Bending angle deviation | X̄-R Chart | ≥1.33 | Angle deviation > ±0.5° |
Welding | Weld width | X̄-s Chart | ≥1.33 | Weld width > design value ±0.5mm |
Coating | Coating thickness | X̄-R Chart | ≥1.33 | Film thickness <60μm or >120μm |
Coating | Color difference ΔE | Individual Chart | ≥1.33 | ΔE>1.0 |
Cpk (Process Capability Index): Cpk ≥ 1.33 indicates sufficient process capability, with a non-conformance rate < 63 ppm; Cpk ≥ 1.67 indicates excessive process capability, with a non-conformance rate < 0.57 ppm. Cpk < 1.00 indicates insufficient process capability, requiring immediate shutdown for adjustment [27].
Table 5-1 Domestic Standards Related to Lifting Tubes
表格
Standard No. | Standard Name | Scope | Core Requirements |
|---|---|---|---|
QB/T 5271-2018 [26] | Electric Lifting Desk | Lifting desk complete unit | The standard specifies 13 tests: (1) Desktop horizontal deviation ≤0.5°; (2) Column verticality ≤1mm/m; (3) Maximum static load ≥100kg; (4) Single-sided load (1.2× rated) displacement ≤3mm; (5) Anti-collision retraction (stop within 1s + retract ≥10mm); (6) Lifting mechanism durability (10,000 cycles, noise ≤60dB, speed deviation ≤±10%); (7) Harmful substances (formaldehyde ≤0.124mg/m³, heavy metal lead ≤90mg/kg); (8) Motor temperature rise ≤40K (30 min continuous operation); (9) Overload protection (power off at 120% current); (10) Signal abnormality protection (stop within 0.5s); (11) Lifting speed 28-40mm/s; (12) Noise ≤50dB; (13) Stroke synchronization (dual column difference <2mm) |
| GB/T 3325-2017 [28] | General Technical Conditions for Metal Furniture | Metal furniture | The standard specifies: Appearance — weld joints shall have no detachment, lack of fusion, burn-through, or misalignment; riveted joints shall be firm; stamped parts shall have no delamination or cracks; coating shall have no missed areas or rust; parts contacting the human body or storing items shall have no burrs, sharp edges, or corners. Mechanical properties — all parts or connections shall not be damaged by fracture; fastening parts shall not loosen; movable parts shall move flexibly; empty shelves shall not fall off; shelf bending deflection change value ≤0.5%. Metal spray coating adhesion shall not be lower than Grade 1 (GB/T 9286), hardness ≥2H, corrosion resistance ≥100h qualified. |
| GB/T 6728-2017 [7] | Cold-formed steel hollow sections | Cold-formed steel sections | The standard specifies: Applicable to round, square, and rectangular cold-formed hollow sections produced from cold-rolled or hot-rolled steel sheets on continuous roll-forming machines; wall thickness deviation: ≤10mm ±10%, >10mm ±8%; bending ≤0.15% of total length; end slope ≤2-6mm; galvanized coating total weight ≥200g/m²; no open welds, overlap welds, burn-through, or misalignment at welds; delivered in cold-formed condition, usual length 4-12m. |
| HG/T 21629 [29] | Pipe Support and Hanger Standard | Pipe supports and hangers | The standard specifies full range of pipe support categories and technical conditions: Variable spring hangers (select when vertical thermal displacement ≤40mm, load variation rate ≤25%, divided into A/B/C/D/E five structural types); Constant spring hangers (select for thermal displacement >40mm or high-demand pipelines, load variation rate ≤6%); New adjustable pipe support H type (H1/H2/H3, composed of base plate, center positioning plate, support tube, etc.); Cold insulation pipe support L type (high-density PIR/PUF material ≥500kg/m³, exposed surface coated with anti-moisture mastic); High-temperature insulation pipe support T type; Hydraulic damper S type. |
| GB/T 37267-2018 [30] | General Technical Conditions for Seismic Supports for Building Mechanical and Electrical Equipment | Seismic supports | The standard specifies: Applicable for seismic intensity 6-9 degree areas; appearance — surface smooth and clean, no rust, folding, cracks, or delamination; dimensional tolerances conform to GB/T 1804-2000 medium m class; plate thickness ≥5mm, seismic brace channel thickness ≥2mm; coating thickness: galvanized ≥5μm, hot-dip galvanized ≥60μm, zinc-chromium coating ≥8μm, epoxy spray ≥70μm; seismic connection component load performance: no obvious deformation under rated load for 1 min, no slipping under 1.5× rated load; cyclic loading: 15 cycles at same load, then incremental load ≥35 cycles, displacement ≤50mm; fatigue performance: no cracks, deformation, or detachment after 2 million fatigue cycles; corrosion resistance: no red rust after neutral salt spray; fire resistance: ≥180 min. |
| GB 50981-2014 [31] | Code for Seismic Design of Mechanical and Electrical Equipment in Buildings | Seismic design | The standard specifies: Seismic fortification intensity 6-9 degrees for building mechanical and electrical engineering facilities; water supply and drainage, HVAC, electrical, gas, and fire protection systems all require seismic support protection; seismic verification shall use the equivalent lateral force method, horizontal seismic action standard value F=γηαmaxG; seismic support spacing for pipes: lateral spacing ≤12m, longitudinal spacing ≤24m; non-structural components shall meet the ultimate limit state for seismic verification. |
| GA/T 1343-2016 [32] | Anti-ram Rising Bollards | Rising bollards | The standard specifies collision energy levels (Table 1): A level 1679kJ (6800kg vehicle at 80km/h), B level 1108kJ (6800kg at 65km/h), C level 887kJ (2300kg at 100km/h), D level 579kJ (1500kg at 100km/h), E level 245kJ (1500kg at 65km/h); Intrusion distance levels (Table 2): Level 1 ≤1m, Level 2 1.01-7m, Level 3 7.01-30m; Blocking capability grade is a combination of collision energy code + intrusion distance code; after real vehicle crash test, the vehicle shall lose the ability to continue driving, and the bollard shall maintain its blocking state; rising speed ≥150mm/s; no leakage and normal lifting when submerged; corrosion resistance ≥Grade 9 after salt spray test; environmental adaptability -40℃ to 75℃ normal operation. |
Table 5-2 International Standards Related to Lifting Tubes
表格
Standard | Applicable Market | Core Requirements |
|---|---|---|
EN 527-2:2016+A1:2019 [33] | EU | Safety requirements — all accessible edges deburred and chamfered ≥1mm×1mm or rounded radius ≥2mm, tube ends capped; Shear/pinch points — closure gap between moving parts of electric mechanism shall not be <7mm; Stability — 750N load at highest position without tipping, 400N load on extension; Strength and durability — height adjustment durability 5000 cycles, horizontal durability 10000 cycles (450N), vertical durability 10000 cycles (400N), stiffness value D/D1 divided by desk height ≤17mm/m. |
BIFMA X5.5 [34] | USA | Stability tests — with drawers open/vertical load/with casters horizontal/high desk force stability; Strength tests — concentrated load functional/verification, distributed load functional/verification, shelf torsion load, drawer static load, multi-desk connected desk distributed load and stability; Fatigue tests — desktop fatigue 10000 cycles, drawer fatigue 50000 cycles, drawer external stop 15000 cycles, keyboard tray 2500 cycles; Drop test — 3 drop heights based on weight; Desktop height adjustment mechanism test; Door strength and hinge test; Lock test. |
ASTM F1858 [35] | USA | Lifting desk cycle life test, lifting cycles ≥5000, displacement deviation <2mm; test conducted under rated load, recording maximum displacement deviation for each cycle; evaluate structural integrity after testing — no cracks, no deformation, no loose connections. |
ISO 24496:2020 [36] | International | Office desk static load test method, specifying static loading positions, loading forces, holding time, and acceptance criteria; applicable for strength and stiffness testing of both height-adjustable and fixed desks. |
IATF 16949 [37] | Automotive grade | Automotive quality management system requirements based on ISO 9001 with additional automotive-specific requirements; Process approach — use of process turtle diagrams, process relationship analysis; Risk analysis — FMEA (DFMEA/PFMEA); Poka-yoke — eliminate human error through design/manufacturing/inspection; Supply chain management — tier 2 supplier management requirements; Production Part Approval Process — PPAP; Measurement System Analysis — MSA (GR&R ≤10%); Statistical Process Control — SPC (Cpk ≥1.33, PPK ≥1.67). |
ISO 12944 [38] | International | Corrosion protection coating systems: Corrosion environment classification C1-C5, CX; Durability levels M (medium 7-15 years)/H (high 15-25 years)/VH (very high ≥25 years); Surface preparation — abrasive blasting to Sa2.5; Coating system selected by corrosion environment + durability level combination; Immersion environments Im1 fresh water/Im2 seawater/Im3 soil. |
ISO 5817 [39] | International | Welding joint quality levels: B/C/D (B highest); Defect types assessed — cracks (not allowed in B level), porosity (size limits), solid inclusions (length/depth limits), lack of fusion and incomplete penetration (not allowed in B level), shape defects (undercut depth ≤0.5mm B level/≤1mm C level), spatter (not allowed in B level); Assessment range — fusion welded joints in metallic materials thickness ≥0.5mm. |
Table 5-3 EN 527-2:2016 Key Test Requirements
表格
Test Item | Requirement | Test Method |
|---|---|---|
Stability | 750N load at highest position without tipping | Vertical load 50mm from edge |
Height Adjustment Durability | Mechanical performance intact after 5000 lifts | 25% load 20kg eccentric + 75% center load |
Desktop Static Load | 1.25× nominal load for 24h | Center loading |
Edges and Corners | Corner radius ≥2mm or chamfer ≥1mm | Measurement |
Tube End Caps | All tubular components end capped | Visual inspection |
Table 5-4 Comparison of Domestic and International Standards
表格
Dimension | QB/T 5271 (China) | EN 527 (EU) | BIFMA X5.5 (USA) |
|---|---|---|---|
Lifting Durability | 10,000 cycles | 5,000 cycles | 5,000 cycles |
Static Load | ≥100kg | 1.25× nominal | Per nominal load |
Noise Requirement | ≤50dB | — | — |
Harmful Substances | Formaldehyde/Heavy metals | REACH/RoHS | CARB/EPA |
Anti-collision Retraction | Retract ≥10mm | — | — |
Standard Difference Explanation: China's QB/T 5271 has higher requirements for lifting durability (10,000 cycles) than the EU's EN 527 (5,000 cycles) and additionally requires anti-collision retraction and stroke synchronization, reflecting the emphasis on safety in Chinese standards. Exporting overseas requires compliance with the target market's standards simultaneously [40].
Upstream: Metal Materials (SPCC/SGCC/SECC cold-rolled steel sheets + Cold-drawn tube blank profiles)
↓ Baosteel/Angang (sheets); Hebei Bazhou/Jiangsu Wuxi (tube blank profiles)
Midstream: Sheet Metal Processing + Welding + Surface Treatment
↓ Dingyi Industrial / Fumei Technology / AOKE / Huagang Intelligent, etc.
Downstream: System Integration + Final Assembly + Brand Sales
Jiechang Drive / Kaidi / Loctek (Lifting desks)
Sinopec / CNPC Engineering (Pipe supports)
ARJO / Yuyue Medical / Zhongjiangfu (Medical equipment)
