Sheet Metal Tolerance Standards: What OEMs & Engineers Need to Know
Introduction
Tolerances are the language of manufacturing capability. When an engineering drawing specifies a dimension with a tolerance, it tells the manufacturer exactly what is acceptable — and what is not. In sheet metal fabrication, tolerances are influenced by material properties, process capabilities, and the cumulative effect of multiple operations. This guide explains the tolerance standards we work to at DINGPRECISION and provides practical guidance for specifying achievable tolerances on your sheet metal designs.
Tolerance Standards We Follow
DINGPRECISION manufactures to internationally recognized tolerance standards, selectable based on customer requirements and target market:
Standard | Scope | Region |
GB/T 1804-m | General tolerances for linear/angular dimensions | China (domestic) |
GB/T 15055-m | Tolerances for stamping parts | China (domestic) |
ISO 2768-m | General tolerances (ISO equivalent to GB/T 1804) | International |
ISO 13920-BF | Tolerances for welded structures | International |
Laser Cutting Tolerances
Laser cutting is the highest-precision operation in sheet metal fabrication. Our achieved tolerances:
Material Thickness | Linear Dimension Tolerance | Hole Diameter Tolerance | Position Tolerance |
0.5–1.0 mm | ±0.05 mm | ±0.05 mm | ±0.10 mm |
1.0–3.0 mm | ±0.10 mm | ±0.10 mm | ±0.15 mm |
3.0–6.0 mm | ±0.15 mm | ±0.15 mm | ±0.20 mm |
6.0–12 mm | ±0.20 mm | ±0.20 mm | ±0.30 mm |
12–25 mm | ±0.30 mm | ±0.30 mm | ±0.50 mm |
Factors Affecting Laser Cutting Tolerance
Material flatness: Wavy or distorted sheet cannot be held flat on the cutting table, compromising accuracy
Thermal distortion: Thick materials (≥10mm) may distort from cutting heat; our nesting software manages heat distribution
Ker width: The laser beam itself removes ~0.3 mm of material — toolpath compensation is automatic in our CAM system

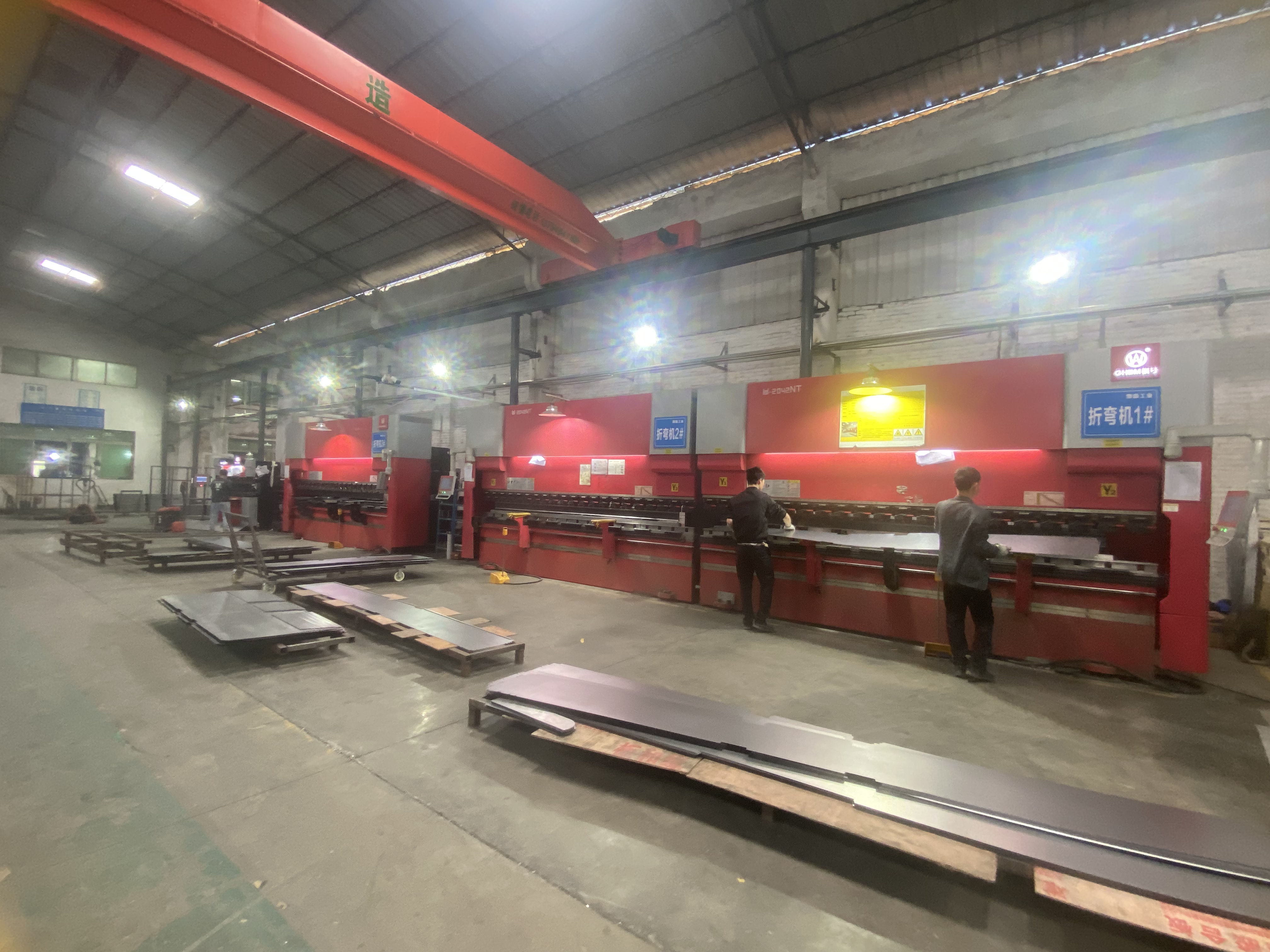

CNC Bending Tolerances
Bending introduces more variables than cutting. Springback, material property variation, and tooling setup all influence the final angle and dimension.
Parameter | Standard Tolerance | Precision Tolerance (on request) |
Bend angle | ±1.0° | ±0.5° |
Bend-to-bend distance | ±0.30 mm | ±0.15 mm |
Bend-to-edge distance | ±0.50 mm | ±0.30 mm |
Flange length | ±0.50 mm | ±0.30 mm |
Overall formed dimension (≤500mm) | ±0.50 mm | ±0.30 mm |
Overall formed dimension (500–2000mm) | ±1.00 mm | ±0.50 mm |
Bend Radius Guidelines
The minimum achievable bend radius depends on material type and thickness:
Material | Minimum Inside Radius (as % of thickness) | Recommended Inside Radius |
SPCC | 0.5T | 1.0T |
SUS304 | 1.0T | 1.5T |
SUS316 | 1.0T | 1.5T |
AL5052-O | 0.5T | 1.0T |
AL6061-T6 | 2.0T | 3.0T |
Design Rule:: Always specify the inside bend radius as equal to or greater than the material thickness unless tighter radii are functionally necessary. This reduces tooling cost, improves consistency, and minimizes cracking risk.
Stamping Tolerances
Stamping tolerances depend on the die type and maintenance condition:
Feature | Progressive Die | Single-Hit Die |
Hole diameter | ±0.05 mm | ±0.10 mm |
Hole-to-hole distance | ±0.10 mm | ±0.20 mm |
Hole-to-edge distance | ±0.15 mm | ±0.30 mm |
Overall blank dimension | ±0.15 mm | ±0.30 mm |
Burr height (steel) | ≤0.10 mm | ≤0.15 mm |
Welding Tolerances
Welded assemblies accumulate the tolerances of individual components plus welding distortion:
Assembly Dimension | Tolerance (ISO 13920-BF) |
0–500 mm | ±1.0 mm |
500–1,000 mm | ±1.5 mm |
1,000–2,000 mm | ±2.0 mm |
2,000–4,000 mm | ±3.0 mm |
Angular (per 400mm) | ±1.0° |
Design for Manufacturability (DFM) Tips
1. Avoid Unnecessarily Tight Tolerances
Specifying ±0.05 mm on a non-functional cosmetic surface adds cost without adding value. Ask: "Does this tolerance affect fit, function, or safety?" If not, relax it to standard levels.
2. Consider the Tolerance Stack
A part that goes through laser cutting, bending, welding, and coating accumulates tolerances from each step. Design your assembly to accommodate this cumulative variation.
3. Provide Datum References
Always indicate datum features (A, B, C) on your drawing. Without clear datums, the manufacturer cannot establish a consistent measurement reference.
4. Specify Surface Finish Requirements
Indicate which surfaces are cosmetic (visible to end user), which are functional (mating surfaces), and which are hidden. This allows us to focus quality resources where they matter.
5. Use Symmetric Tolerances When Possible
±0.20 mm is easier to manufacture and inspect than +0.30/-0.10 mm with the same total tolerance band.
How to Specify Tolerances on Your Drawing
We recommend one of two approaches:
Option A — Standard Reference (preferred for most parts)::
GENERAL TOLERANCES: ISO 2768-m
Add specific tolerances only for critical features.
Option B — Critical Feature Callout::
HOLE Ø10.0 ±0.05 (datum A-B)
ALL OTHER: ISO 2768-m
Conclusion
Understanding tolerance standards helps you design parts that are both functional and economical to manufacture. At DINGPRECISION, we work with customers to optimize tolerance specifications — ensuring parts meet functional requirements without unnecessary cost.
Have a drawing to review?: [Submit for DFM analysis →](/quote)
FAQ
Q: What is the standard tolerance for laser-cut sheet metal parts?:
A: For materials 1.0–3.0 mm thick, our standard linear tolerance is ±0.10 mm. For thinner materials (0.5–1.0 mm), ±0.05 mm is achievable.
Q: What tolerance standard do you follow — ISO or GB?:
A: We manufacture to both, selectable by customer requirement. ISO 2768-m is our default standard for international customers; GB/T 1804-m is the equivalent Chinese national standard used for domestic projects.
Q: How do you handle tolerance accumulation in welded assemblies?:
A: We use welding fixtures to maintain component positions during welding and apply ISO 13920-BF as the reference standard for welded structure tolerances. For critical assemblies, we recommend designing with slotted holes or adjustment features to accommodate weld distortion.
Q: Can you hold tighter tolerances than your standard if needed?:
A: Yes. For critical features (bearing bores, datum surfaces, sealing faces), we can achieve tighter tolerances with additional process steps such as post-weld machining or selective assembly. These requirements should be clearly indicated on the drawing.
